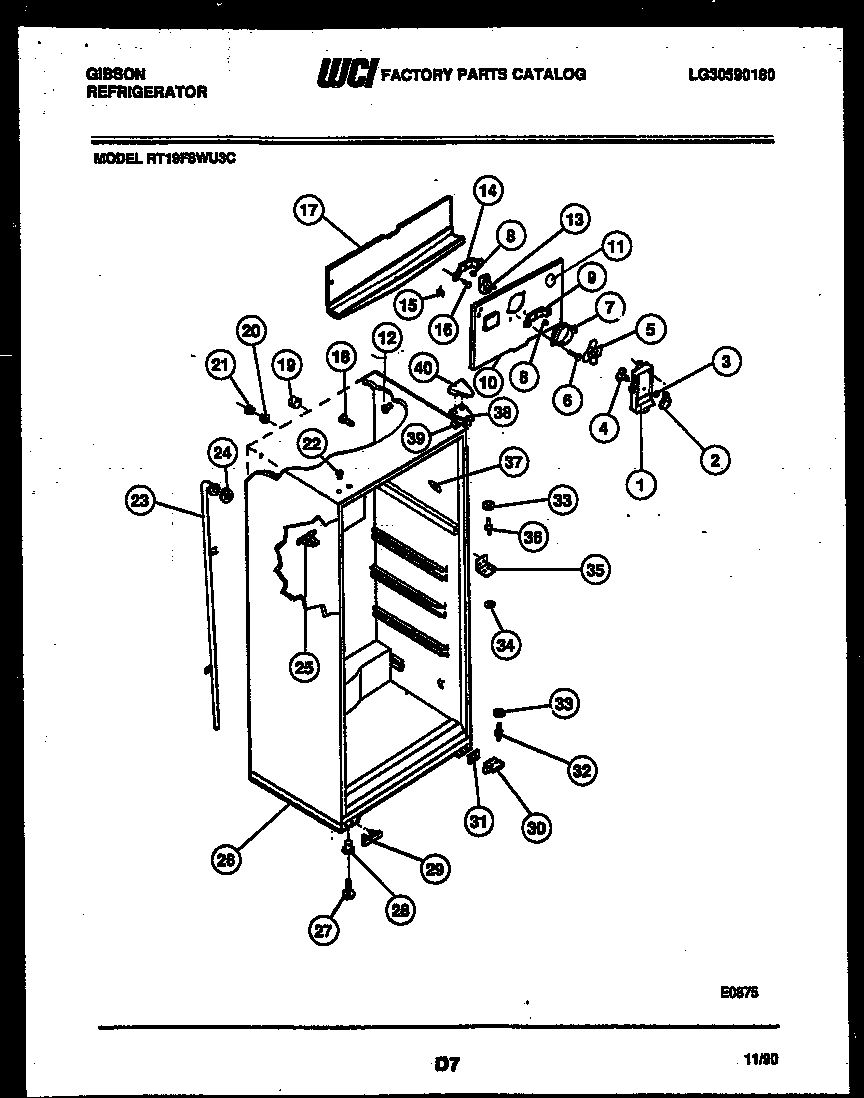

RT19F8WU3C 03 – CABINET PARTS

Products

PositionProduct
*23233PLUG, BUTTON, CABINET LINER (NI)
1WCI G163061-81
2WCI 5308000081
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
65304455650 Frigidaire Refrigerator Screw
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10WCI 5308009771
115303208309 Frigidaire Refrigerator Plug Hole
12A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
125304509705 Frigidaire Refrigerator Grommet
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
17WCI 5303001470
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22BUTTON-HINGE-WHEAT
22BUTTON-HINGE-AVOCADO
22PLUG, COFFEE
22PLUG-BUTTON, WHITE
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23WCI 5303210377
23A5304455651 Frigidaire Refrigerator Screw
24WCI 5303207353
25AWCI 5303001361
25WCI 5308000056
26CABINET BASE
27SCREW-LEVELING (4)
28WCI 5308003584
29COVER-HOLE, LOWER HINGE
30A241710601 Frigidaire Refrigerator Screw
30HINGE BRACKET – BOTTOM
31SHIM-LOWER HINGE
31ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
325303001321 Frigidaire Refrigerator Lower Hinge Pin
33WASHER, .34 X .62 X .05, NYLON
34WCI 5308000186
35BRACKET-CTR HINGE
35AWCI 5308012258
35BWASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
36WCI 5308000184
37WCI 5303202339
37CORNER
37TRIM-CABINET CORNER, ALMOND
37WCI 5303202338
37TRIM-CABINET CORNER, WHITE
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
40WCI 5303001666
40COVER-HINGE-AVOCADO
40COVER-UPPER HINGE, WHITE
40COVER-UPPER HINGE, ALMOND
40COVER – HINGE-WHEAT
