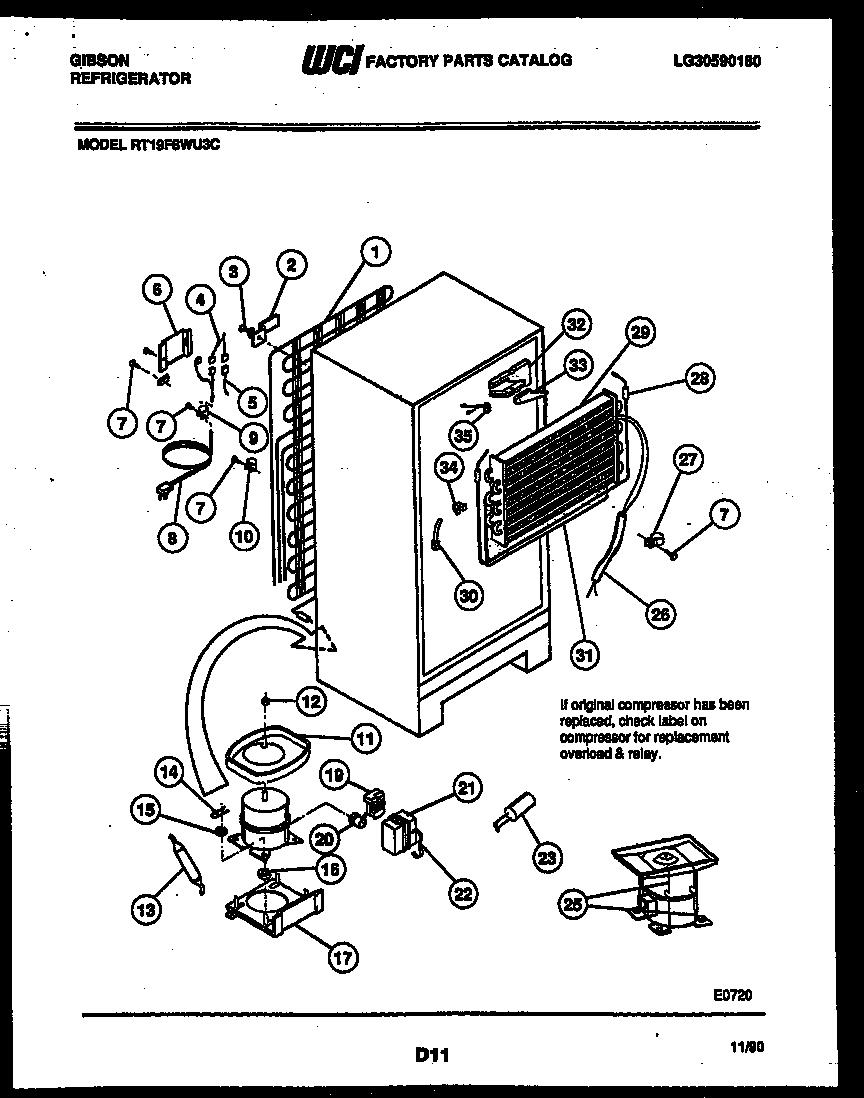

RT19F8WU3C 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*232535303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*23252HOT TUBE REPAIR KIT-SERVICE
1WCI 5300163133
2BRACKET-MTG (4)
35308000039 Frigidaire Refrigerator Screw
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5WIRING HARNESS, COMPRESSOR,
6WCI 5303001197
75304455651 Frigidaire Refrigerator Screw
8CORD-ELECTRIC POWER
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
10CLAMP-CABLE
11PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12Nut,lock `1/4-20 ,drain pan mtg
135303305677 Frigidaire Replacement Filter Dryer Filters
14CLIP – COMPRESSOR MTG
15WASHER-COMPR MTG
16218513300 Frigidaire Refrigerator Compressor Mount Grommet
17WCI 5308013663
18COMPRESSOR W/ ELEC
19RELAY-TL
20WCI 5303001713
225303006412 Frigidaire Refrigerator Cover Mounting Strap
23CAPACITOR
25PAN RETAINER KIT, SERVICE
26WCI 5308000728
275308000133 Frigidaire Refrigerator Clamp
285317842502 Frigidaire Defrost Heater
29WCI 5300162506
305308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
31INSULATOR-EVAP, PLASTIC
32INSULATION BLOCK, RH
33INSULATION PLUG, RH
34INSULATION BLOCK, LH
355303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
