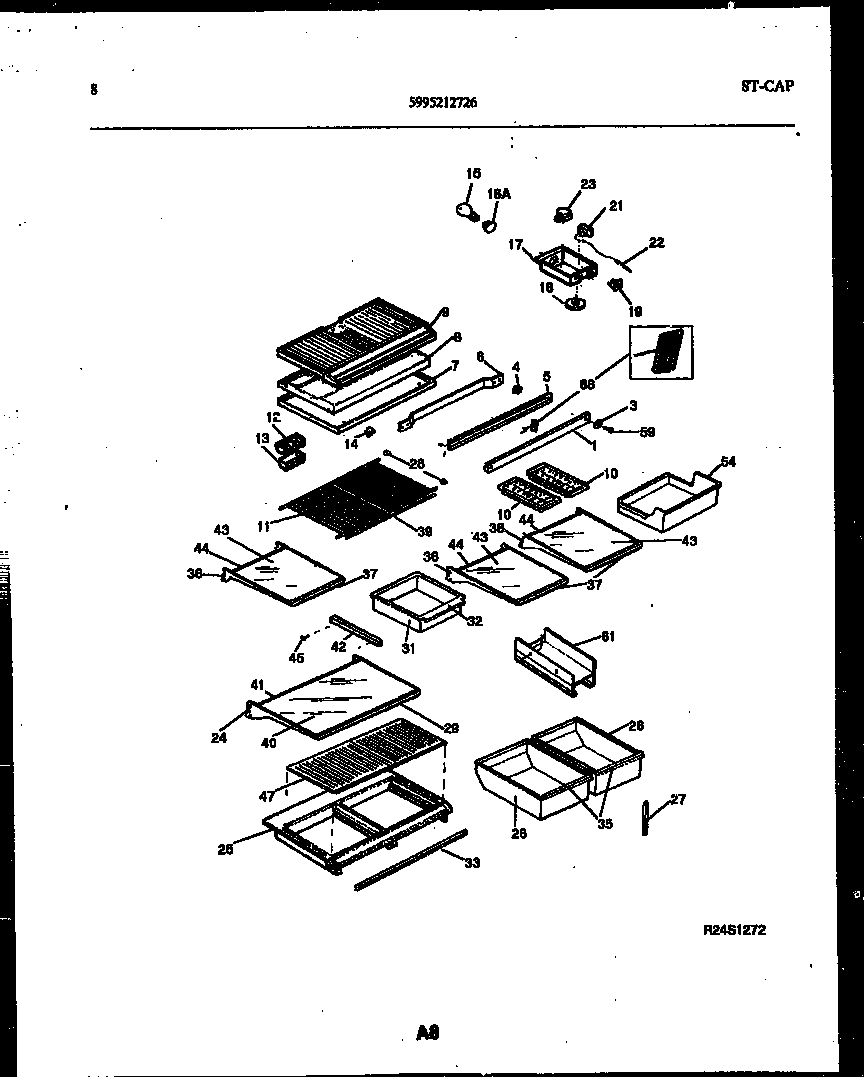

RT19F9DX3B 05 – SHELVES AND SUPPORTS

RT19F9DX3B 05 – SHELVES AND SUPPORTS

Written by

in

RT19F9DX3B 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303211922
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8DIVIDER-FOAM
8AWCI 5303211926
9A3205266 Frigidaire Refrigerator Edge Protector
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303209597
12DEFLECTRO, AIR, W/SEAL
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
17A5304455650 Frigidaire Refrigerator Screw
18WCI 5303209251
19WCI 5303207249
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 5303276776
24ACLIP-CANTILEVER SHLF
25WCI 5303279634
25AWCI 5303279636
26AWCI 5303279635
26WCI 5303275274
26WCI 5303274981
27WCI 5303206505
28END CAP-SHELF,PROTECTOR
29TRIM-FRZR SHELF
31WCI 5303279511
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
35WCI 5303274986
35WCI 5303274987
36WCI 5303279431
37WCI 5303279765
39WCI 5303279767
40AWCI 5303209274
40SHELF-GLASS, FULL SHELF
41ALOCK-SHELF TRIM, REAR
41TRIM-FULL SHELF, REAR
42WCI 5303279817
42AWCI 5303279816
43ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
43SHELF-GLASS, HALF SHELF, (3)
44WCI 5303279768
45WCI 08014528
47WCI 5303279700
545303212918 Frigidaire Refrigerator Cont
59WCI 5308012258
61WCI 5318609501
68WCI 5303211924
44178WCI 5303279879
44178WCI 5303211925
