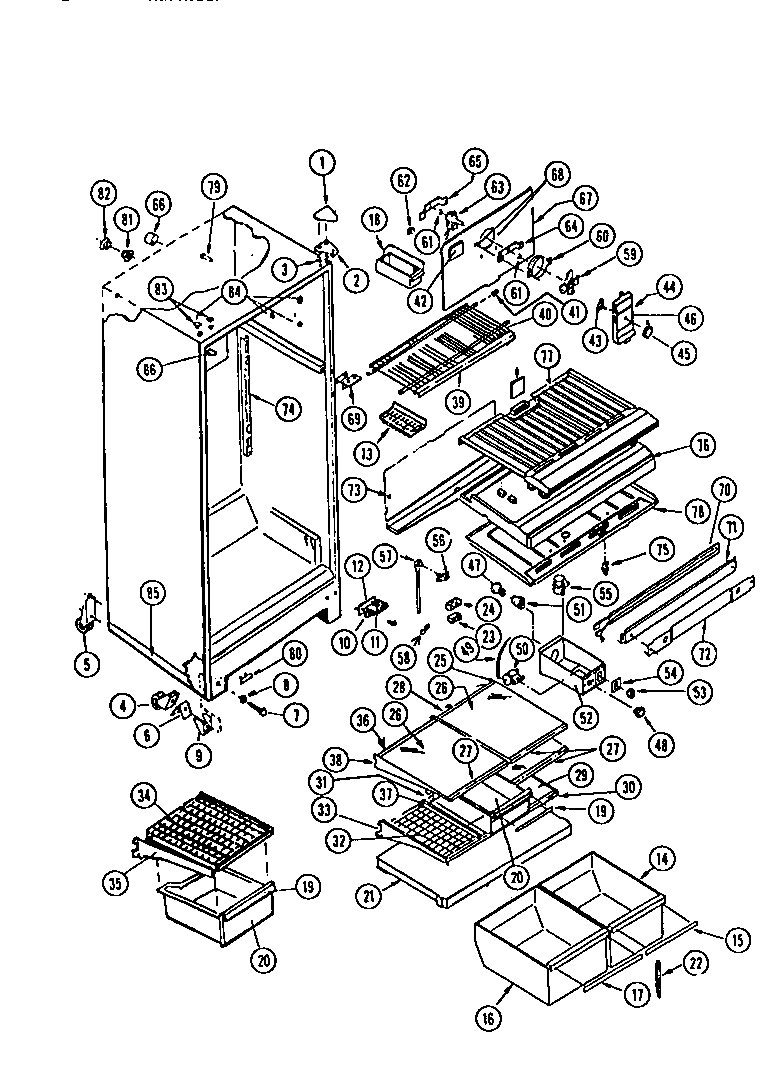

RT19F9EU3A 04 – CABINET, SHELVES

Products

PositionProduct
1COVER HINGE, COFFEE
2BRACKET, TOP HINGE
3CWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
3A241710601 Frigidaire Refrigerator Screw
3WCI G183861
3BWCI G103903
4ROLLER FRONT, ADJUSTABLE (2)
5BBOLT ROLLER (2)
5ROLLER, REAR (2)
5A5308000039 Frigidaire Refrigerator Screw
6SPRING-ROLLER (2)
7BOLT-ROLLER (2)
8WASHER
9SUPPORT, ROLLER (2)
10BRACKET, HINGE, LOWER
115303001321 Frigidaire Refrigerator Lower Hinge Pin
12SHIM, HINGE
13WCI G153376-13
14WCI G176639-29
15WCI G177343-18
16WCI G490015-49
17WCI G3201093
18WCI G163022-03
19WCI G177343-19
20WCI G187181-02
21COVER, CRISPER
21AGASKET, COVER
22SUPPORT, CRISPER COVER
23WCI G162178
24DEFLECTOR AIR
25WCI G171608-14
26WCI G171654-51
27TRIM (3)
28TRIM, SHELF, REAR (3)
29WCI G171654-54
30TRIM
31WCI G172436-19
32WCI G186661-02
33WCI G186665-02
34WCI G187195-01
35WCI G187213-03
35ARAIL-STRAIGHT (NON-ILLUSTRATED)
39TRIM
40SHELF
41WCI G166495-01
42BUTTON-DECORATIVE
43DAMPER FAN COVER
43ANUT, DAMPER MOUNTING
44WCI G163061-76
44A5304455650 Frigidaire Refrigerator Screw
45KNOB
46LABEL, COVER
47316538904 Frigidaire Oven Lamp Light
48KNOB
49TUBE
50AWCI G107080
50COLD CONTROL
51SOCKET LIGHT
52WCI G176722-03
53WCI G178402-02
54WCI G188379-02
55A5304455649 Frigidaire Refrigerator Screw
55215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
56SPOUT DRAIN TUBE
56APIN PUSH SPOUT (2)
57ARING, SEAL (NON-ILLUSTRATED)
57TUBE, DRAIN
58WCI G101747
595308000010 Frigidaire Refrigerator Evaporator Fan Blade
60RING, FAN ORIFICE
61G187559 Frigidaire Refrigerator Bushing
62WCI G164571
635300158289 Frigidaire Evaporator Fan Motor
64WCI G185302
65WCI G185303
66TUBE, INSULATION (2)
67WCI G177529
68NUT, ORIFICE (2)
69DSPACER, MULLION (2)
69BWASHER (2)
69AWCI G142220
69CBRACKET, HINGE CENTER
70WCI G177254
71WCI G180373-10
72STRAP, MULLION MOUNTING
73WCI G177534
74DSCREW (3) (NON-ILLUSTRATED)
74CSPACER, FREEZER (2)
74A5304455852 Frigidaire Refrigerator Screw
74CHANNEL, SHELF (2)
74BCHANNEL, CENTER SHELF, MOUNTING
755309918806 Frigidaire Refrigerator Light Switch Door
76DIVIDER, CENTER
77BOTTOM, FC
78TOP, PC
78ASCREW (5)
79WCI G163669
80WCI G166912
81WCI G174733
82WCI G174734
83WCI G174747-10
84A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
845304509705 Frigidaire Refrigerator Grommet
85WCI G490004-02
86CBUTTON, LINER
86AHARNESS, WIRING
86WCI G179684-10
86BBUTTON, PLUG, LINER (2)
