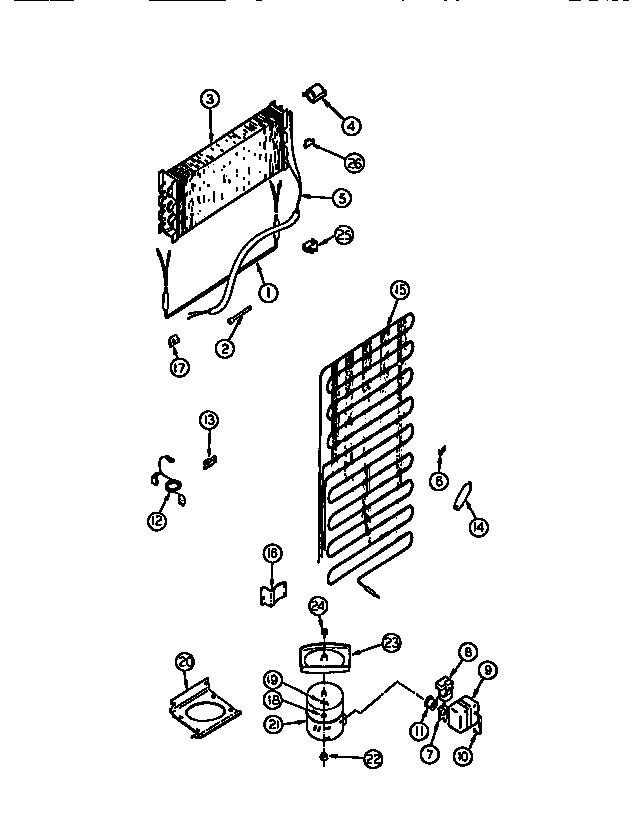

RT19F9WT3A 11 – SYSTEM & AUTOMATIC DEFROST PARTS

Products

PositionProduct
*24055WCI G176210
15317842502 Frigidaire Defrost Heater
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5HEAT EXCHANGER
6A5308000039 Frigidaire Refrigerator Screw
6WCI G101747
7CLIP, OVERLOAD
8WCI G150618-32
105303006412 Frigidaire Refrigerator Cover Mounting Strap
11OVERLOAD
12CORD, SERVICE
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
14BWASHER
145303305677 Frigidaire Replacement Filter Dryer Filters
14A5304455651 Frigidaire Refrigerator Screw
15WCI G162739
16BRACKET-CONDENSER MOUNTING (4)
17BLOCK, EVAPORATOR, LH
18WASHER, COMPRESSOR MOUNTING (4)
19CLIP, COMPRESSOR MOUNTING (4)
20PLATE, COMPRESSOR MOUNTING
21COMPRESSOR
22218513300 Frigidaire Refrigerator Compressor Mount Grommet
23DEFROST PAN & NUT
24NUT, LOCK
25BLOCK, EVAPORATOR, RH
26PLUG, EVAPORATOR INSULATION BLOCK, R H
