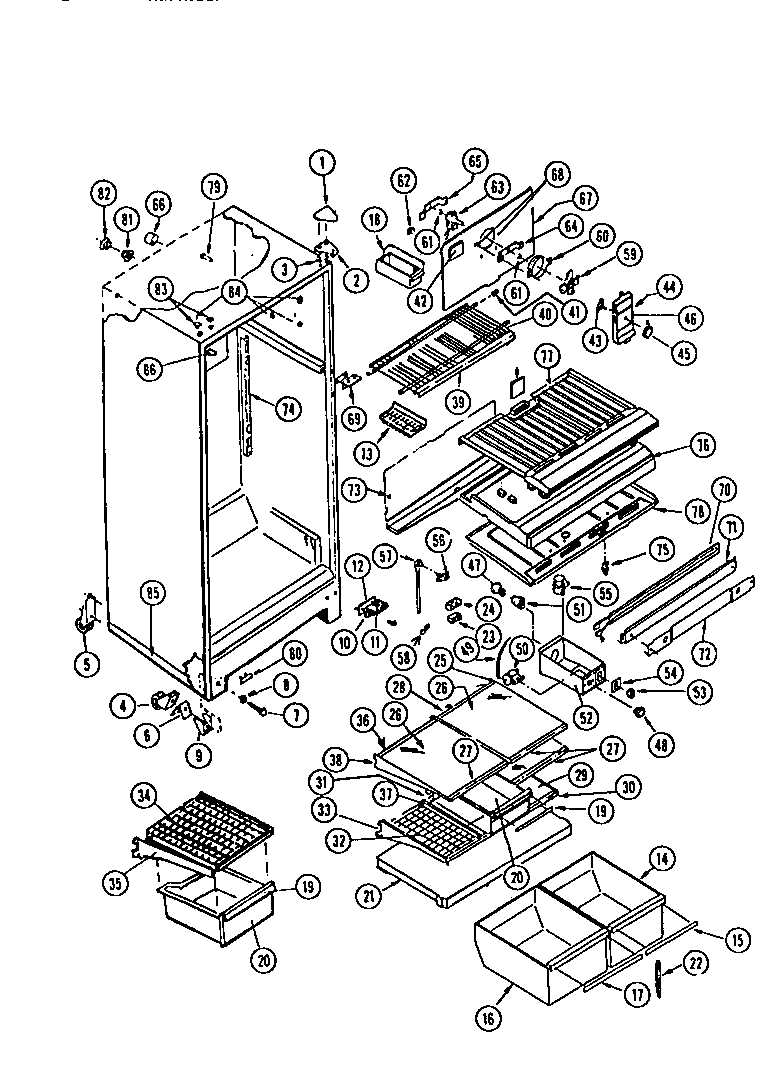

RT19F9WU3C 04 – CABINET, SHELVES

Products

Position	Product
1	COVER HINGE, WHITE
2	BRACKET, TOP HINGE
3B	WCI G103903
3	WCI G183861
3A	241710601 Frigidaire Refrigerator Screw
3C	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
4	ROLLER FRONT, ADJUSTABLE (2)
5	ROLLER, REAR (2)
5B	BOLT ROLLER (2)
5A	5308000039 Frigidaire Refrigerator Screw
6	SPRING-ROLLER (2)
7	BOLT-ROLLER (2)
8	WASHER
9	SUPPORT, ROLLER (2)
10	BRACKET, HINGE, LOWER
11	5303001321 Frigidaire Refrigerator Lower Hinge Pin
12	SHIM, HINGE
13	WCI G153376-13
14	WCI G176639-29
15	WCI G177343-18
16	WCI G490015-49
17	WCI G3201093
18	WCI G163022-03
19	WCI G177343-19
20	WCI G187181-02
21A	GASKET, COVER
21	COVER, CRISPER
22	SUPPORT, CRISPER COVER
23	WCI G162178
24	DEFLECTOR AIR
25	WCI G171608-14
26	WCI G171654-51
27	TRIM (3)
28	TRIM, SHELF, REAR (3)
29	WCI G171654-54
30	TRIM
31	WCI G172436-19
32	WCI G186661-02
33	WCI G186665-02
36	TRIM, SHELF, REAR, MEAT KEEPER
37	HANGAR, LEFT SIDE
37A	HANGAR, RIGHT SIDE
38	WCI G187218-10
39	TRIM
40	SHELF
41	WCI G166495-01
42	BUTTON-DECORATIVE
43A	NUT, DAMPER MOUNTING
43	DAMPER FAN COVER
44	WCI G163061-76
44A	5304455650 Frigidaire Refrigerator Screw
45	KNOB
46	LABEL, COVER
47	316538904 Frigidaire Oven Lamp Light
48	KNOB
49	TUBE
50A	WCI G107080
50	COLD CONTROL
51	SOCKET LIGHT
52	WCI G176722-03
53	WCI G178402-02
54	WCI G188379-02
55	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
55A	5304455649 Frigidaire Refrigerator Screw
56	SPOUT DRAIN TUBE
56A	PIN PUSH SPOUT (2)
57A	RING, SEAL (NON-ILLUSTRATED)
57	TUBE, DRAIN
58	WCI G101747
59	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
60	RING, FAN ORIFICE
61	G187559 Frigidaire Refrigerator Bushing
62	WCI G164571
63	5300158289 Frigidaire Evaporator Fan Motor
64	WCI G185302
65	WCI G185303
66	TUBE, INSULATION (2)
67	WCI G177529
68	NUT, ORIFICE (2)
69C	BRACKET, HINGE CENTER
69D	SPACER, MULLION (2)
69A	WCI G142220
69B	WASHER (2)
70	WCI G177254
71	MULLION, WHITE
72	STRAP, MULLION MOUNTING
73	WCI G177534
74D	SCREW (3) (NON-ILLUSTRATED)
74	CHANNEL, SHELF (2)
74B	CHANNEL, CENTER SHELF, MOUNTING
74A	5304455852 Frigidaire Refrigerator Screw
74C	SPACER, FREEZER (2)
75	5309918806 Frigidaire Refrigerator Light Switch Door
76	DIVIDER, CENTER
77	BOTTOM, FC
78A	SCREW (5)
78	TOP, PC
79	WCI G163669
80	WCI G166912
81	WCI G174733
82	WCI G174734
83	WCI G174747--01
84A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
84	5304509705 Frigidaire Refrigerator Grommet
85	WCI G490004-02
86A	HARNESS, WIRING
86	WCI G179684-01
86C	BUTTON, LINER
86B	BUTTON, PLUG, LINER (2)
