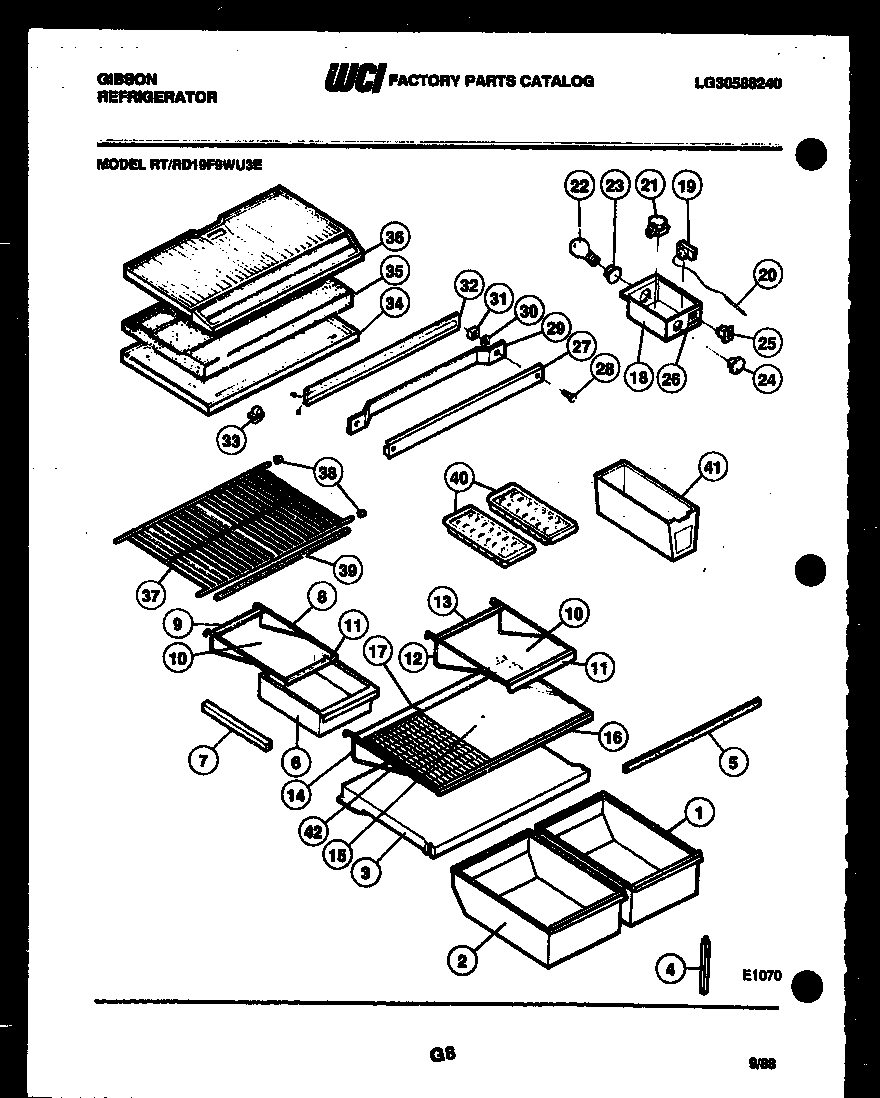

RT19F9WU3E 04 – SHELVES AND SUPPORTS

Products

Position	Product
1A	WCI G177343-18
1	WCI G176639-29
2	WCI G490015-49
2A	TRIM
3	COVER, CRISPER
4	SUPPORT, CRISPER COVER
5	GASKET, COVER
6	WCI G187181-02
6A	WCI G177343-19
7A	HANGAR, RIGHT SIDE
7	HANGAR, LEFT SIDE
7B	SCREW-HANGER (2) (NON-ILLUSTRATED)
8	WCI G187218-10
9	TRIM, SHELF, REAR, MEAT KEEPER
10	WCI G171654-51
11	TRIM (2)
12	WCI G171608-14
13	TRIM, SHELF, REAR (3)
14	WCI G186665-02
15	WCI G171654-54
16	TRIM
17	WCI G172436-19
18A	5304455650 Frigidaire Refrigerator Screw
18	WCI G176722-03
19	WCI 3200810
19A	WCI G107080
20	TUBE
21	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
21A	5304455649 Frigidaire Refrigerator Screw
22	316538904 Frigidaire Oven Lamp Light
23	SOCKET LIGHT
24	KNOB
25	WCI G178402-02
26	WCI G188379-02
27	WCI G180373-10
27	WCI G180373-09
27	MULLION, WHITE
27	WCI G180373-08
27	WCI G180373-11
28	SCREW, BRACKET MOUNTING (4)
29	STRAP, MULLION MOUNTING
30	WASHER (2)
31	SPACER, MULLION (2)
32	WCI G168722
33	5309918806 Frigidaire Refrigerator Light Switch Door
34	TOP-REFRIGERATOR
34A	SCREW (5)
35	DIVIDER, CENTER
36	BOTTOM, FC
37	SHELF
38	END CAP-SHELF,PROTECTOR
39	TRIM
40	215667501 Frigidaire Refrigerator Ice Tray Primary
41	WCI G163022-03
42	WCI G186661-02
