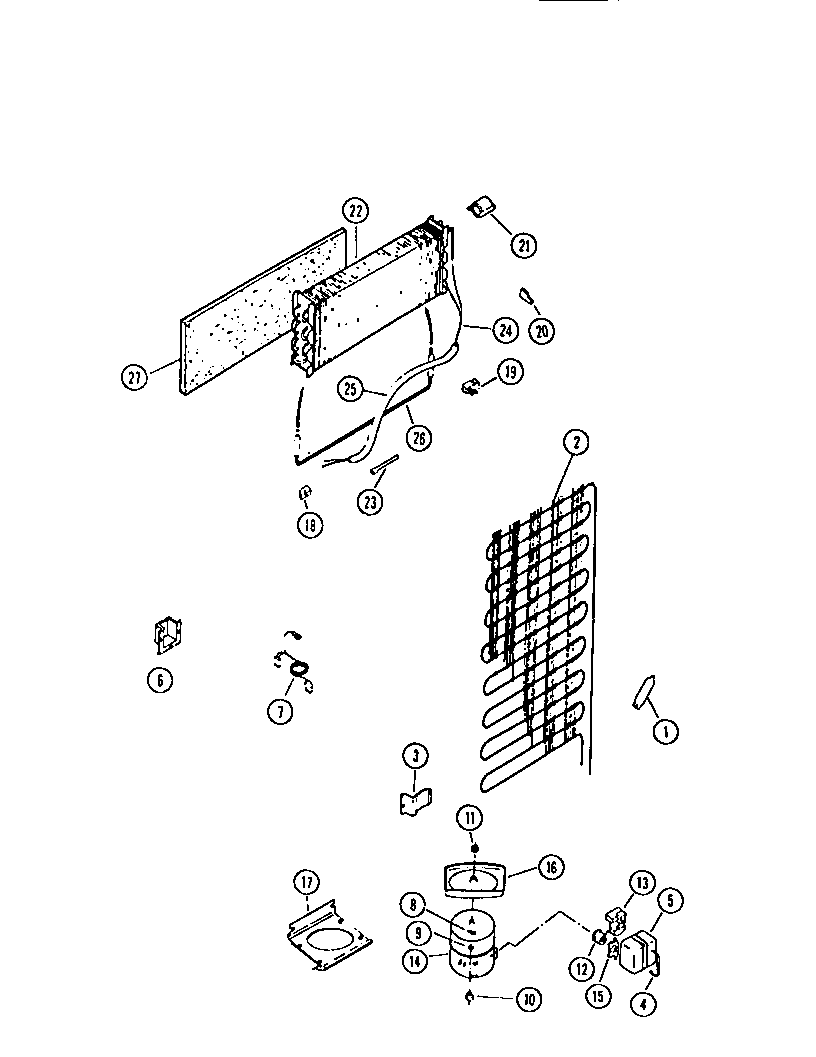

RT19F9YU3B 03 – COOLING SYSTEMadmin2025-04-26T10:27:06+00:00RT19F9YU3B 03 – COOLING SYSTEM
Products
| Position | Product |
|---|
| *23565 | HARNESS-COMPRESSOR |
| *23566 | HOT TUBE REPAIR KIT |
| *23567 | WCI G189229-07 |
| 1 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 2 | WCI G162739 |
| 3 | BRACKET-CONDENSER MOUNTING (4) |
| 4 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 6 | WCI G183584 |
| 7 | CORD, SERVICE |
| 8 | CLIP (4) |
| 9 | WASHER, COMPRESSOR MOUNTING (4) |
| 10 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 11 | NUT, LOCK |
| 12 | WCI G185810 |
| 13 | WCI G182225-11 |
| 14 | WCI G184569 |
| 15 | RETAINER, OVERLOAD |
| 16 | DEFROST PAN & NUT |
| 17 | PLATE |
| 18 | BLOCK, LEFT SIDE |
| 19 | BLOCK, EVAPORATOR, RH |
| 20 | PLUG, EVAPORATOR INSULATION BLOCK, R H |
| 21 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 22 | EVAPORATOR |
| 23 | WCI G165543 |
| 24 | HEAT, EXCHANGE |
| 25 | WCI G125963-68 |
| 26 | 5317842502 Frigidaire Defrost Heater |
| 27 | INSULATOR |
