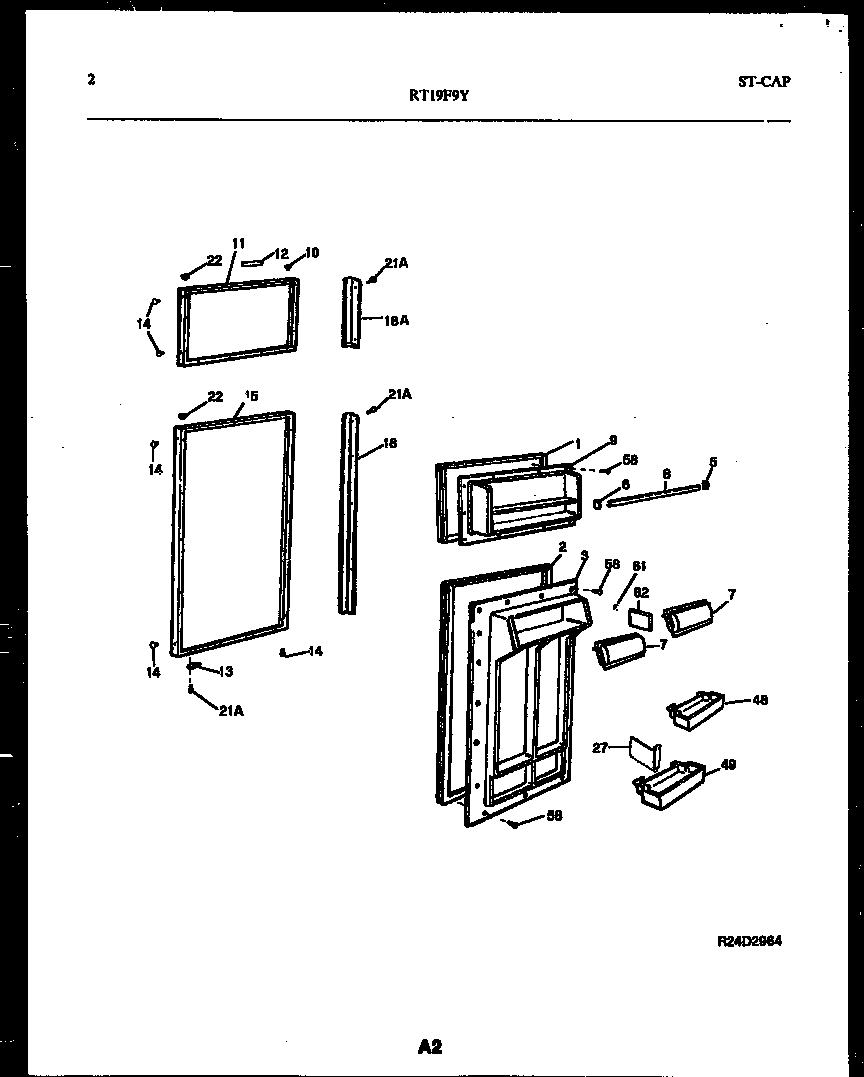

RT19F9YY3A 02 – DOOR PARTS

Products

Position	Product
*54461	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303001486
2	GASKET-REFRIG DOOR
3	WCI 5303279870
5	3206165 Frigidaire Bar Endcap Right Hand
6	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7	WCI 5303279800
8	WCI 5303280191
9	WCI 3018971
10	BUTTON-WHEAT
11	WCI 5303916955
12	NAMEPLATE ASSY
13A	WCI 5308000255
13	DOOR STOP, REFR SECTION
14	BUTTON-WHEAT
15	WCI 5303917029
15A	WCI 5303275660
18	WCI 5303281406
18A	WCI 5303281405
21A	WCI 5308011745
22	BEARING-HINGE
27	WCI 5303279908
27	SNUGGER, DOOR RACK
48	WCI 5303279795
49	WCI 5303279793
58	5304455651 Frigidaire Refrigerator Screw
61	NUT, SELF-THREADING, 1/8
62	WCI 5303279801
