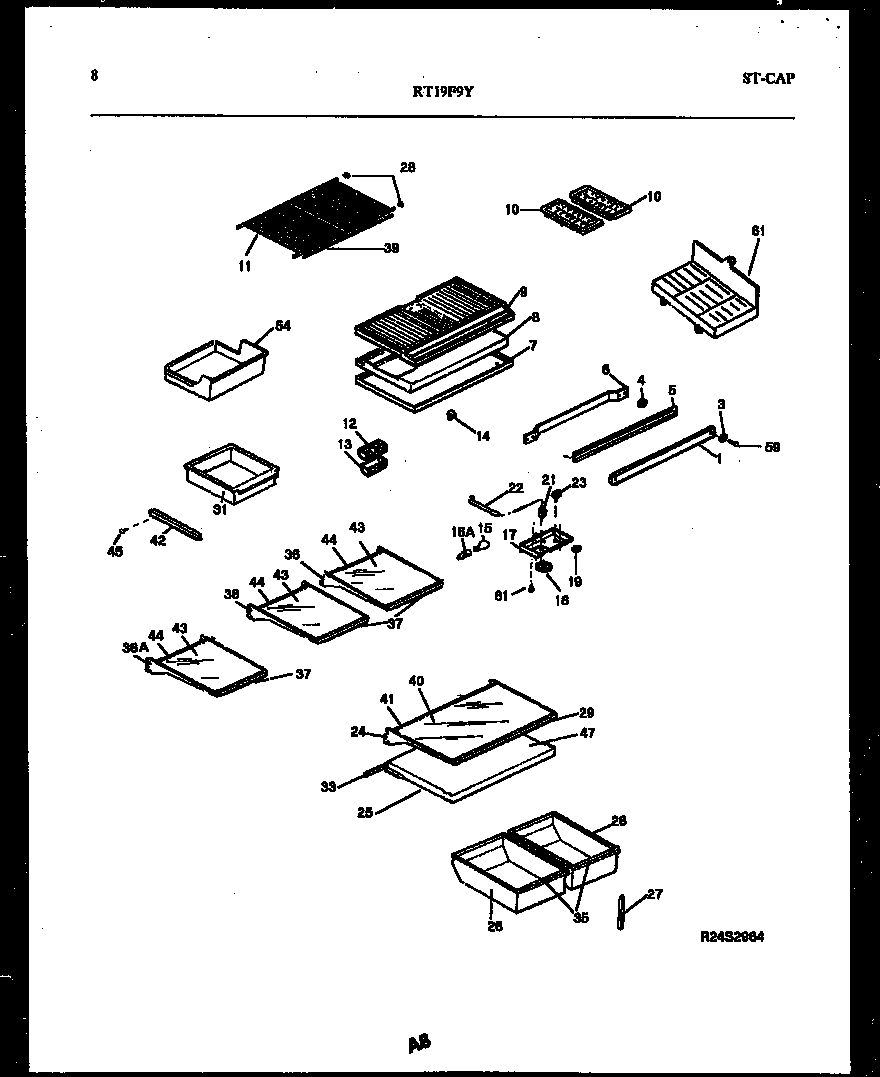

RT19F9YY3A 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200368
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8A3205266 Frigidaire Refrigerator Edge Protector
8DIVIDER-FOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303209597
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303272507
18WCI 5303209251
19WCI 5303207249
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5303276776
25BWCI 5303279636
25AWCI 5303279635
25WCI 5303279634
26WCI 5303275274
26WCI 5303274981
27WCI 5303206505
28END CAP-SHELF,PROTECTOR
29AWCI 5303209274
29TRIM-FRZR SHELF
31WCI 5303279511
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
35WCI 5303274987
35WCI 5303274986
36AWCI 5303286403
36WCI 5303279431
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
37WCI 5303279765
39WCI 5303279767
40SHELF-GLASS, FULL SHELF
41TRIM-FULL SHELF, REAR
42WCI 5303279817
42AWCI 5303279816
43SHELF-GLASS, HALF SHELF, (3)
44WCI 5303279768
45WCI 08014528
47WCI 5303279700
545303212918 Frigidaire Refrigerator Cont
59WCI 5308012258
61WCI 5318609501
815304455650 Frigidaire Refrigerator Screw
54497CLIP-CANTILEVER SHLF
54498LOCK-SHELF TRIM, REAR
