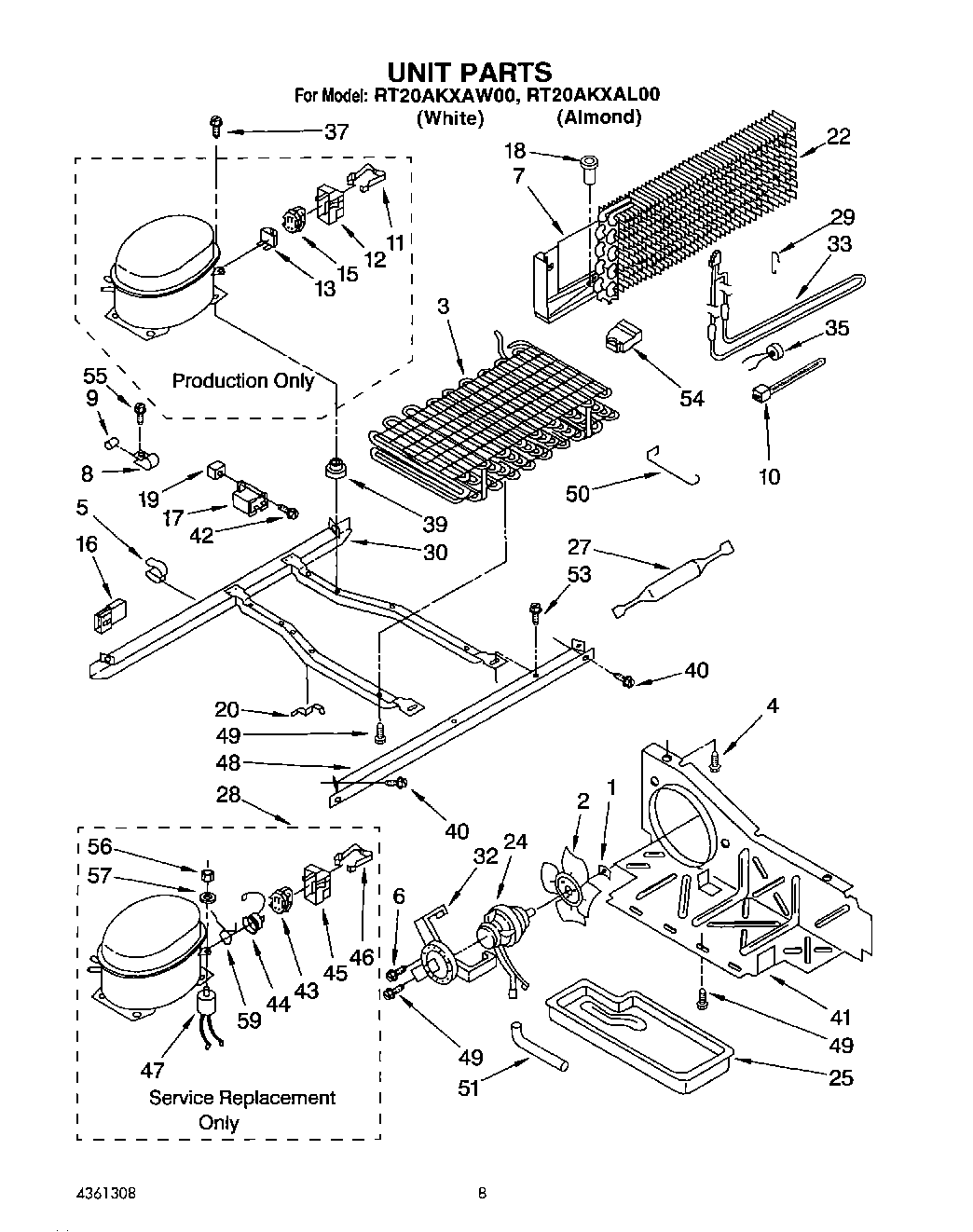

| 1 | WP486692 Whirlpool Refrigerator Nut |
| 2 | Fan, Blade |
| 3 | Condenser Assembly |
| 5 | Clip, Wire (2) |
| 6 | 681390 Whirlpool Refrigerator Screw |
| 7 | Drain Pan/ Heat Shield |
| 8 | Tube Clamp (2) |
| 9 | Dampener (2) |
| 10 | WPW10339879 Whirlpool Wire Tie |
| 13 | OVERLOAD |
| 16 | Housing Plug |
| 17 | Running Capacitor (Service) |
| 18 | Drain Fitting |
| 19 | Screw Grommet |
| 20 | Clip (2) |
| 22 | Evaporator |
| 24 | 833697 Whirlpool Condenser Fan Motor |
| 25 | WPW10614158 Whirlpool Refrigerator Evaporator Tray |
| 27 | W10843121 Whirlpool Refrigerator Tube |
| 28 | W10439652 Whirlpool Refrigerator Compressor |
| 29 | Support, Heater |
| 30 | Unit Mounting Frame |
| 32 | Fan, Motor Bracket |
| 33 | Heater, Defrost |
| 35 | WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat |
| 39 | 876811 Whirlpool Grommet |
| 40 | 489340 Whirlpool Refrigerator Screw |
| 41 | Air, Baffle |
| 42 | W11693756 Whirlpool Screw Assembly |
| 43 | WP2262181 Whirlpool Refrigerator Start Relay |
| 44 | Overload |
| 45 | Cover |
| 46 | Strap |
| 47 | WPW10662129 Whirlpool Refrigerator Run Capacitor |
| 48 | Unit Mounting Rail |
| 49 | WP489464 Whirlpool Refrigerator Screw |
| 50 | 1105612 Whirlpool Fan Guard |
| 51 | Drain Extension |
| 53 | Screw, 1/4-28 x 1/2 (2) |
| 54 | Support (L.S.) |
| 54 | Support (R.S.) |
| 55 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 56 | Nut |
| 57 | Washer |
| 59 | VALVE, ACCESS (5/8``) |
| 59 | 876764 Whirlpool Refrigerator Primary Valve |
| 59 | 978026 Whirlpool Refrigerator Primary Valve |
| 59 | 978027 Whirlpool Refrigerator Primary Valve |
| 59 | VALVE, ACCESS (1/2``) |
| 59 | WP978025 Whirlpool Refrigerator Valve |
| 59 | 978030 Whirlpool Refrigerator Valve |
| 59 | Overload Spring |
