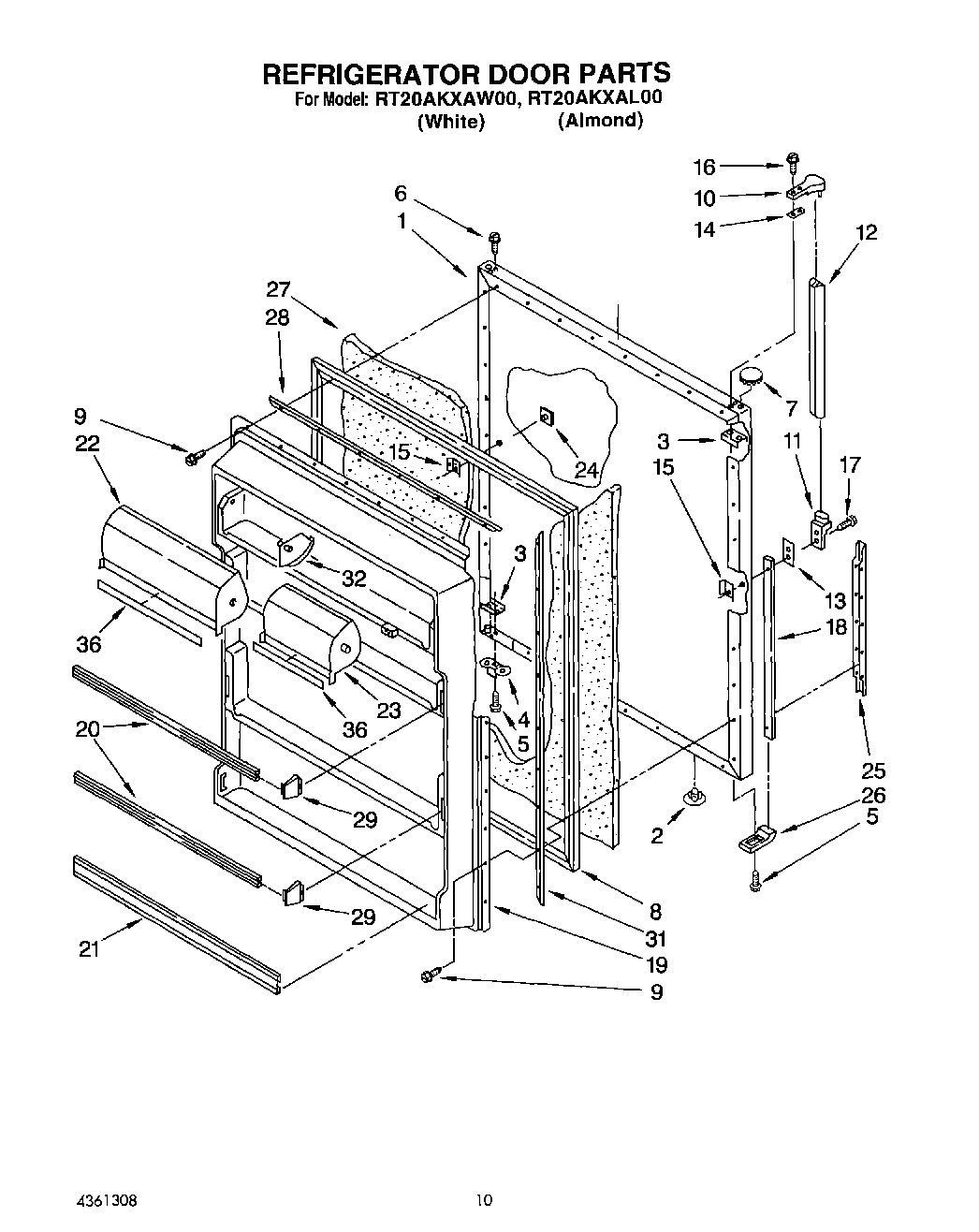

RT20AKXAW00 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT20AKXAW00 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT20AKXAW00 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2163204
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	Torx Key
	WPL LIT2154075
	WPL LIT2163296
	WPL LIT4361308
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	End Cap
12	Handle, Center
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WPL 1118080
19	Interior Door Panel
20	Trim, Door (2)
21	Trim, Door
22	Compartment Door
23	Compartment Door
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
25	Insert, Handle
26	WPL 1105804
28	Gasket Retainer, Top & Bottom
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
31	Gasket, Retainer
32	WP1118001 Whirlpool Hinge Pin
36	350942 Whirlpool Spray Paint
36	Almond (Uncut)
36	Leveler (Thinner)
36	212643 Whirlpool Refrigerator Permagum Sealer
36	WP72107 Whirlpool Touchup
36	350930 Whirlpool White Spray Paint
36	799344 Whirlpool Refrigerator Paint
36	72017 Whirlpool Appliance Touch-Up Paint White
36	350956 Whirlpool Spray Assembly
36	72032 Whirlpool Touch Up Paint Black
36	511873 Whirlpool Refrigerator Paint
36	WPL 876029
36	WPL 799833
36	CEMENT, ALUMILASTIC (1 1/4 OZ.)
36	TAPE, VINYL (3/4 X 108“)
36	285006 Whirlpool Spray
36	WP542638 Whirlpool Refrigerator Grease
36	WP505587 Whirlpool Refrigerator Sealer
36	WP503695 Whirlpool Refrigerator Sealer
36	876370 Whirlpool Refrigerator Insulation
36	833938 Whirlpool Refrigerator Terminal
36	606755 Whirlpool Refrigerator Bag
36	Trim, Comp. Door
