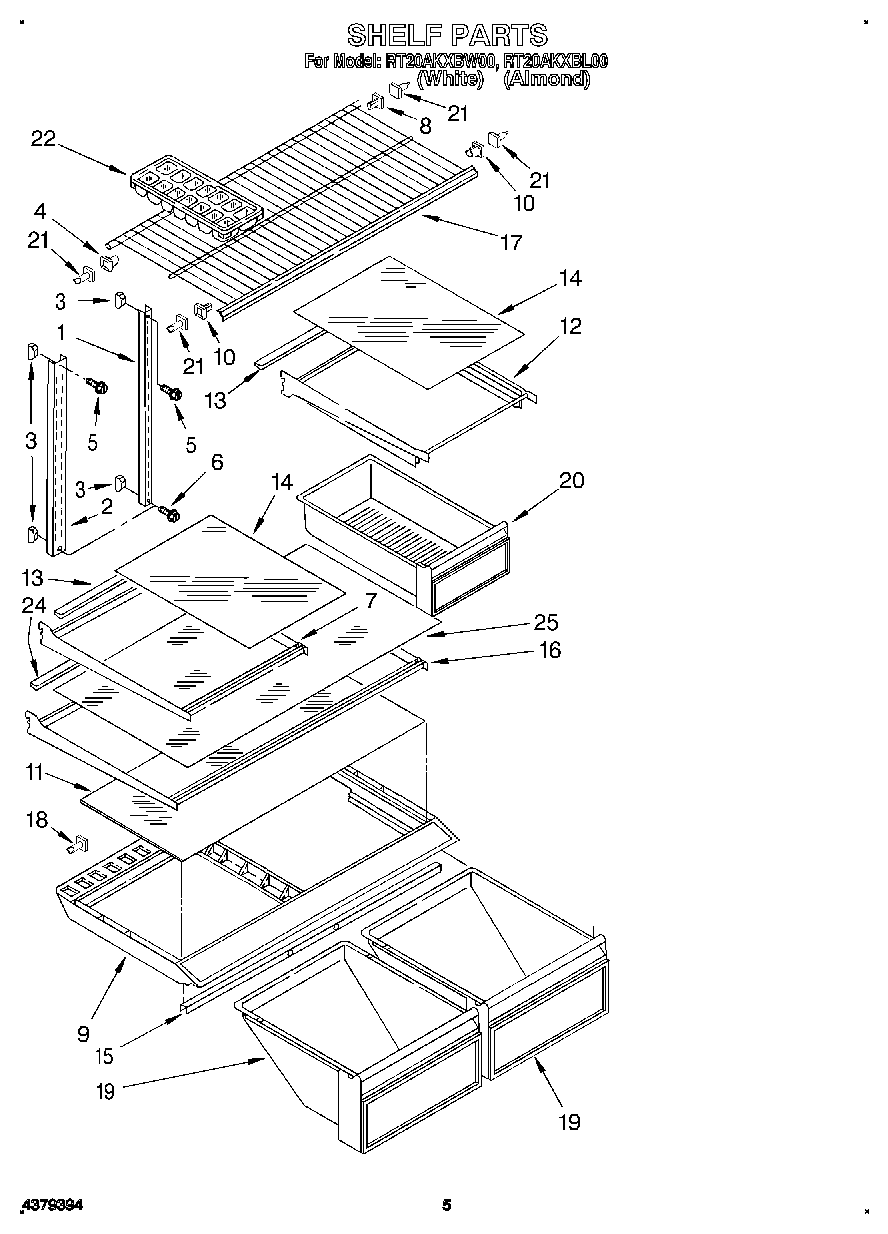

RT20AKXBL00 04 – SHELF

RT20AKXBL00 04 – SHELF

Written by

in

RT20AKXBL00 04 – SHELF

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
5Screw (3)
6WP488163 Whirlpool Refrigerator Screw
7Shelf, Cantilever
8819091 Whirlpool Refrigerator Shelf Stud
9WP2151749 Whirlpool Refrigerator Cover
10Stud, Front R.S.
11Glass, Crisper Cover
12Pan Shelf, Cantilever
13Retainer, Glass
14Glass, Shelf
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17Shelf, Freezer
18W10854959 Whirlpool Refrigerator Shelf Stud
19Pan, Crisper
20Pan, Meat
21Stud, Support
22WP841180A Whirlpool Microwave Glass Turntable Tray
24Reflector, Shelf
25Glass, Shelf Full
