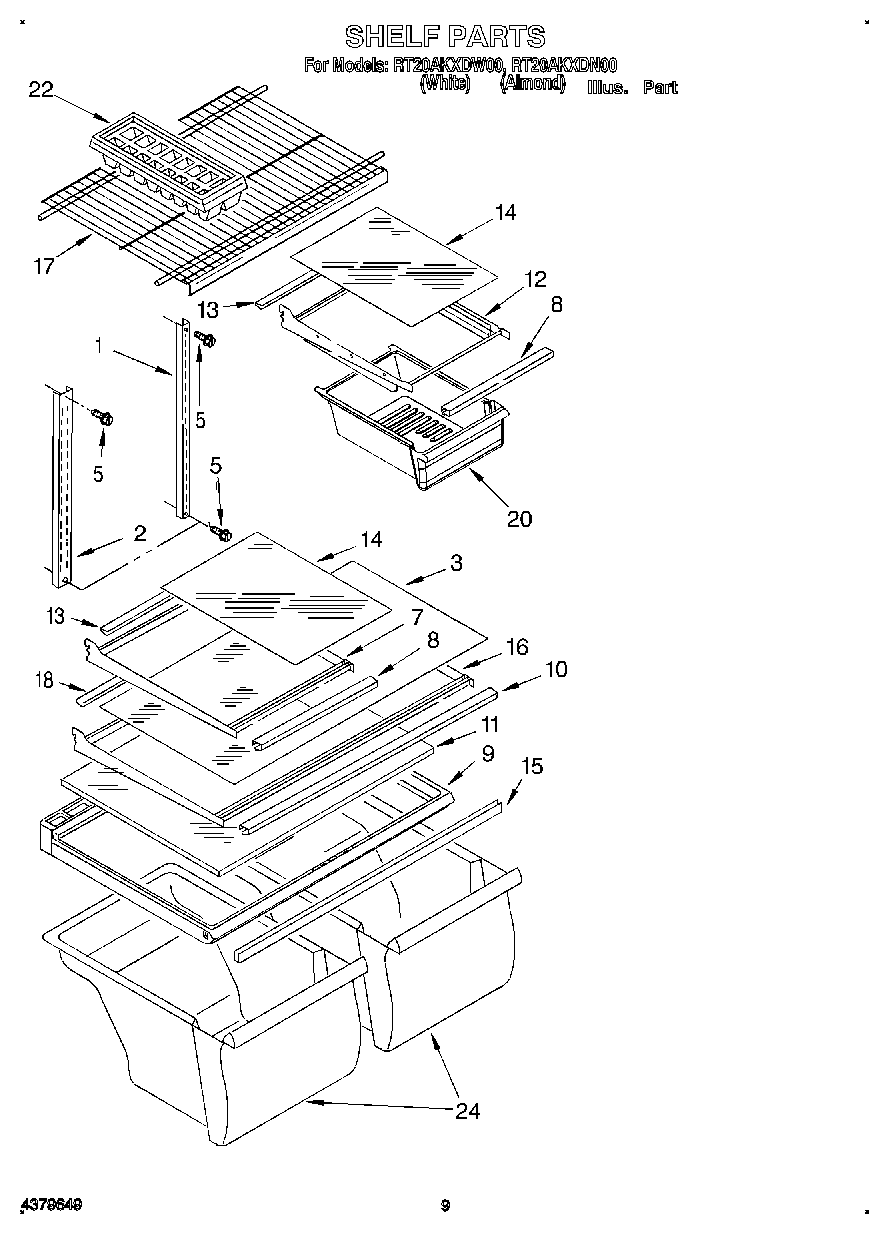

RT20AKXDN00 05 – SHELF, LIT/OPTIONALadmin2025-04-26T08:52:44+00:00RT20AKXDN00 05 – SHELF, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Torx Key |
| WPL LIT2173415 |
| WPL LIT2173304 |
| WPL LIT2172667 |
| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 3 | Glass, Full Shelf |
| 5 | W11544659 Whirlpool Refrigerator Screw |
| 7 | Shelf, Cantilever |
| 8 | Trim, Shelf |
| 9 | WP2314549 Whirlpool Refrigerator Cover |
| 10 | Trim, Shelf Front |
| 11 | WP2176225 Whirlpool Glass Shelf |
| 12 | Pan Shelf, Cantilever |
| 13 | Retainer, Glass |
| 14 | Glass, Shelf |
| 15 | WP2172748 Whirlpool Drawer Support |
| 16 | Shelf, Full Cantilever |
| 17 | Shelf, Freezer |
| 18 | Trim, Shelf Rear |
| 20 | Pan, Meat |
| 22 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 24 | Almond (Uncut) |
| 24 | Door Reversal Instructions |
| 24 | CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| 24 | 72032 Whirlpool Touch Up Paint Black |
| 24 | 285006 Whirlpool Spray |
| 24 | 606755 Whirlpool Refrigerator Bag |
| 24 | 511873 Whirlpool Refrigerator Paint |
| 24 | 350942 Whirlpool Spray Paint |
| 24 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 24 | WP72107 Whirlpool Touchup |
| 24 | 799344 Whirlpool Refrigerator Paint |
| 24 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 24 | 350956 Whirlpool Spray Assembly |
| 24 | 833938 Whirlpool Refrigerator Terminal |
| 24 | 876370 Whirlpool Refrigerator Insulation |
| 24 | W10854037 Whirlpool Refrigerator Crisper Pan |
| 24 | WPL 876029 |
| 24 | WPL 799833 |
| 24 | WPL 799832 |
| 24 | TAPE, VINYL (3/4 X 108``) |
| 24 | WP542638 Whirlpool Refrigerator Grease |
| 24 | WP505587 Whirlpool Refrigerator Sealer |
| 24 | WP503695 Whirlpool Refrigerator Sealer |
| 24 | 350930 Whirlpool White Spray Paint |
