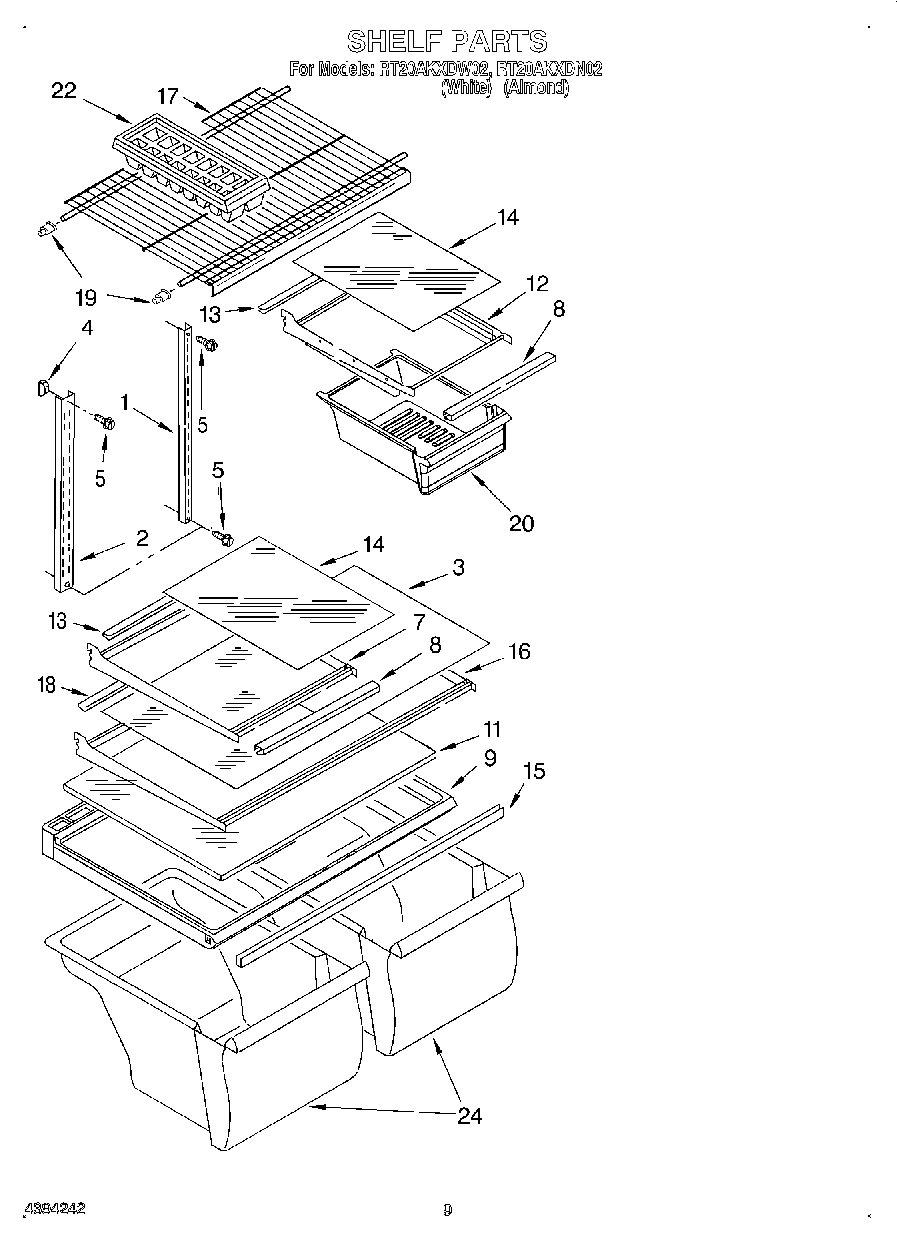

RT20AKXDW02 05 – SHELF, LIT/OPTIONAL

RT20AKXDW02 05 – SHELF, LIT/OPTIONAL

Written by

in

RT20AKXDW02 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2173304
WPL LIT2172667
Torx Key
WPL LIT2173478
1Shelf, Ladder (2)
2Shelf, Ladder Center
3Glass, Full Shelf
4520965 Whirlpool Refrigerator Support
5W11544659 Whirlpool Refrigerator Screw
7Shelf, Cantilever
8Trim, Shelf
9WP2314549 Whirlpool Refrigerator Cover
11WP2176225 Whirlpool Glass Shelf
12Pan Shelf, Cantilever
13Retainer, Glass
14Glass, Shelf
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17Shelf, Freezer
18Trim, Shelf Rear
192163762 Whirlpool Refrigerator Cup Assembly
20Pan, Meat
22WP841180A Whirlpool Microwave Glass Turntable Tray
24Door Reversal Instructions
24CEMENT, ALUMILASTIC (1 1/4 OZ.)
24Almond (Uncut)
2472032 Whirlpool Touch Up Paint Black
24285006 Whirlpool Spray
24606755 Whirlpool Refrigerator Bag
24511873 Whirlpool Refrigerator Paint
24350942 Whirlpool Spray Paint
24212643 Whirlpool Refrigerator Permagum Sealer
24WP72107 Whirlpool Touchup
24799344 Whirlpool Refrigerator Paint
2472017 Whirlpool Appliance Touch-Up Paint White
24350956 Whirlpool Spray Assembly
24833938 Whirlpool Refrigerator Terminal
24876370 Whirlpool Refrigerator Insulation
24W10854037 Whirlpool Refrigerator Crisper Pan
24WPL 876029
24WPL 799833
24WPL 799832
24TAPE, VINYL (3/4 X 108“)
24WP542638 Whirlpool Refrigerator Grease
24WP505587 Whirlpool Refrigerator Sealer
24WP503695 Whirlpool Refrigerator Sealer
24350930 Whirlpool White Spray Paint
