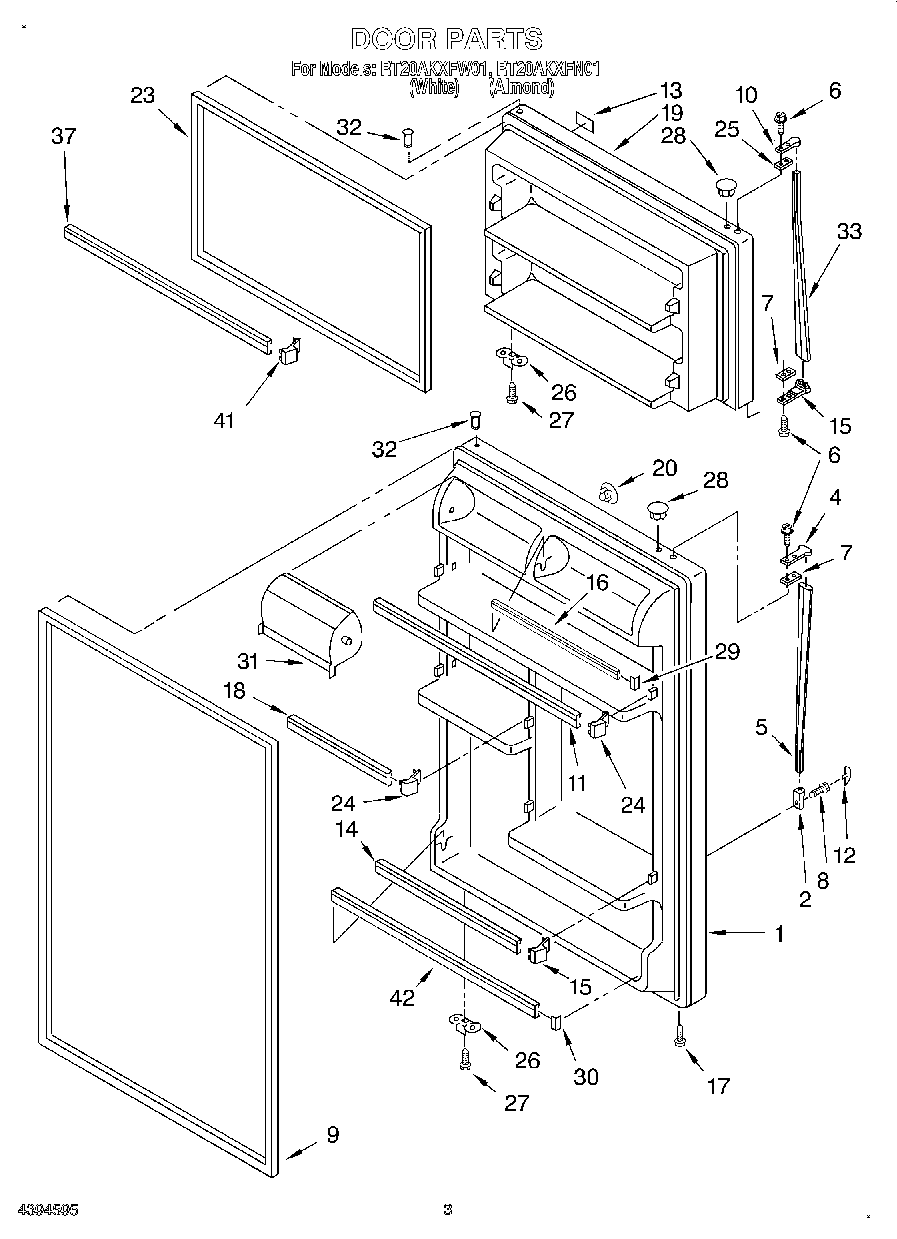

RT20AKXFN01 02 – DOOR

RT20AKXFN01 02 – DOOR

Written by

in

RT20AKXFN01 02 – DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.9 & No.32) (Almond)
1Refrigerator Door (Includes No.9 & No.32) (White)
5Handle, Center
6WP488920 Whirlpool Refrigerator Screw
7Spa
8WP488729 Whirlpool Refrigerator Door Screw
92159061 Whirlpool Refrigerator Door Gasket
11Trim, Door Shelf
12WP1101634 Whirlpool Refrigerator Cover
13Nameplate
14WP2195943 Whirlpool Shelf Retainer Bar
15819342 Whirlpool Refrigerator Endcap Kit
16TRIM-DOOR
17WP8281206 Whirlpool Refrigerator Screw
18Trim, Door
19W11023679 Whirlpool Refrigerator Door Assembly
19Freezer Door (Includes No.23 & No.32) (Almond)
20Hole Plug (Almond)
20WP2189000 Whirlpool Refrigerator Handle Plug
23WHITE DOOR GASKET-FIP
24WP2195915 Whirlpool Door Shelf Support
25Shim, Handle
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28Hole Plug (Almond)
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31WP2218118 Whirlpool Refrigerator Door Compressor
32WP2183003 Whirlpool Thimble
33Handle, Center
37Trim-Door (2)
41ENDCAP
42WPW10421486 Whirlpool Refrigerator Door Trim
100FeaturePak (Includes 6,10,12, 18,20,21,23) Also See Door Page.
