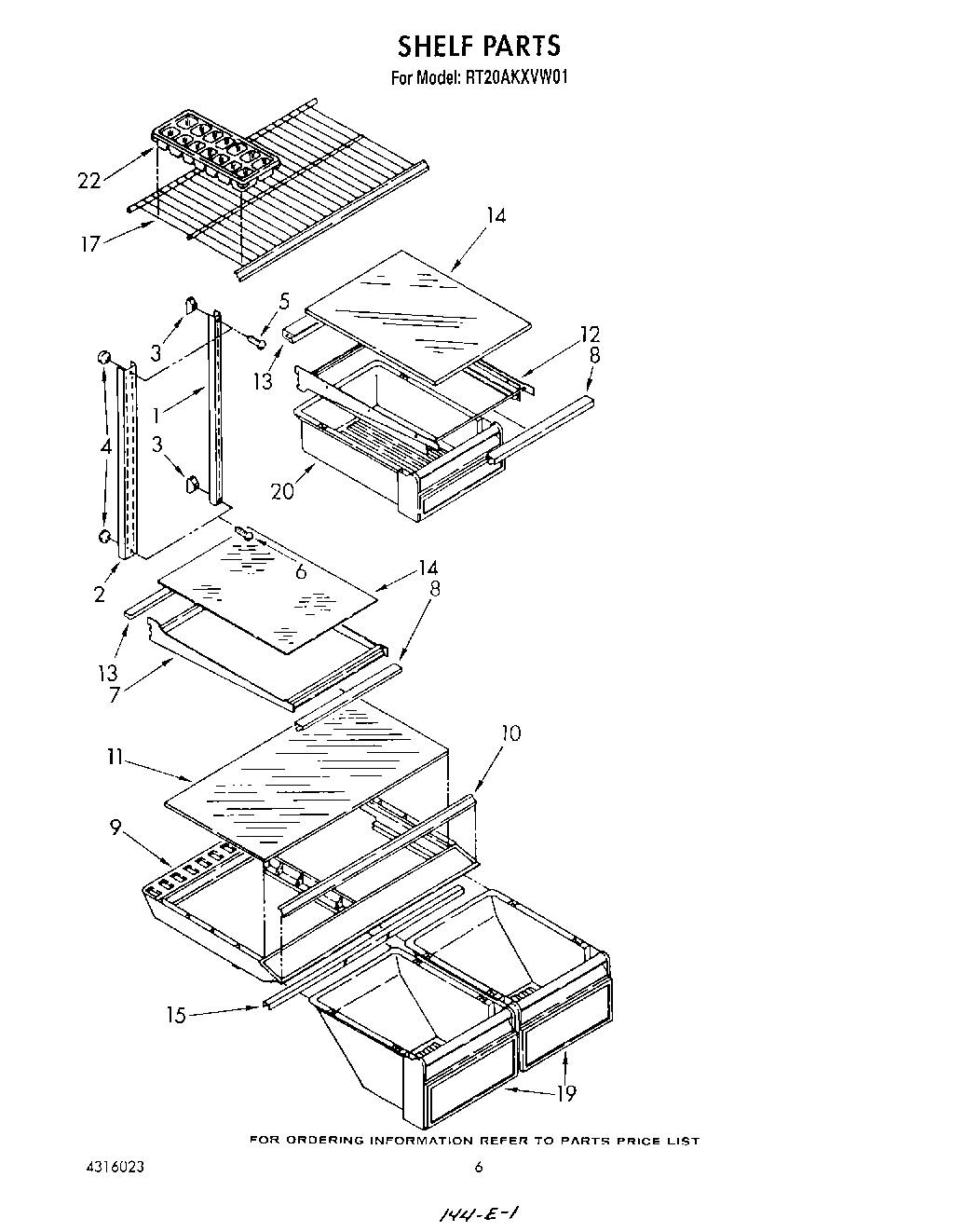

RT20AKXVL01 05 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Screw Support, Center Ladder (2)
5	Screw (Repair)
5	Screw, 8-32 x 1-1/4 (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever (3)
8	Trim, Shelf
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Retainer, Glass
14	Glass, Shelf
15	WP2172748 Whirlpool Drawer Support
17	Shelf, Freezer
19	Pan, Crisper
20	Pan, Meat
22	WP841180A Whirlpool Microwave Glass Turntable Tray
