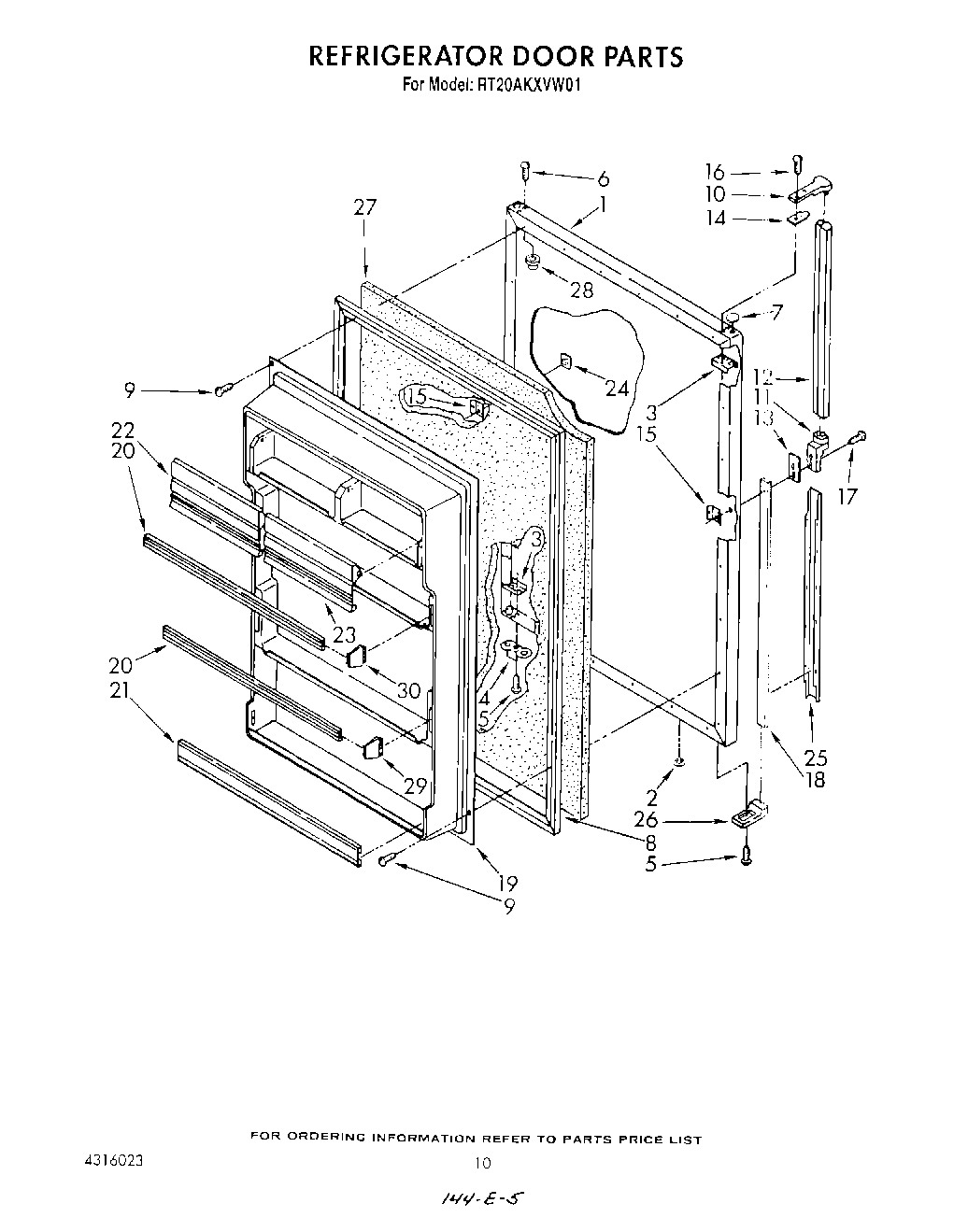

RT20AKXVL01 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

RT20AKXVL01 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

RT20AKXVL01 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
Torx Key
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
WPL LIT1127854
WPL LIT4316023
350942 Whirlpool Spray Paint
WPL LIT2150138
Leveler (Thinner)
350956 Whirlpool Spray Assembly
WPL LIT1124906
1Panel, Refrigerator Door (White)
1Panel, Refrigerator Door (Almond)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82188450A Whirlpool Refrigerator Door Gasket
9WP489069 Whirlpool Compactor Screw
10Handle End
11End Cap
12Handle, Center
13Shim, Handle
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
16Screw (Repair)
17WP488729 Whirlpool Refrigerator Door Screw
18WPL 1118080
19Interior Door Panel
20Trim, Door (2)
21Trim, Door
22Compartment Door, Utility
23Compartment, Butter Door
24Hole Plug, Handle (Almond)
24WP2189000 Whirlpool Refrigerator Handle Plug
25Insert, Handle
26WPL 1105804
28Cap, Hinge Sleeve (2)
294318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30WPL 799833
30WPL 876029
30TAPE, VINYL (3/4 X 108“)
30WP542638 Whirlpool Refrigerator Grease
3072017 Whirlpool Appliance Touch-Up Paint White
30799344 Whirlpool Refrigerator Paint
30CEMENT, ALUMILASTIC (1 1/4 OZ.)
30WP72107 Whirlpool Touchup
30Almond (Uncut)
30833938 Whirlpool Refrigerator Terminal
304386917 Whirlpool Endcap Kit
3072032 Whirlpool Touch Up Paint Black
30WP503695 Whirlpool Refrigerator Sealer
30606755 Whirlpool Refrigerator Bag
30511873 Whirlpool Refrigerator Paint
30212643 Whirlpool Refrigerator Permagum Sealer
30WP505587 Whirlpool Refrigerator Sealer
30876370 Whirlpool Refrigerator Insulation
