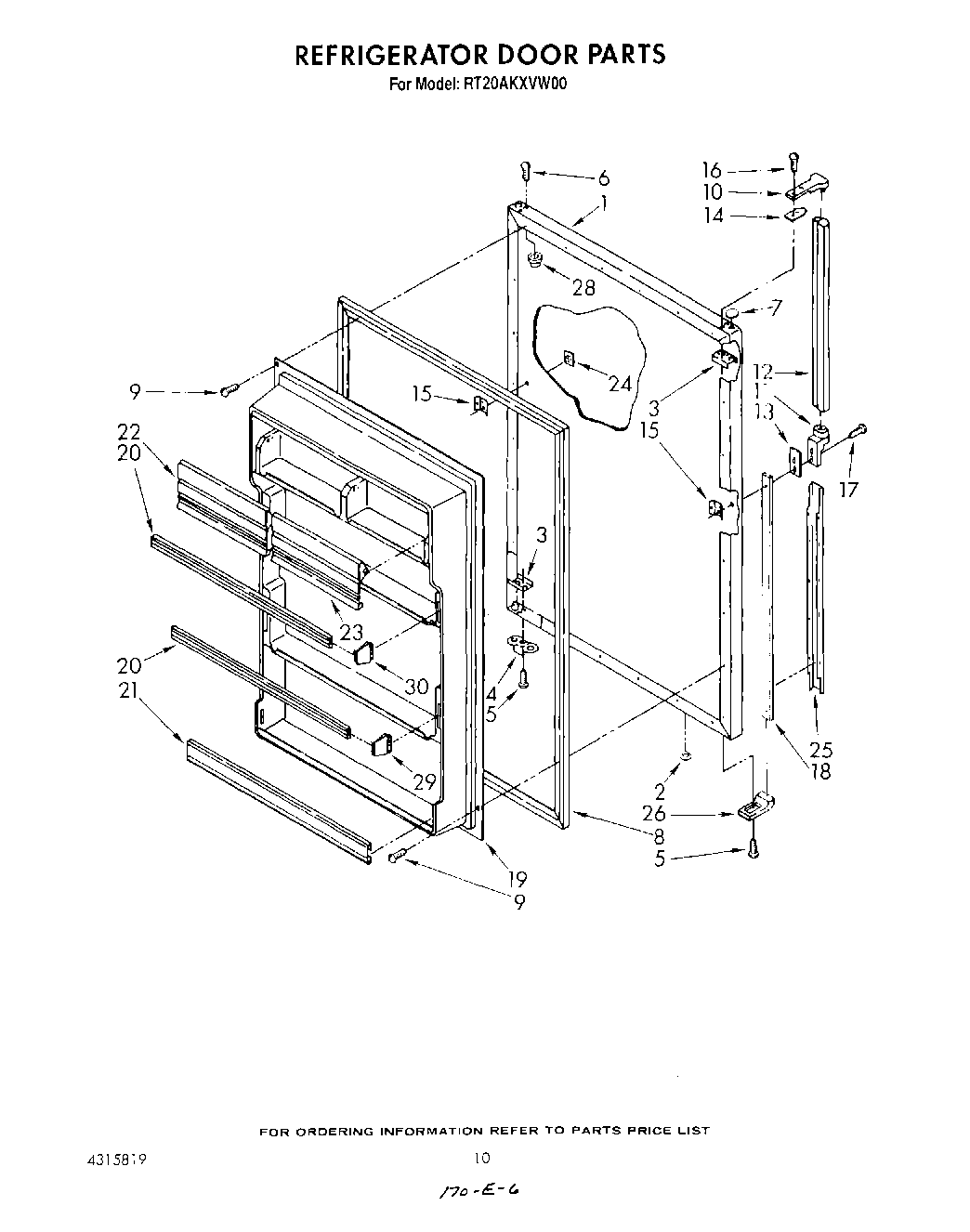

RT20AKXVW00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	Torx Key
	WPL LIT1118773
	285006 Whirlpool Spray
	WPL LIT1124380
	Leveler (Thinner)
	WPL LIT4315819
	350956 Whirlpool Spray Assembly
	WPL LIT1124321
1	Panel, Refrigerator Door (White)
1	Panel, Refrigerator Door (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Screw (Repair)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	End Cap
12	Handle, Center
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	Screw (Repair)
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WPL 1118080
19	Interior Door Panel
20	Trim, Door (2)
21	Trim, Door
22	Compartment Door, Utility
23	Compartment, Butter Door
24	Hole Plug, Handle (Almond)
24	Hole Plug, Handle (White)
24	Hole Plug, Handle (Platinum)
24	Hole Plug, Handle (Toast)
24	WP2189000 Whirlpool Refrigerator Handle Plug
25	Insert, Handle
26	WPL 1105804
28	Cap, Hinge Sleeve (2)
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	WPL 799833
30	TAPE, VINYL (3/4 X 108``)
30	WP542638 Whirlpool Refrigerator Grease
30	WPL 876029
30	72017 Whirlpool Appliance Touch-Up Paint White
30	72032 Whirlpool Touch Up Paint Black
30	799344 Whirlpool Refrigerator Paint
30	WP72107 Whirlpool Touchup
30	876370 Whirlpool Refrigerator Insulation
30	4386917 Whirlpool Endcap Kit
30	WP503695 Whirlpool Refrigerator Sealer
30	606755 Whirlpool Refrigerator Bag
30	511873 Whirlpool Refrigerator Paint
30	212643 Whirlpool Refrigerator Permagum Sealer
30	WP505587 Whirlpool Refrigerator Sealer
30	Almond (Uncut)
30	833938 Whirlpool Refrigerator Terminal
