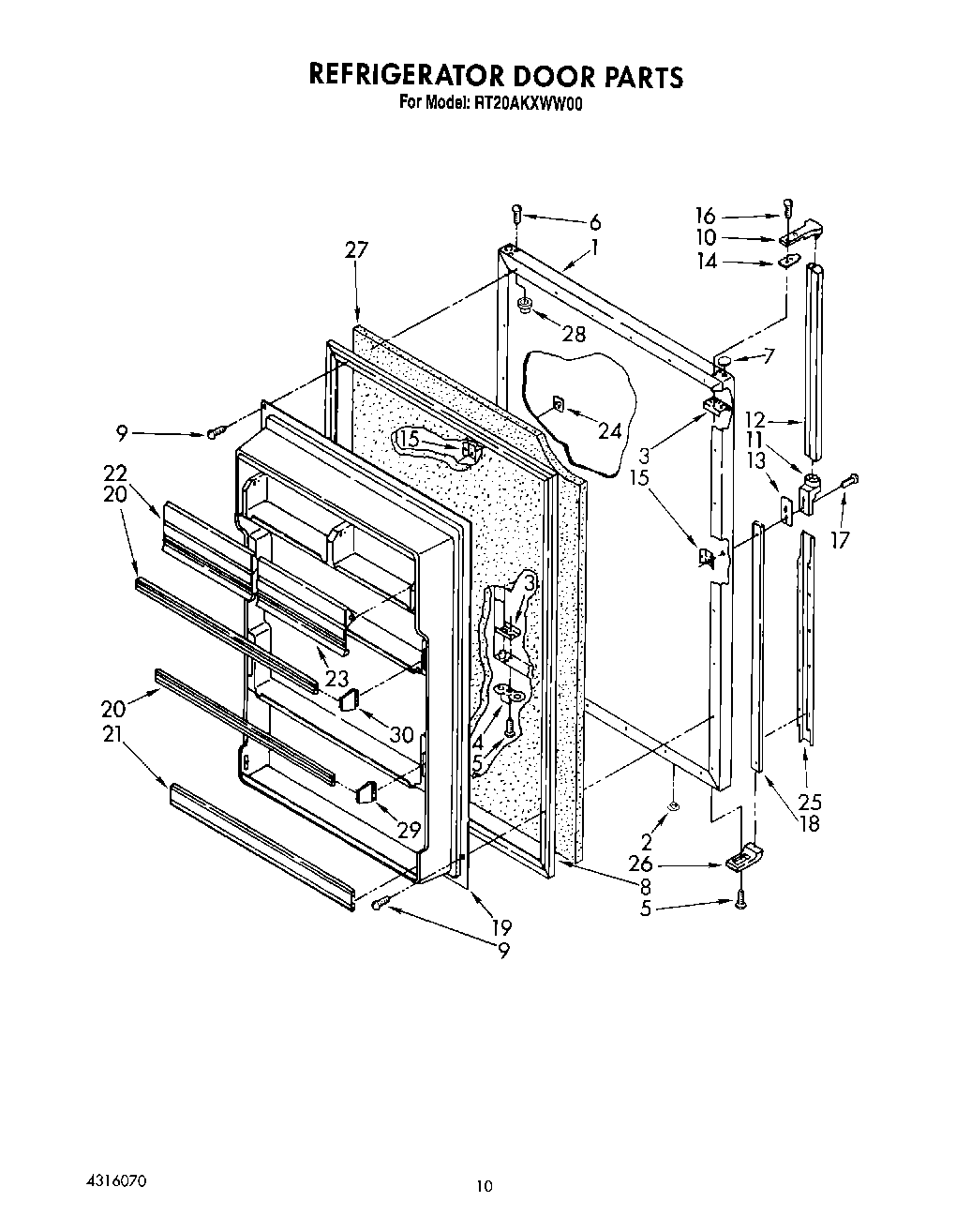

RT20AKXWW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT20AKXWW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT20AKXWW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2150138
Torx Key
WPL LIT4316070
WPL LIT1127854
WPL LIT2148390
WPL 112930
1Panel, Refrigerator Door (White)
1Panel, Refrigerator Door (Almond)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82188450A Whirlpool Refrigerator Door Gasket
9WP489069 Whirlpool Compactor Screw
10Handle End
11End Cap
12Handle, Center
13Shim, Handle
14Spa
15WP939101 Whirlpool Refrigerator Plate
16Screw (Repair)
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WPL 1118080
19Interior Door Panel
20Trim, Door (2)
21Trim, Door
22Compartment Door, Utility
23Compartment, Butter Door
24WP2189000 Whirlpool Refrigerator Handle Plug
24Hole Plug, Handle (Almond)
25Insert, Handle
26WPL 1105804
28Cap, Hinge Sleeve (2)
294318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30833938 Whirlpool Refrigerator Terminal
30285006 Whirlpool Spray
30799344 Whirlpool Refrigerator Paint
30350930 Whirlpool White Spray Paint
30WP542638 Whirlpool Refrigerator Grease
30TAPE, VINYL (3/4 X 108“)
30CEMENT, ALUMILASTIC (1 1/4 OZ.)
30WPL 799833
3072017 Whirlpool Appliance Touch-Up Paint White
30350956 Whirlpool Spray Assembly
30WP72107 Whirlpool Touchup
30Leveler (Thinner)
3072032 Whirlpool Touch Up Paint Black
304386917 Whirlpool Endcap Kit
30606755 Whirlpool Refrigerator Bag
30511873 Whirlpool Refrigerator Paint
30876370 Whirlpool Refrigerator Insulation
30WP503695 Whirlpool Refrigerator Sealer
30350942 Whirlpool Spray Paint
30212643 Whirlpool Refrigerator Permagum Sealer
30WP505587 Whirlpool Refrigerator Sealer
30Almond (Uncut)
30WPL 876029
