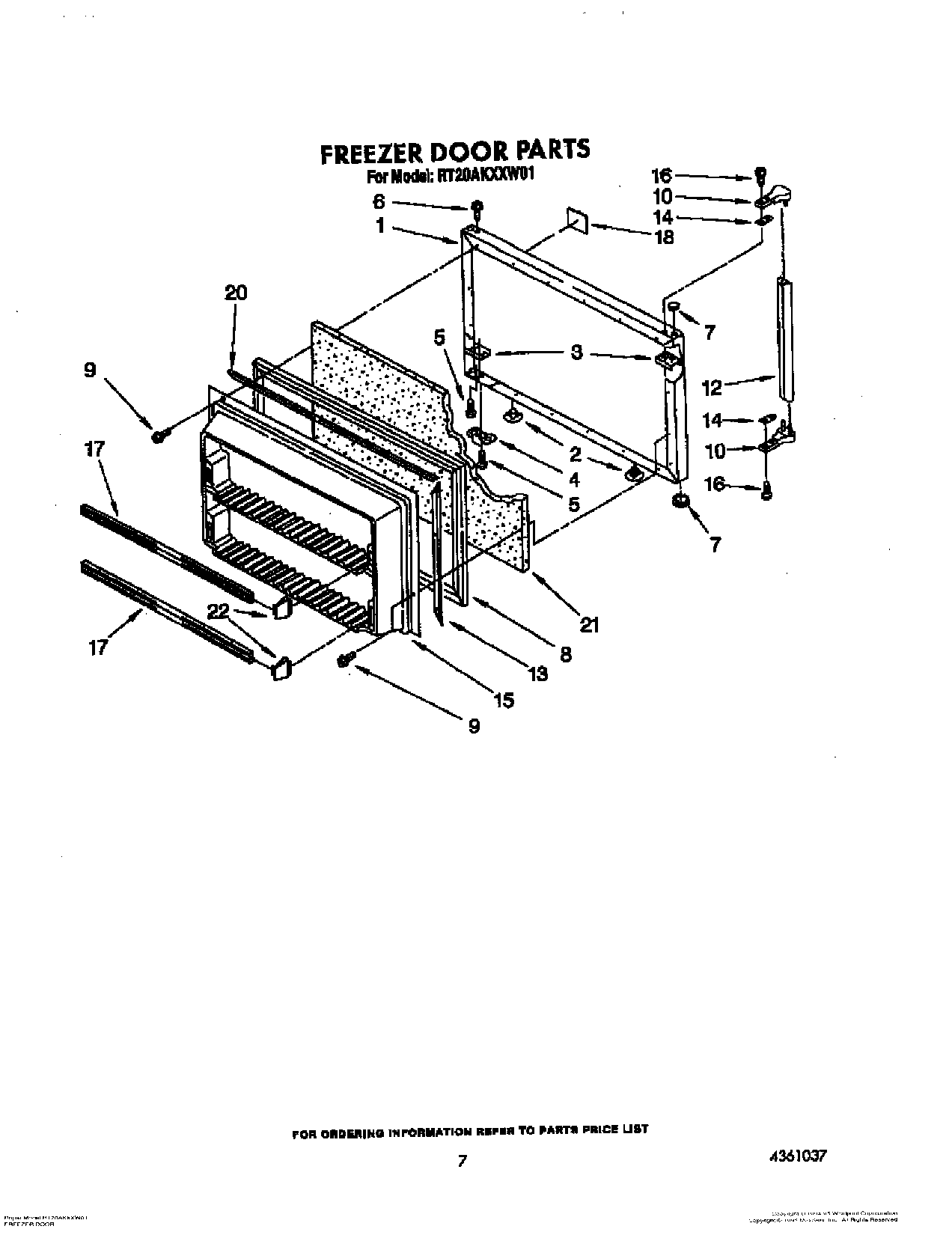

RT20AKXXL01 06 – FREEZER DOOR

Written by

Products

Position	Product
1	Panel, Freezer Door (Also Order Item 21) (Almond)
1	Panel, Freezer Door (Also Order Item 21) (White)
2	Hole Plug (2)
2	Hole Plug (2) (Almond)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188460A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
12	Handle, Center
13	Retainer, Gasket
14	Spa
15	Interior Door Panel
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door (2)
18	Nameplate
20	Gasket Retainer, Top & Bottom
21	WPL 876029
22	4386917 Whirlpool Endcap Kit
