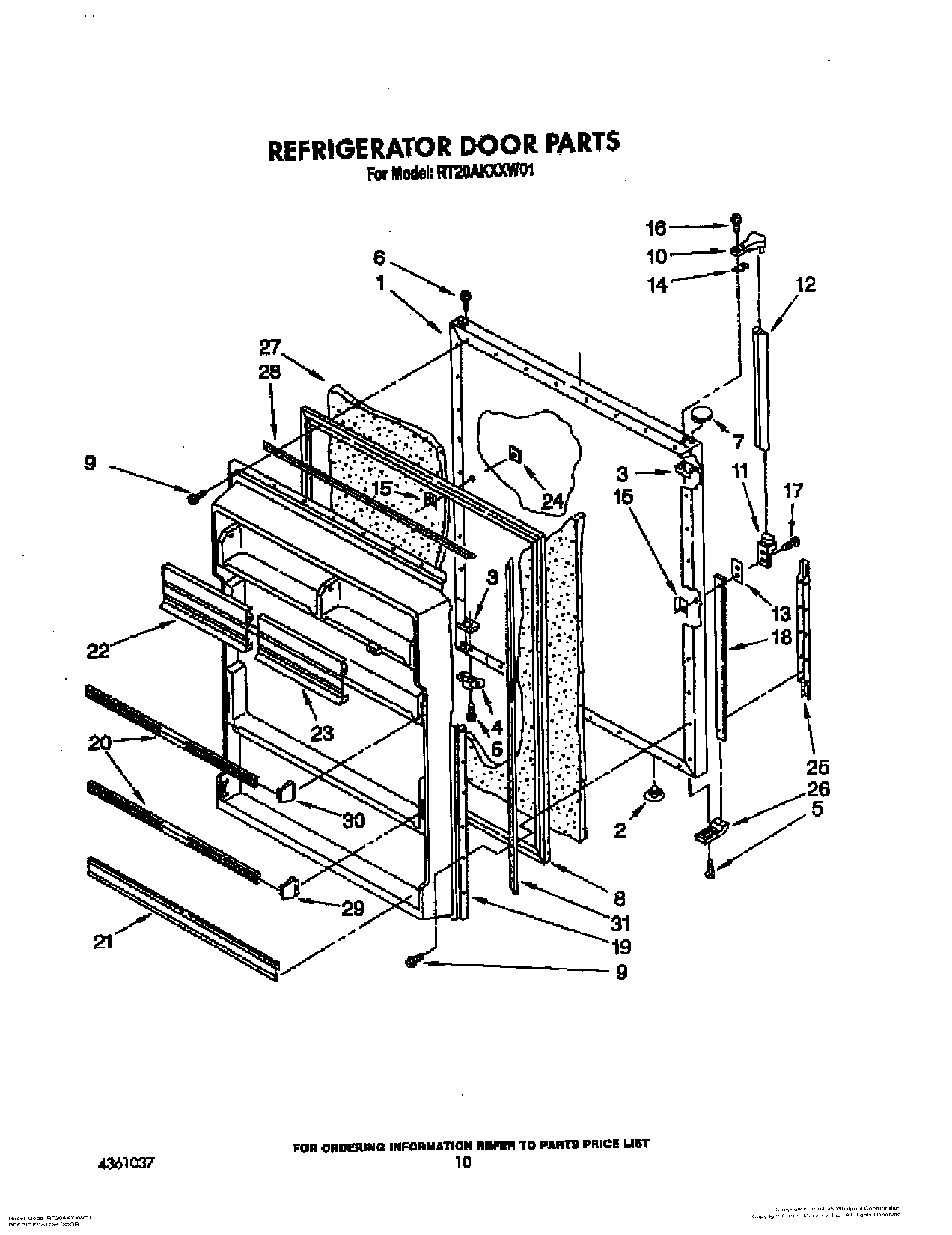

RT20AKXXL01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT20AKXXL01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT20AKXXL01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Torx Key
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
350942 Whirlpool Spray Paint
WPL LIT2150256
WPL LIT2148951
285006 Whirlpool Spray
350956 Whirlpool Spray Assembly
Leveler (Thinner)
WPL LIT2154422
WPL LIT4361037
1Panel, Refrigerator Door (Also Order Item 27) (White)
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82188450A Whirlpool Refrigerator Door Gasket
9WP489069 Whirlpool Compactor Screw
10Handle End
11End Cap
12Handle, Center
13Shim, Handle
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WPL 1118080
19Interior Door Panel
20Trim, Door (2)
21Trim, Door
22Compartment Door, Utility
23Compartment, Butter Door
24Hole Plug, Handle (Almond)
24WP2189000 Whirlpool Refrigerator Handle Plug
25Insert, Handle
26WPL 1105804
28Gasket Retainer, Top & Bottom
294318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
304386917 Whirlpool Endcap Kit
31WP72107 Whirlpool Touchup
3172017 Whirlpool Appliance Touch-Up Paint White
31Almond (Uncut)
31799344 Whirlpool Refrigerator Paint
31Gasket, Retainer
31212643 Whirlpool Refrigerator Permagum Sealer
31CEMENT, ALUMILASTIC (1 1/4 OZ.)
31TAPE, VINYL (3/4 X 108“)
31WP542638 Whirlpool Refrigerator Grease
31WP505587 Whirlpool Refrigerator Sealer
31WP503695 Whirlpool Refrigerator Sealer
31876370 Whirlpool Refrigerator Insulation
3172032 Whirlpool Touch Up Paint Black
31833938 Whirlpool Refrigerator Terminal
31606755 Whirlpool Refrigerator Bag
31WPL 876029
31511873 Whirlpool Refrigerator Paint
31WPL 799833
