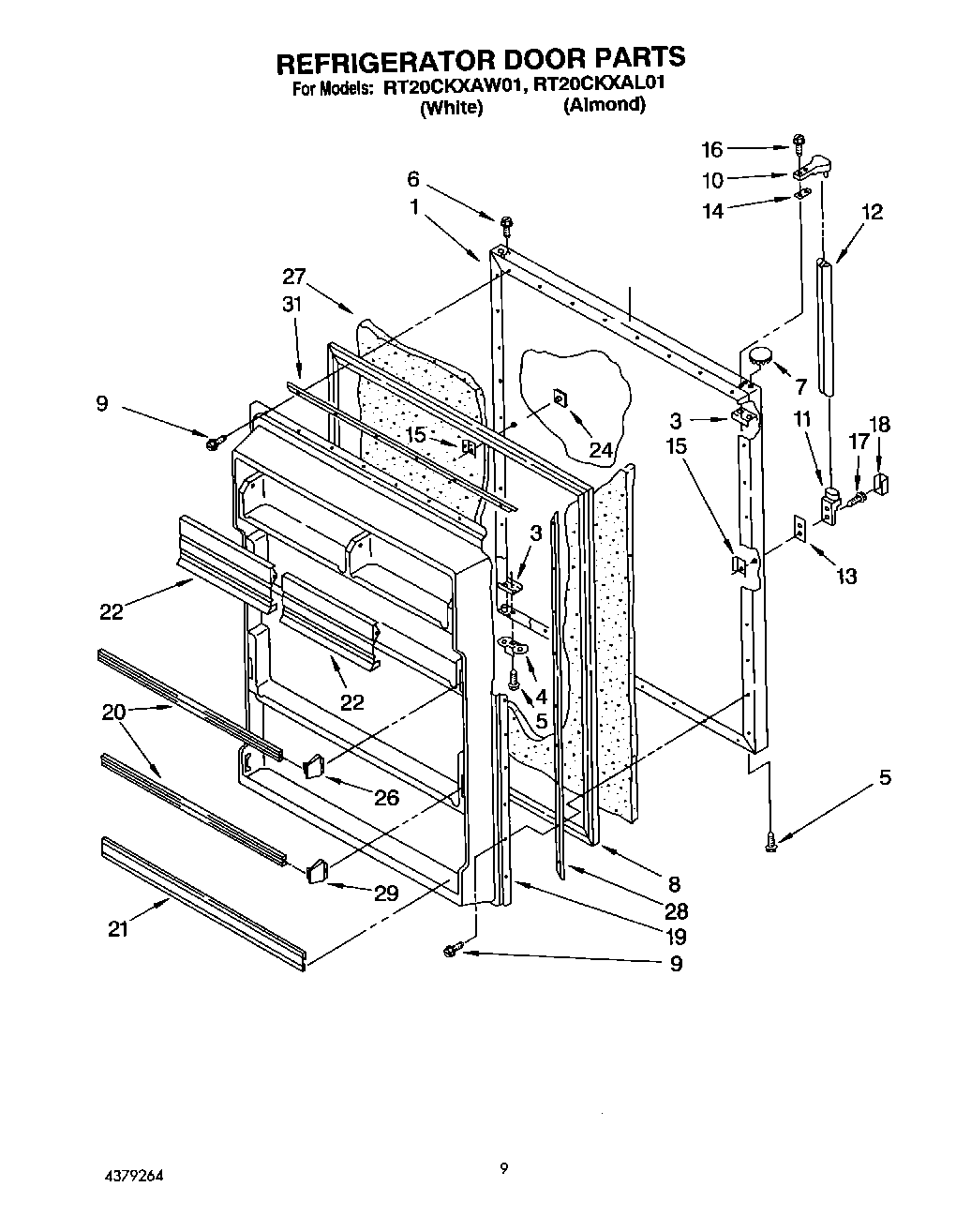

RT20CKXAW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2154075
	WPL LIT2163204
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	Torx Key
	WPL LIT2163499
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End,
12	Handle, Center
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Cover, End Cap
19	Interior Door Panel
20	Trim, Door (2)
21	Trim, Door
22	Compartment Door (R.S.)
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
26	4386917 Whirlpool Endcap Kit
28	Gasket, Retainer
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
31	Golden Harvest (Uncut)
31	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31	Door Reversal Instructions
31	Gasket Retainer, Top & Bottom
31	Almond (Uncut)
31	350930 Whirlpool White Spray Paint
31	WPL 876029
31	Leveler (Thinner)
31	WP72107 Whirlpool Touchup
31	799344 Whirlpool Refrigerator Paint
31	72017 Whirlpool Appliance Touch-Up Paint White
31	212643 Whirlpool Refrigerator Permagum Sealer
31	350942 Whirlpool Spray Paint
31	WPL 799833
31	285006 Whirlpool Spray
31	72032 Whirlpool Touch Up Paint Black
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	WP542638 Whirlpool Refrigerator Grease
31	TAPE, VINYL (3/4 X 108“)
31	WP505587 Whirlpool Refrigerator Sealer
31	WP503695 Whirlpool Refrigerator Sealer
31	876370 Whirlpool Refrigerator Insulation
31	833938 Whirlpool Refrigerator Terminal
31	606755 Whirlpool Refrigerator Bag
31	511873 Whirlpool Refrigerator Paint
31	350956 Whirlpool Spray Assembly
