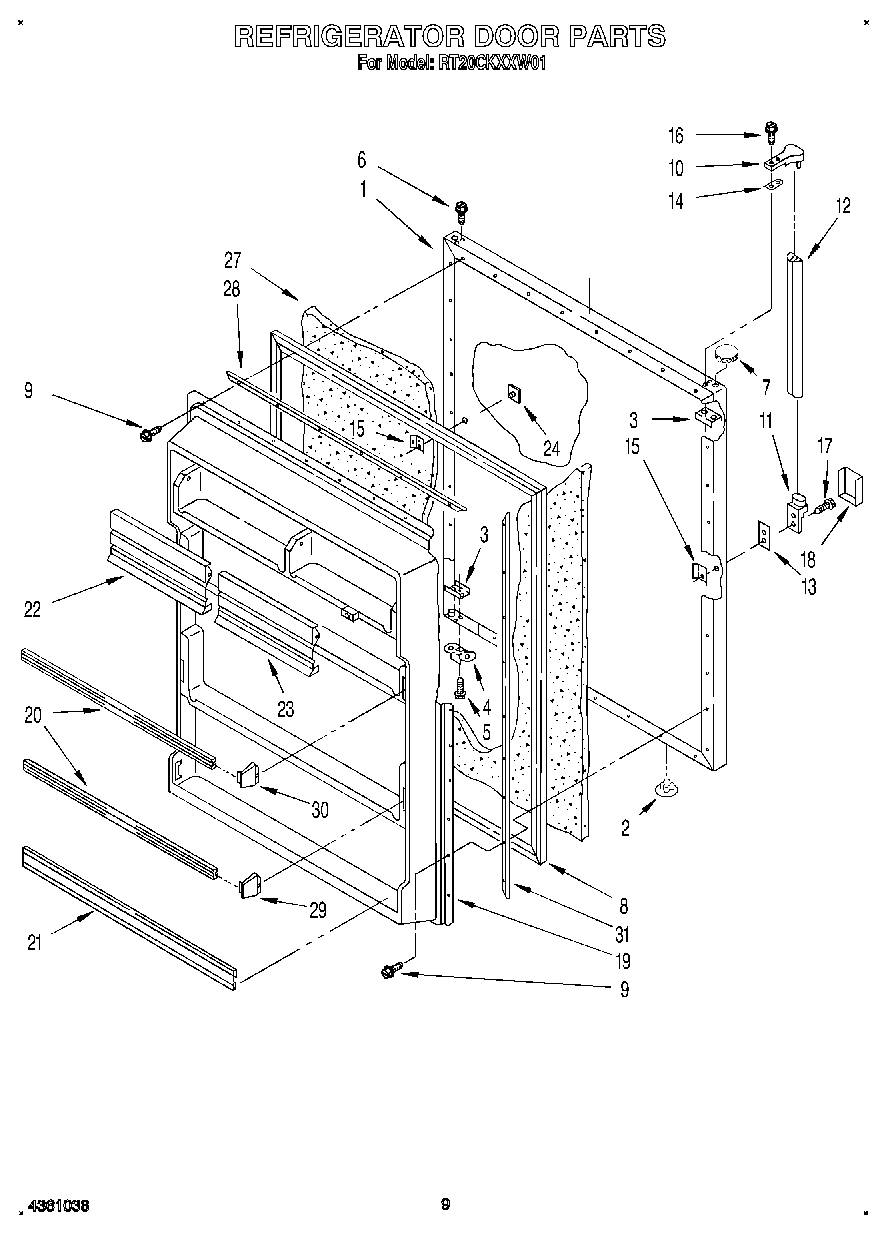

RT20CKXXL01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT20CKXXL01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT20CKXXL01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4361038
	WPL LIT2150256
	Torx Key
	WPL LIT2154422
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT2148951
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End,
12	Handle, Center
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Cover, End Cap
19	Interior Door Panel
20	Trim, Door (2)
21	Trim, Door
22	Compartment Door, Utility
23	Compartment, Butter Door
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
28	Gasket Retainer, Top & Bottom
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30	4386917 Whirlpool Endcap Kit
31	72032 Whirlpool Touch Up Paint Black
31	350942 Whirlpool Spray Paint
31	Gasket, Retainer
31	350930 Whirlpool White Spray Paint
31	212643 Whirlpool Refrigerator Permagum Sealer
31	Almond (Uncut)
31	Leveler (Thinner)
31	WP72107 Whirlpool Touchup
31	799344 Whirlpool Refrigerator Paint
31	72017 Whirlpool Appliance Touch-Up Paint White
31	511873 Whirlpool Refrigerator Paint
31	606755 Whirlpool Refrigerator Bag
31	833938 Whirlpool Refrigerator Terminal
31	WPL 799833
31	285006 Whirlpool Spray
31	WPL 876029
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	TAPE, VINYL (3/4 X 108“)
31	WP542638 Whirlpool Refrigerator Grease
31	WP505587 Whirlpool Refrigerator Sealer
31	WP503695 Whirlpool Refrigerator Sealer
31	876370 Whirlpool Refrigerator Insulation
31	350956 Whirlpool Spray Assembly
