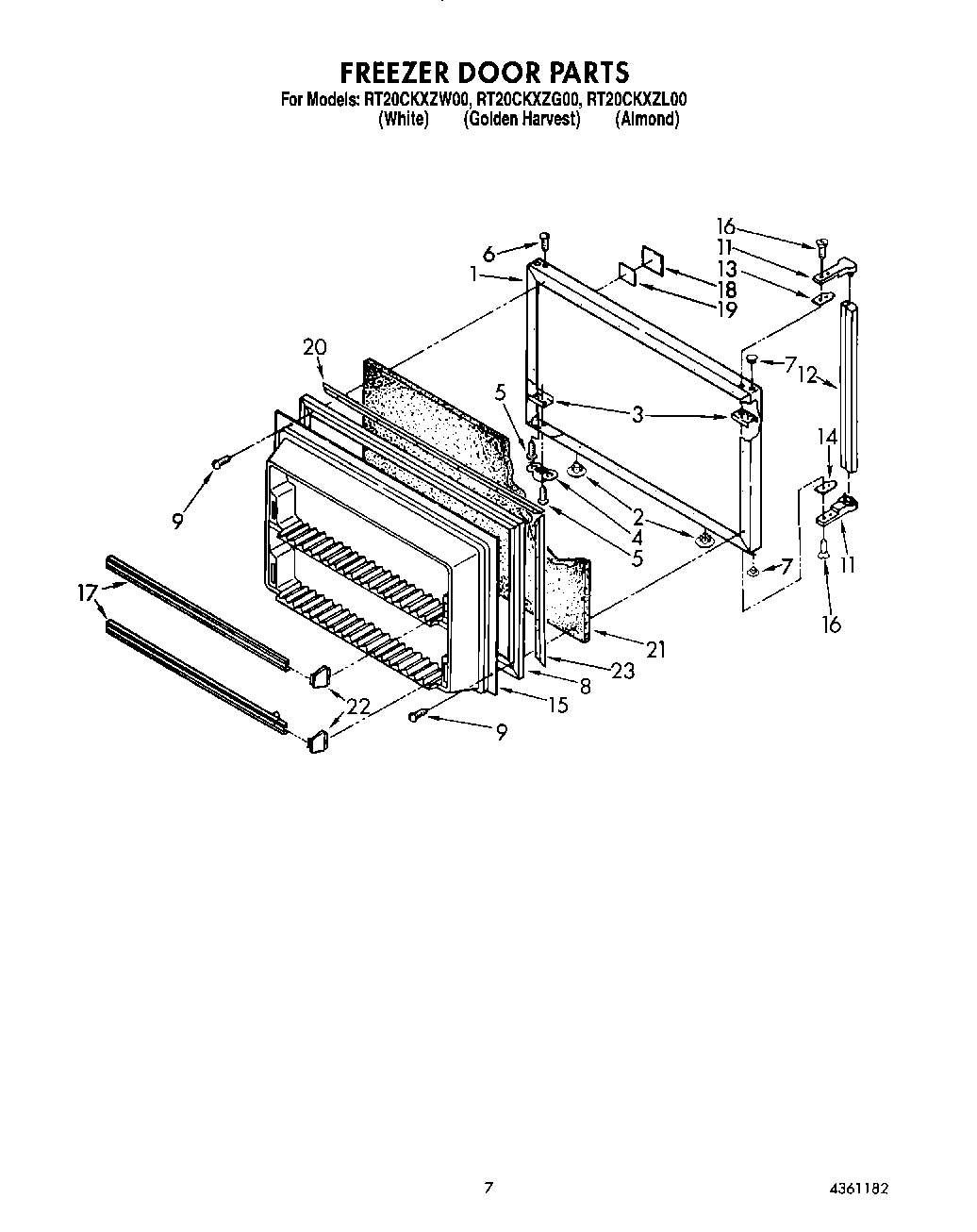

RT20CKXZL00 06 – FREEZER DOOR
Written by
in
RT20CKXZL00 06 – FREEZER DOOR
Products
Position
Product
1
Panel, Freezer Door (Also Order Item 21) (Golden Harvest)
1
Panel, Freezer Door (Also Order Item 21) (Almond)
1
Panel, Freezer Door (Also Order Item 21) (White)
2
Hole Plug (2)
2
Hole Plug (2) (Golden Harvest)
2
Hole Plug (2) (Almond)
3
W10833053 Whirlpool Refrigerator Plate
4
Bracket, Door Stop
5
WP488921 Whirlpool Refrigerator Screw
6
WP8281206 Whirlpool Refrigerator Screw
7
Hole Plug (Almond)
7
WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8
2188460A Whirlpool Refrigerator Door Gasket
9
WP489069 Whirlpool Compactor Screw
11
Handle End
12
Handle, Center
13
Shim, Handle
14
Spa
15
Interior Door Panel
16
WP488920 Whirlpool Refrigerator Screw
17
Trim, Door (2)
18
Nameplate
19
Tape Strip
20
Gasket Retainer, Top & Bottom
21
WPL 876029
22
4386917 Whirlpool Endcap Kit
23
Retainer, Gasket
←
