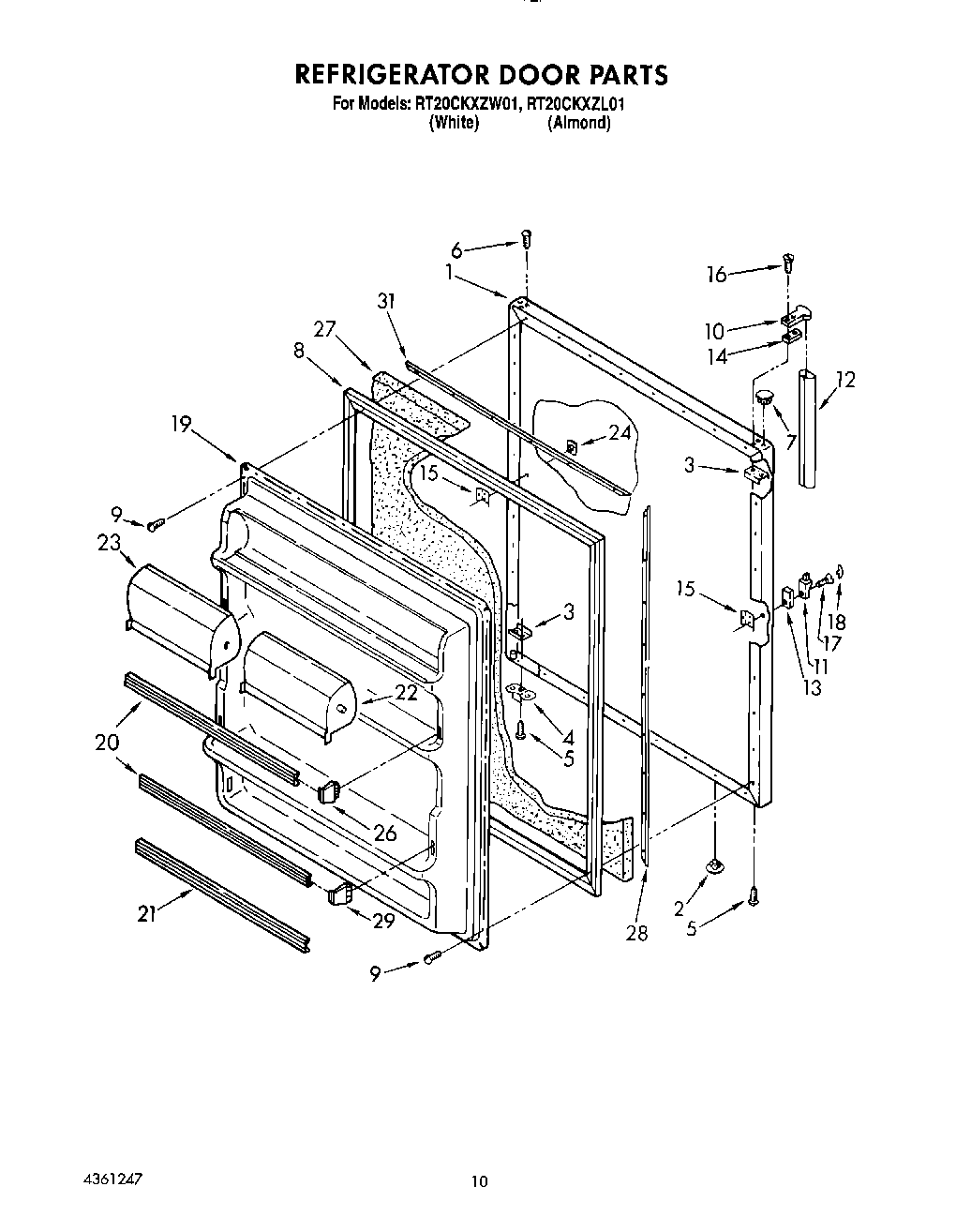

RT20CKXZW01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT20CKXZW01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT20CKXZW01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT2154075
	WPL LIT4361247
	WPL LIT2150256
	WPL LIT2152543
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End,
12	Handle, Center
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Cover, End Cap
19	Interior Door Panel
20	Trim, Door (2)
21	Trim, Door
22	Compartment, Butter Door
23	Compartment Door, Utility
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
26	4386917 Whirlpool Endcap Kit
28	Gasket, Retainer
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
31	350956 Whirlpool Spray Assembly
31	Almond (Uncut)
31	Leveler (Thinner)
31	350930 Whirlpool White Spray Paint
31	WP72107 Whirlpool Touchup
31	Gasket Retainer, Top & Bottom
31	799344 Whirlpool Refrigerator Paint
31	72017 Whirlpool Appliance Touch-Up Paint White
31	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31	Golden Harvest (Uncut)
31	TAPE, VINYL (3/4 X 108“)
31	WP505587 Whirlpool Refrigerator Sealer
31	WPL 799833
31	WPL 876029
31	WP503695 Whirlpool Refrigerator Sealer
31	876370 Whirlpool Refrigerator Insulation
31	833938 Whirlpool Refrigerator Terminal
31	285006 Whirlpool Spray
31	72032 Whirlpool Touch Up Paint Black
31	606755 Whirlpool Refrigerator Bag
31	511873 Whirlpool Refrigerator Paint
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	350942 Whirlpool Spray Paint
31	212643 Whirlpool Refrigerator Permagum Sealer
31	WP542638 Whirlpool Refrigerator Grease
