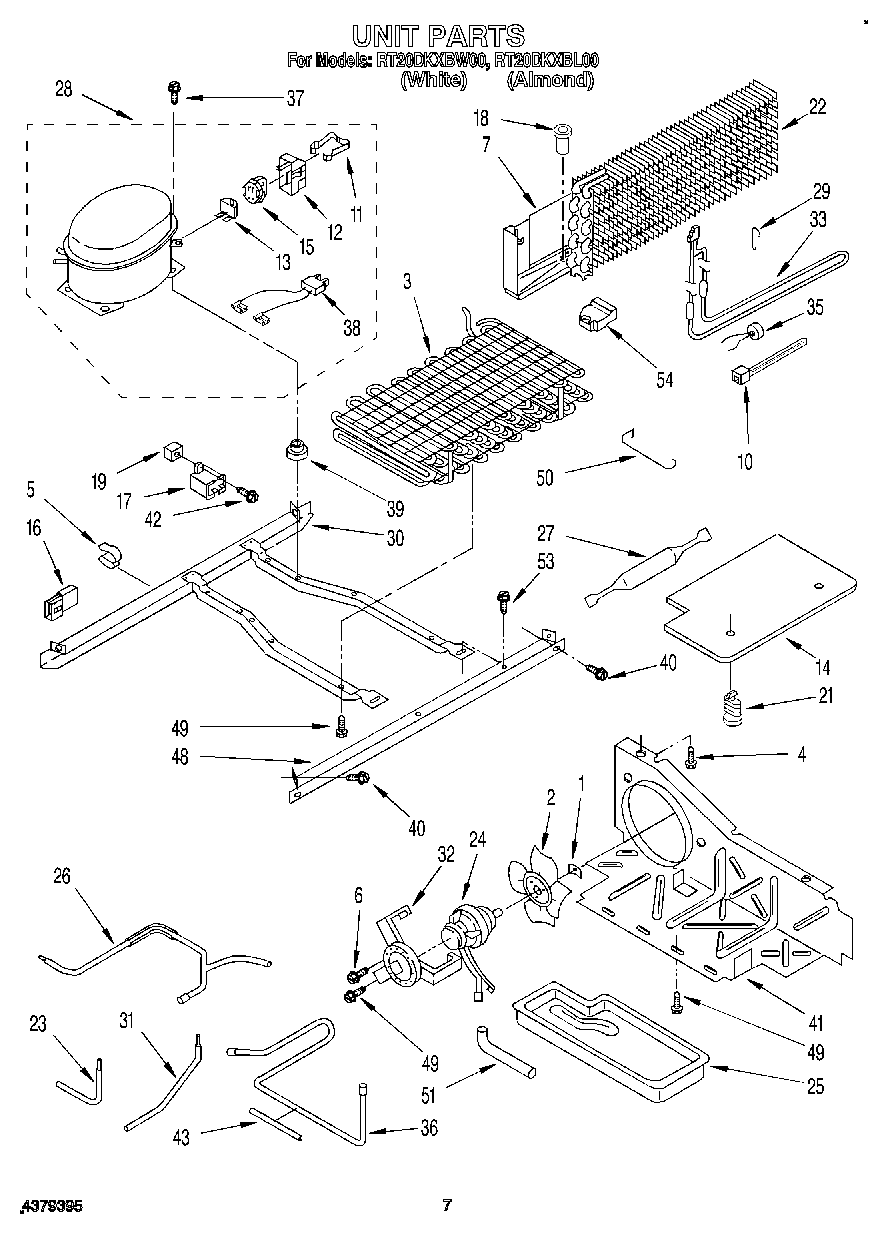

RT20DKXBW00 06 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Drain Pan/ Heat Shield
10WPW10339879 Whirlpool Wire Tie
11Strap
12Cover
13OVERLOAD
14Cover-Unit Btm.
15Relay (See Overload)
16Housing Plug
17Capacitor
18Drain Fitting
19Screw Grommet
21489396 Whirlpool Refrigerator Clip
22Evaporator
232154109 Whirlpool Refrigerator Tube
24833697 Whirlpool Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Tube, Discharge
27W10843121 Whirlpool Refrigerator Tube
28876765 Whirlpool Primary Mounting Kit Refrigerator
28W10439652 Whirlpool Refrigerator Compressor
29Support, Heater
30Unit Mounting Frame
31Tube, Condenser To Heat Loop
32Fan, Motor Bracket
33Heater, Defrost
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36Tube, Suction
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air Baffle
42W11693756 Whirlpool Screw Assembly
43SLEEVE
48Unit Mounting Rail
49WP489464 Whirlpool Refrigerator Screw
501105612 Whirlpool Fan Guard
51Drain Extension
53Screw, 1/4-28 x 1/2 (2)
54876764 Whirlpool Refrigerator Primary Valve
54VALVE, ACCESS (1/2“)
54Support (R.S.)
54WP978025 Whirlpool Refrigerator Valve
54VALVE, ACCESS (5/8“)
54978030 Whirlpool Refrigerator Valve
54978027 Whirlpool Refrigerator Primary Valve
54Support-Evaporator (L.S.)
54978026 Whirlpool Refrigerator Primary Valve
