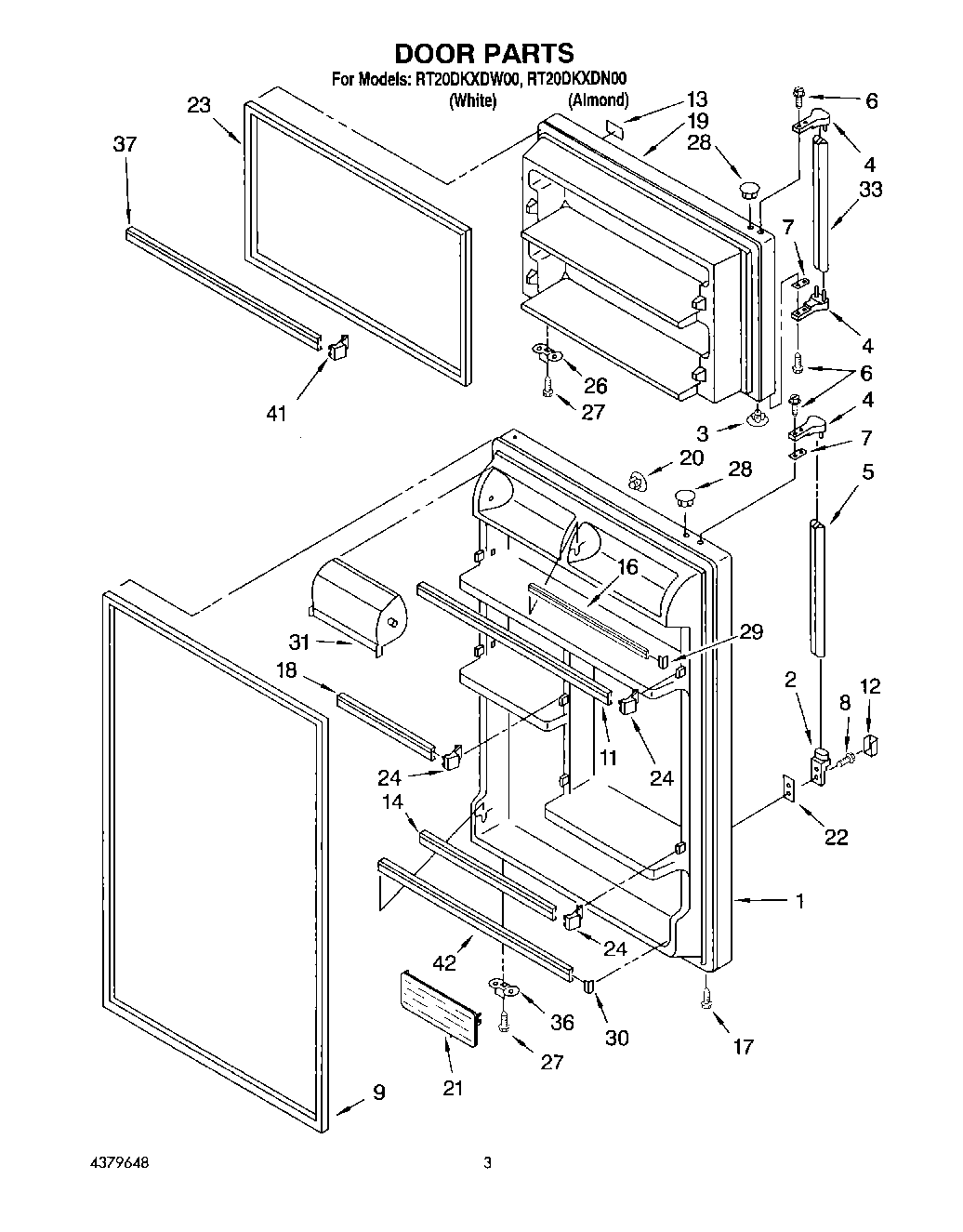

RT20DKXDW00 02 – DOOR

Products

Position	Product
1	Refrigerator Door Panel (White)
1	Refrigerator Door Panel (Almond)
2	Handle End,
3	Hole Plug (2)
3	Hole Plug (2) (Almond)
4	Handle End
5	Handle, Center
6	WP488920 Whirlpool Refrigerator Screw
7	Spa
8	WP488729 Whirlpool Refrigerator Door Screw
9	2159061 Whirlpool Refrigerator Door Gasket
11	Trim, Door Shelf
12	Cover, End Cap
13	Nameplate
14	Trim, Door Shelf
16	WP2163629 Whirlpool Refrigerator Door Trim
17	WP8281206 Whirlpool Refrigerator Screw
18	Trim, Door
19	Freezer Door Panel (Almond)
19	Freezer Door Panel (White)
20	Hole Plug, Handle (Almond)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	WP2188236 Whirlpool Refrigerator Shelf Door
22	Shim, Handle
23	WHITE DOOR GASKET-FIP
24	WP2195915 Whirlpool Door Shelf Support
26	Bracket, Door Stop
27	WP488921 Whirlpool Refrigerator Screw
28	Hole Plug (Almond)
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218118 Whirlpool Refrigerator Door Compressor
33	Handle, Center
36	W11745278 Whirlpool Bracket
37	TRIM-DOOR
41	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
42	Trim, Door
