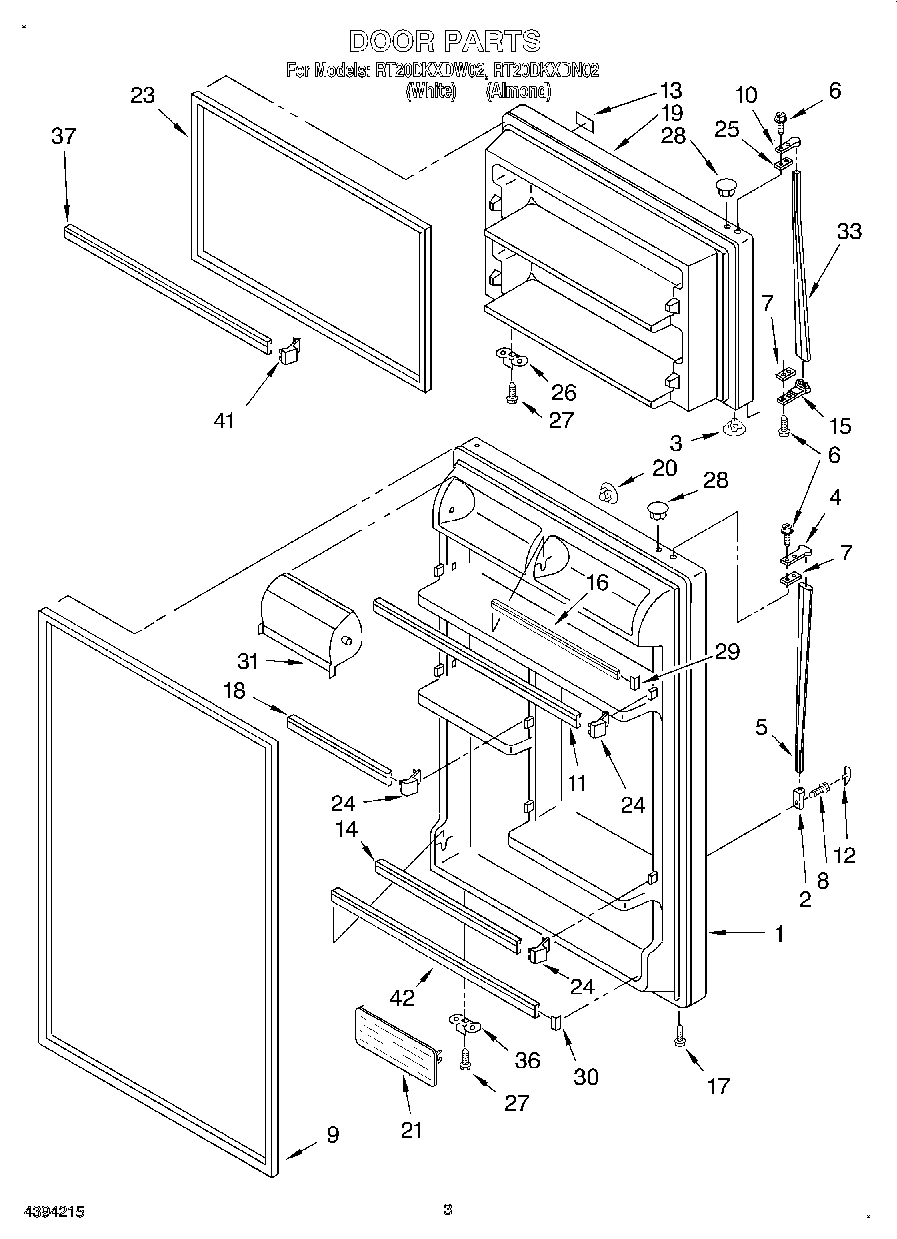

RT20DKXDW02 02 – DOOR

Products

Position	Product
1	Refrigerator Door Panel (Almond)
1	Refrigerator Door Panel (White)
3	Hole Plug (2) (Almond)
3	Hole Plug (2)
5	Handle, Center
6	WP488920 Whirlpool Refrigerator Screw
7	Spa
8	WP488729 Whirlpool Refrigerator Door Screw
9	2159061 Whirlpool Refrigerator Door Gasket
11	Trim, Door Shelf
12	WP1101634 Whirlpool Refrigerator Cover
13	Nameplate
14	Trim, Door Shelf
15	819342 Whirlpool Refrigerator Endcap Kit
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
18	Trim, Door
19	Freezer Door Panel (Almond)
19	Freezer Door Panel (White)
20	WP2189000 Whirlpool Refrigerator Handle Plug
20	Hole Plug, Handle (Almond)
21	WP2188236 Whirlpool Refrigerator Shelf Door
23	WHITE DOOR GASKET-FIP
24	WP2195915 Whirlpool Door Shelf Support
25	Shim, Handle
26	Bracket, Door Stop
27	WP488921 Whirlpool Refrigerator Screw
28	Hole Plug (Almond)
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218118 Whirlpool Refrigerator Door Compressor
33	Handle, Center
36	W11745278 Whirlpool Bracket
41	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
42	Trim, Door
