RT211ZCW0 02 – DOOR

RT211ZCW0 02 – DOOR

Written by

in

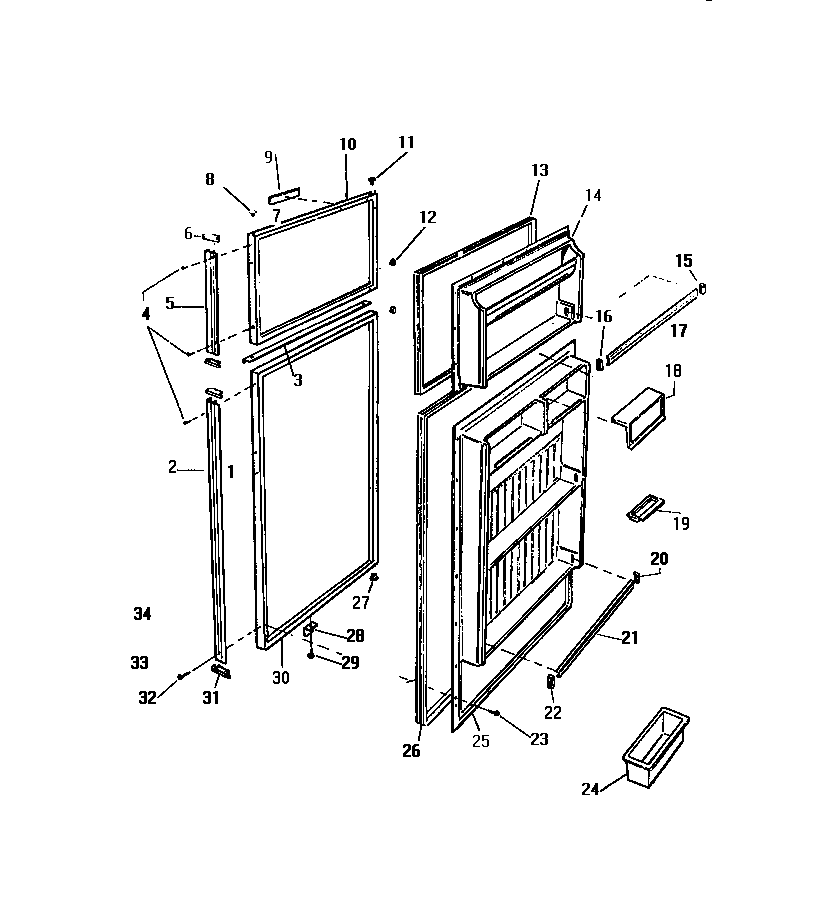

RT211ZCW0 02 – DOOR

Products

PositionProduct
*37441FIBERGLASS 34“X48“X11/2 “ TH
*37444WCI 467B371H22
*37443WCI G168338
*37440FIBERGLASS INSULATION 34“X48“X1“TH
*37449FIBERGLASS INSULATION 34“X48“X1/2“ TH
*37442PLASTIC BAG
1CLIP
2HANDLE-DOOR
3ATAPE, DBLE SIDE
3TRIM
3BCLEANING FLUID
5HANDLE-DOOR
7TRIM, TOP
8WCI G169332-01
9WCI R304001
10PANEL-FRZR WHITE
12240494001 Frigidaire Refrigerator Plug Button
13GASKET-FRZR
14WCI G179979-01
17RACK-DOOR
18WCI G179967-02
195308000716 Frigidaire Refrigerator Dish
20SUPPORT-RACK RH (3)
21RACK-DOOR (2)
22SUPPORT-RACK LH (3)
24CONTAINER-EGG
25WCI G179874-01
26GASKET-REF
27BEARING, HINGE (3)
28STOP, DOOR. PC & FC (2)
29218843801 Frigidaire Refrigerator Screw
30PANEL-REF WHITE
31CAP
31CAP
32WCI G185566
33TRIM, BTM
34TAPE, VINYL HANDLE ( ELM BURL FINISH )
