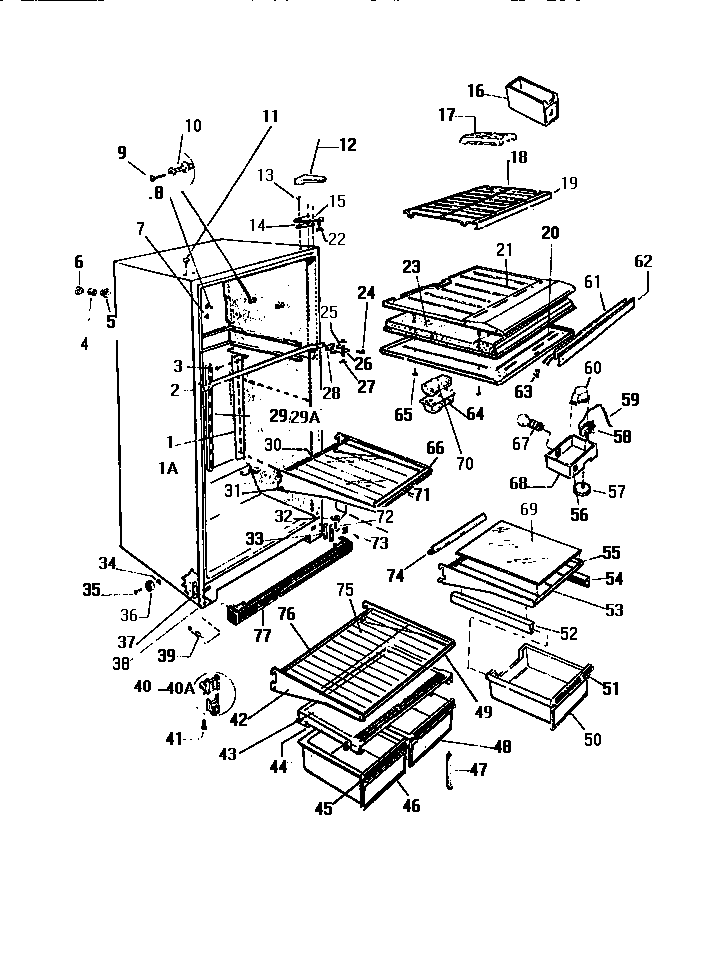

RT211ZCW0 03 – SHELVING

Products

Position	Product
*37445	WCI G176210
*37450	WCI G176589
*37451	TAPE, DBLE SIDE
1	CHANNEL, SHELF (2)
2	STRAP, MULLION MOUNTING
3	5304455852 Frigidaire Refrigerator Screw
4	TUBE, INSULATION (2)
5	WCI G174733
6	WCI G174734
7	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
8	WCI G163669
9	SCREW – SUPPORT TO LINER (8)
10	SUPPORT, SHELF (8)
11	WCI G174747–01
12	COVER HINGE, WHITE
13	241710601 Frigidaire Refrigerator Screw
14	WCI G183861
15	BRACKET, TOP HINGE
16	CONTAINER ICE
17	ICE TRAY
18	WCI G177415-03
19	TRIM
20	WCI G174757
21	WCI G174744
22	WASHER, NYLON
23	WCI G174758
24	SCREW, BRACKET MOUNTING (4)
25	WCI G142220
26	WCI G162384
28	SHIM, HINGE
29A	SCREW (3) (NON-ILLUSTRATED)
29	CHANNEL, CENTER SHELF, MOUNTING
30	TRIM, REAR
31	WCI G178323-04
32	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
33	SHIM, HINGE
34	NUT, DAMPER MOUNTING
35	WCI G162809
36	ROLLER (2)
37	WCI G141673
38	WCI G142361
39	WCI G162994
40A	ROLLER ASSY (2)
40	NUT, SPEED (2)
41	BOLT, HOUSING TO FRONT RAIL (2)
42	WCI G178323-06
43	WCI G162840-01
44	WCI G180108-02
46	PAN, FRUIT
47	WCI G166310-01
48	PAN, CRISPER
50	PAN, MEAT
51	WCI G177343-06
52	HANGER, LH
54	HANGER, RH
55	WCI G178324-03
56	LABEL
57	KNOB
58	COLD CONTROL
59	TUBE
60	215846604 Frigidaire Refrigerator Defrost Timer
61	WCI G177254
62	WCI G162051
63	5309918806 Frigidaire Refrigerator Light Switch Door
64	WCI G162178
65	SCREW (5)
66	TRIM-FRONT (NON-ILLUSTRATED)
67	SOCKET LIGHT
68	WCI G176722-02
70	DEFLECTOR AIR
71	WCI G171654-28
72	BRACKET-LOWER HINGE
73	SCREW – 1/4 X 1 (2)
74	TRIM, REAR
75	WCI G171654-30
76	TRIM-REAR (NON-ILLUSTRATED)
77	WCI G163080-03
