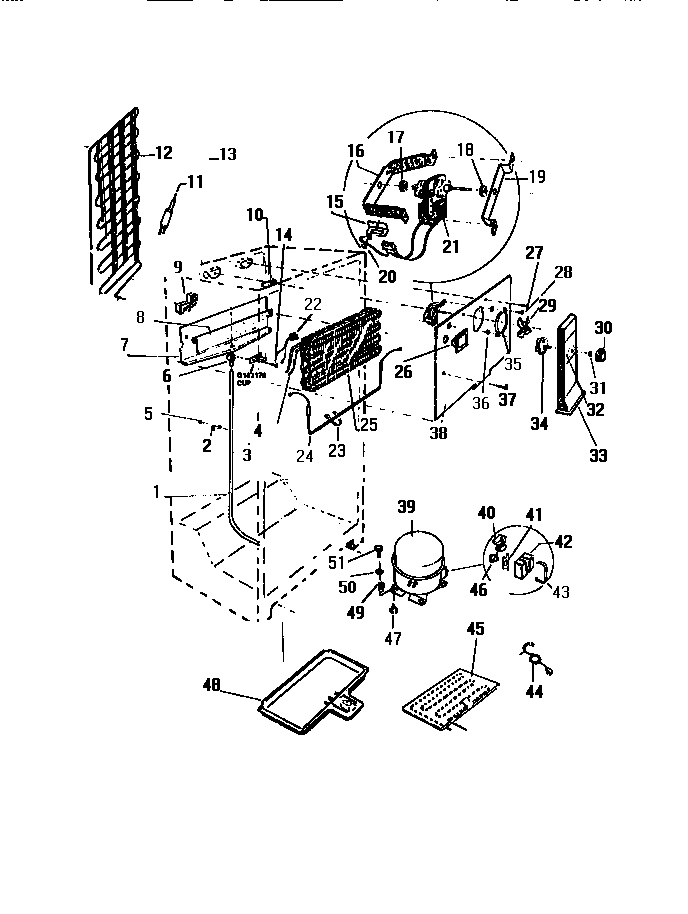

RT211ZCW0 04 – COOLING SYSTEMadmin2025-04-26T10:24:32+00:00RT211ZCW0 04 – COOLING SYSTEM
Products
| Position | Product |
|---|
| *37448 | HARNESS COMPR |
| *37447 | WCI G183584 |
| *37446 | BRACKET, COND. MTG (4) |
| 1 | WCI G166529-05 |
| 2 | WCI G101747 |
| 3 | HEAT EXCHANGER REPAIR KIT |
| 6 | ELBOW, DRAIN |
| 7 | WCI G170071 |
| 8 | INSULATOR |
| 9 | WCI G186277 |
| 10A | WCI G163099 |
| 10 | BLOCK, EVAPORATOR, LH |
| 11A | WCI R900125 |
| 11 | DRIER-REGULAR |
| 12 | WCI G183612 |
| 13 | WCI G176210 |
| 14 | PIN PUSH SPOUT (2) |
| 15 | WCI G164571 |
| 16 | BRACKET, REAR MOTOR MOUNTING |
| 18 | G187559 Frigidaire Refrigerator Bushing |
| 19 | BRACKET, FRONT MOTOR MOUNTING |
| 21 | 5300158289 Frigidaire Evaporator Fan Motor |
| 22 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 23 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 24 | 5317842502 Frigidaire Defrost Heater |
| 25 | EVAPORATOR |
| 26 | PLUG, DECORATIVE |
| 27 | 5304455650 Frigidaire Refrigerator Screw |
| 28 | 218843801 Frigidaire Refrigerator Screw |
| 29 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 30 | WCI G162663-13 |
| 31 | NUT, DAMPER MOUNTING |
| 32 | LABEL-FAN CVR |
| 33 | WCI G179793-02 |
| 34 | WCI G162681 |
| 35 | RING, FAN ORIFICE |
| 36 | NUT, ORIFICE (2) |
| 37 | WCI G187383 |
| 38 | WCI G162050-02 |
| 39A | COMPRESSOR W/ELECT. |
| 39 | WCI R2001073 |
| 40 | WCI G182225-17 |
| 41 | CLIP, OVERLOAD |
| 43 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 44 | WCI G162548-01 |
| 45 | WCI G187875 |
| 46 | WCI G187874 |
| 47 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 48 | PAN, DEFROST |
| 49 | SLEEVE COMP MTG (3) |
| 50 | WCI G168120 |
| 51 | WCI G154589 |
