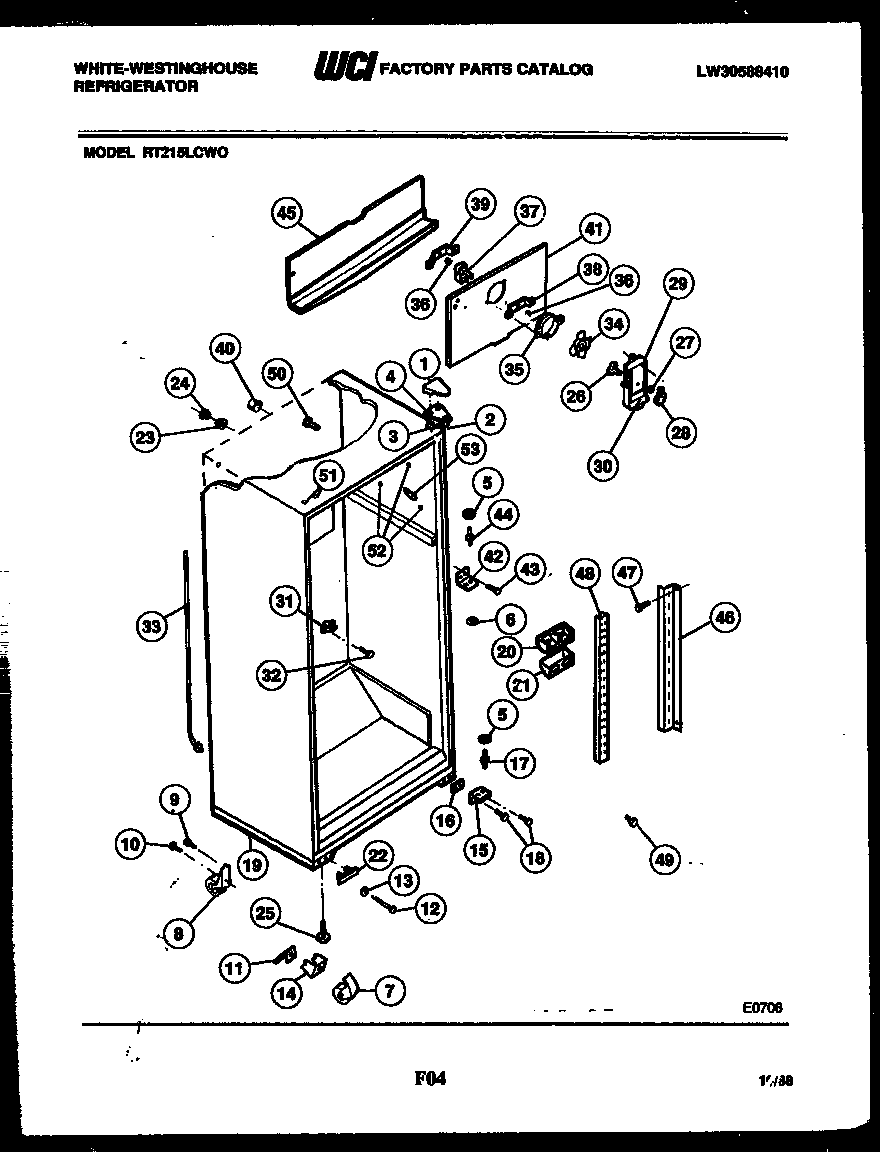

RT215LCD0 03 – CABINET PARTS

Products

Position	Product
*16580	BUTTON, LINER
*16581	TAPPING, PLATE (2)
1	COVER, TOP HINGE, ALMOND
2	BRACKET, TOP HINGE
3	WCI G183861
4	241710601 Frigidaire Refrigerator Screw
5	WCI G103903
6	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7	ROLLER FRONT, ADJUSTABLE (2)
8	ROLLER, REAR (2)
9	5304455651 Frigidaire Refrigerator Screw
10	BOLT ROLLER (2)
11	SPRING-ROLLER (2)
12	BOLT-ROLLER (2)
13	WASHER
14	SUPPORT, ROLLER (2)
15	BRACKET-HINGE
16	SHIM, HINGE
17	5303001321 Frigidaire Refrigerator Lower Hinge Pin
19	WCI G490004-02
20	DEFLECTOR AIR
21	WCI G162178
22	WCI G166912
23	WCI G174733
24	WCI G174734
25A	NUT, ANCHOR (2)
25	LEG-LEVELING (2)
26	DAMPER FAN COVER
27	NUT, DAMPER MOUNTING
28	WCI G162663-15
29	WCI G179793-02
29A	5304455650 Frigidaire Refrigerator Screw
30	LABEL-FAN CVR
31	SPOUT DRAIN TUBE
32	PIN PUSH SPOUT (2)
33A	RING, SEAL (NON-ILLUSTRATED)
33	TUBE, DRAIN
34	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
35	RING, FAN ORIFICE
36	G187559 Frigidaire Refrigerator Bushing
37	5300158289 Frigidaire Evaporator Fan Motor
38	WCI G185302
39	WCI G185303
40	TUBE, INSULATION (2)
41A	NUT, ORIFICE (2)
41	WCI G184609
42	BRACKET, HINGE CENTER
43	SCREW, BRACKET MOUNTING (4)
44	WCI G142220
45	WCI G177534
46	CHANNEL, SHELF (2)
47	5304455852 Frigidaire Refrigerator Screw
48	WCI G189341
49	SCREW (3) (NON-ILLUSTRATED)
50	WCI G163669
51	WCI G174747-11
52A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
52	5304509705 Frigidaire Refrigerator Grommet
53	TRIM-CORNER, ALMOND (4)
53	WCI G179684-09
53	TRIM CORNER (4), AVOCADO
53	WCI G179684-01
