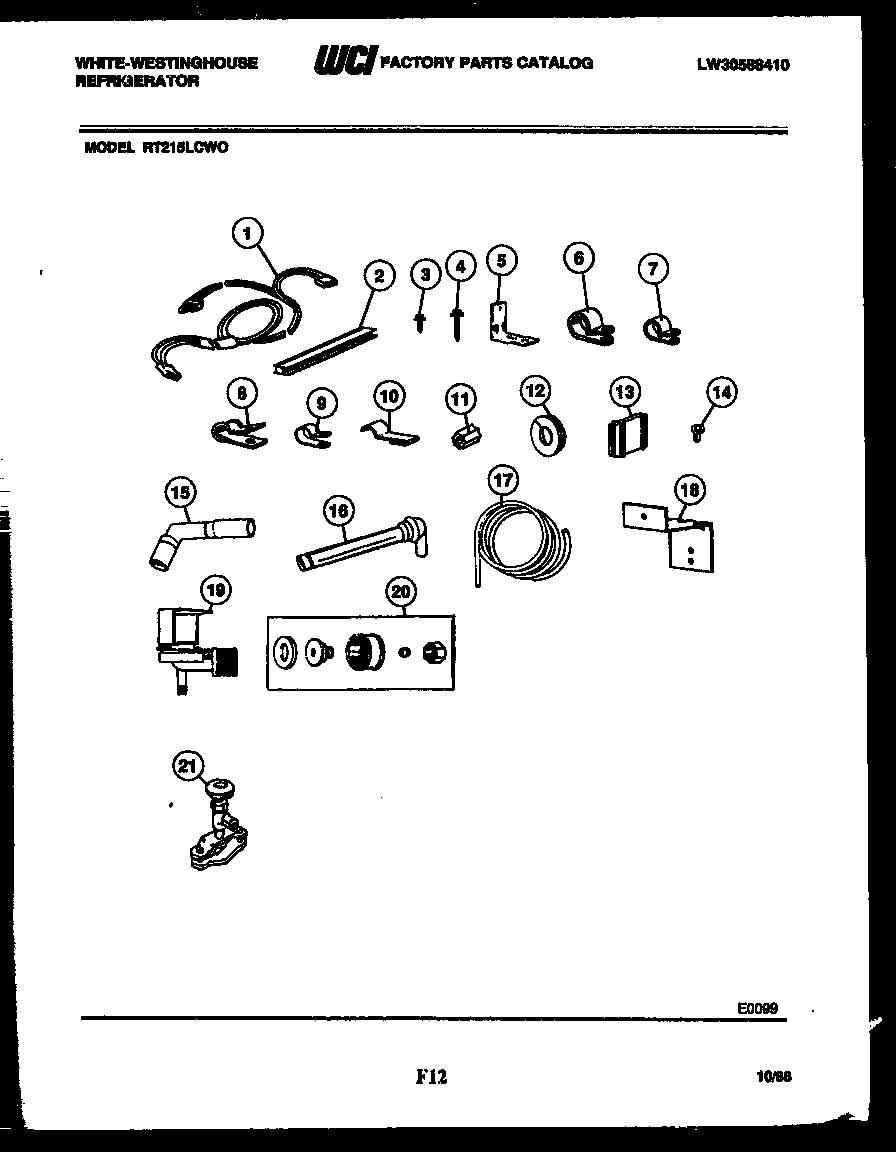

RT215LCH0 07 – ICE MAKER INSTALLATION PARTS

Products

Position	Product
1	WCI G185266
2	5305877995 Frigidaire Refrigerator P-1 Sealing Strip
3	5308000039 Frigidaire Refrigerator Screw
4	5304455852 Frigidaire Refrigerator Screw
5	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
6	240396801 Frigidaire Refrigerator Tube Clamp
7	CLAMP-TUBE (NON-ILLUSTRATED)
8	5304455846 Frigidaire Refrigerator Clamp
9	5303001193 Frigidaire Refrigerator Clamp
10	CLIP, HARNESS LOCATION
11	NUT, INLET TO SOLENOID VALVE
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
13	WCI G160347
14	WCI G154156
15	WCI G165773
16	215456100 Frigidaire Refrigerator Water Inlet Tube
17	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
18	BRACKET, VALVE TO REAR PANEL
19	WCI G159914
20	WCI G159415
21	WCI G99428
