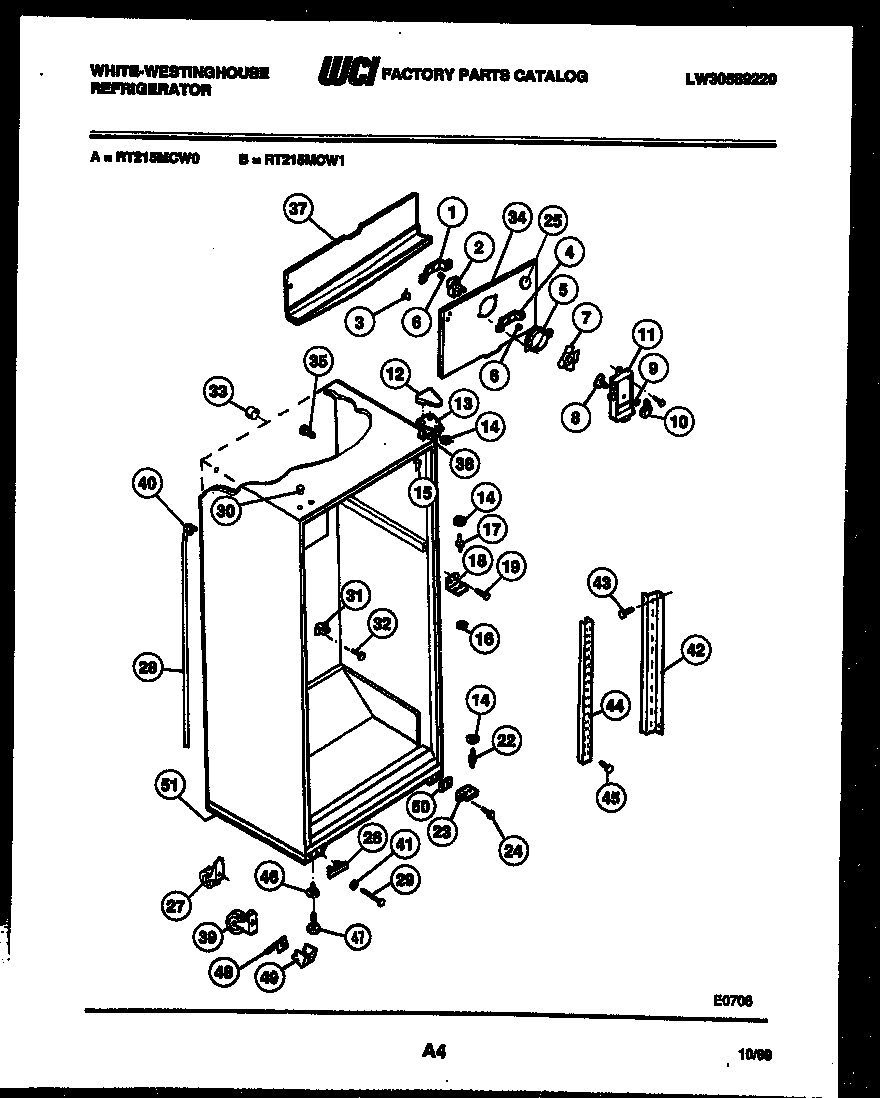

RT215MCV1 03 – CABINET PARTS

Products

Position	Product
*24101	BUTTON, LINER
*24101	WCI G174733
*24102	WCI G174734
*24101	TAPPING PLATE (2)
1	WCI 3205119
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI G185302
5	RING, FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3001331
9	NUT, DAMPER MOUNTING
10	WCI 3206381
11B	WCI 5303206545
11	WCI 5303206544
12	COVER, TOP HINGE, AVOCADO
13	BRACKET, TOP HINGE
14	WCI G103903
15	CORNER TRIM-AVOCADO
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
18	BRACKET, HINGE CENTER
19	WCI 08012258
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	HINGE-BRACKET-BOTTOM
24	241710601 Frigidaire Refrigerator Screw
25	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
26	WCI G166912
27B	BOLT ROLLER (2)
27	ROLLER, REAR (2)
28	WCI 3001458
28A	5304455651 Frigidaire Refrigerator Screw
29	BOLT-ROLLER (2)
30	WCI G174747-08
31	SPOUT DRAIN TUBE
32	PIN-PUSH
33	TUBE, INSULATION (2)
34B	NUT, ORIFICE (2)
34A	5304455650 Frigidaire Refrigerator Screw
34	WCI 08013665
35	WCI G163669
37	DRAIN TROUGH
38	WCI G183861
39	ROLLER FRONT, ADJUSTABLE (2)
40	RING, SEAL (NON-ILLUSTRATED)
41	WASHER
42	WCI 08000302
43	5304455852 Frigidaire Refrigerator Screw
44	CHANNEL-CENTER (NON-ILLUSTRATED)
45	WCI 08016568
46	NUT, ANCHOR (2)
47	LEG-LEVELING (2)
48	SPRING-ROLLER (2)
49	SUPPORT, ROLLER (2)
50	SHIM, HINGE
51	WCI G490004-02
