RT216JCD5 04 – SHELVES AND SUPPORTS

RT216JCD5 04 – SHELVES AND SUPPORTS

Written by

in

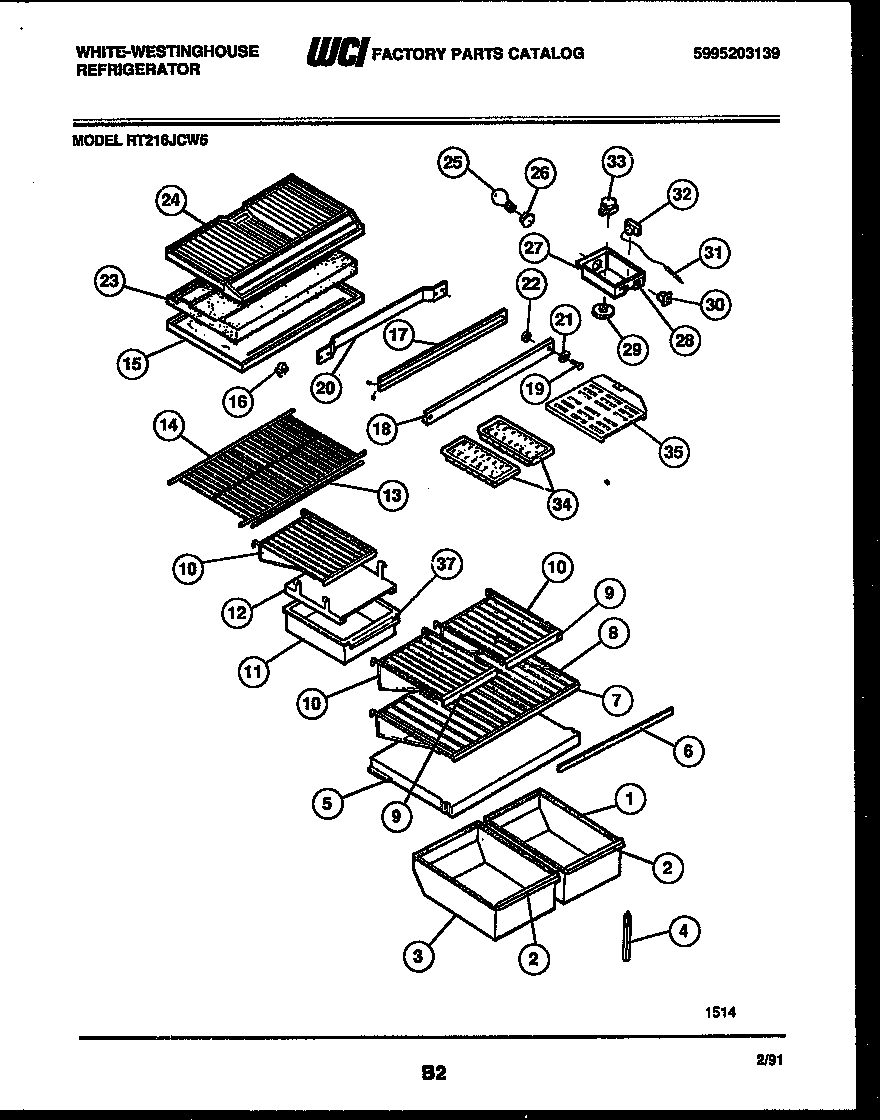

RT216JCD5 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303001642
3PAN-CRISPER R.S.
4WCI 5303206505
5COVER-CRISPER PAN
6GASKET-CRISPER COVER (NON-ILLUSTRATED)
7WCI 5318726710
8WCI 5303001639
9TRIM-FRONT (3)
10WCI R000901104
11WCI 5317691803
12WCI 5303200492
13TRIM-FRONT
14WCI 3916129
14AEND CAP-SHELF,PROTECTOR
15TOP-REFRIGERATOR
15AWCI 5303001380
165309918806 Frigidaire Refrigerator Light Switch Door
17WCI 5303210351
18WCI 5303200370
19WCI 5308012258
20WCI 5308010008
23WCI 5308013674
23AHARNESS-DIVIDER (NON-ILLUSTRATED)
24BOTTOM, FREEZER
25316538904 Frigidaire Oven Lamp Light
26SOCKET-LIGHT/LAMP
27BOX-CONTROL
28WCI G000180197
29WCI 5308010011
30SWITCH-ENERGY SAVER, SLIDE TYPE
31TUBE
32WCI 5303200810
32AWCI 5303001260
33215846604 Frigidaire Refrigerator Defrost Timer
33A5304455649 Frigidaire Refrigerator Screw
34215667501 Frigidaire Refrigerator Ice Tray Primary
35A5304455650 Frigidaire Refrigerator Screw
35WCI G186095-02
37TRIM-MEAT PAN
