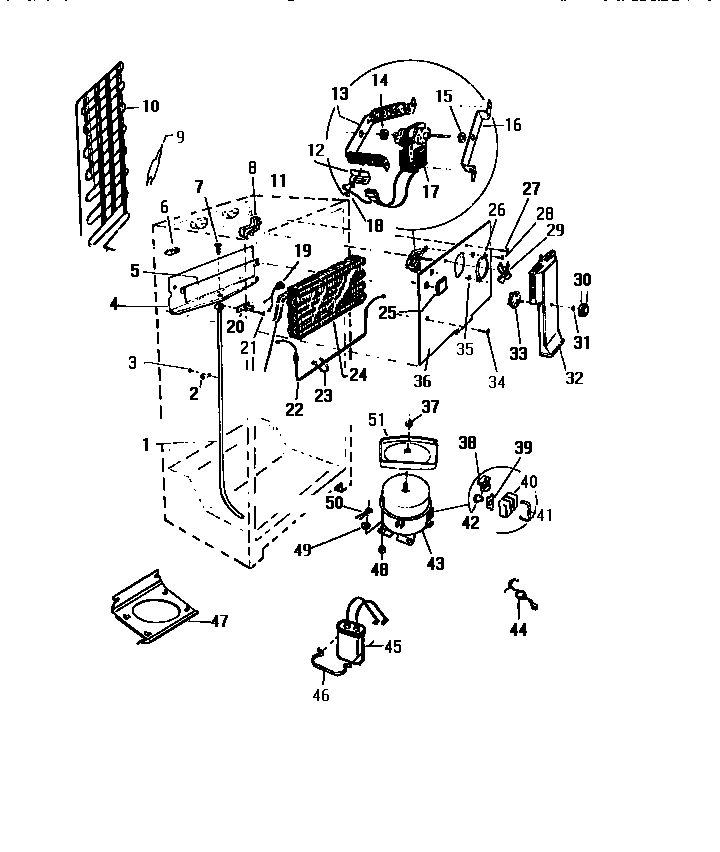

RT216JCF0 04 – COOLING SYSTEM

Products

Position	Product
*49450	WCI G183584
1	WCI G1849250-01
2	WCI G101747
4	WCI G177534
5	INSULATOR
6	WCI 162807
7	WCI G101620
8	PLUG, EVAPORATOR INSULATION BLOCK, R H
9	DRIER-REGULAR
9	WCI R900125
10A	BRACKET-CONDENSER MOUNTING (4)
10B	WCI G179024
10	WCI G1631331
10	WCI R901138
11	BLOCK, EVAPORATOR, RH
12	WCI G164571
13	WCI G185303
15	G187559 Frigidaire Refrigerator Bushing
16	WCI G185302
17	5300158289 Frigidaire Evaporator Fan Motor
18	WCI Q401601
19	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
20	SPOUT DRAIN TUBE
21A	HEAT, EXCHANGE
21	WCI Q4041601
21B	HEAT EXCHANGER REPAIR KIT
22	5317842502 Frigidaire Defrost Heater
23	STRAP-ALUMINUM (2)
24	EVAPORATOR
25	PLUG, DECORATIVE
26	RING, FAN ORIFICE
28	218843801 Frigidaire Refrigerator Screw
29	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
30	LABEL-FAN CVR
30A	WCI 162663-13
31	NUT, DAMPER MOUNTING
32	WCI G179793-02
33	DAMPER FAN COVER
34	5304455650 Frigidaire Refrigerator Screw
35	NUT, ORIFICE (2)
36	WCI R901126
37	NUT, LOCK
38	WCI G182225-02
39	CLIP, OVERLOAD
41	5303006412 Frigidaire Refrigerator Cover Mounting Strap
42	WCI G179794
43	WCI C620100
44	CORD, SERVICE
48	218513300 Frigidaire Refrigerator Compressor Mount Grommet
51	WCI G184716
