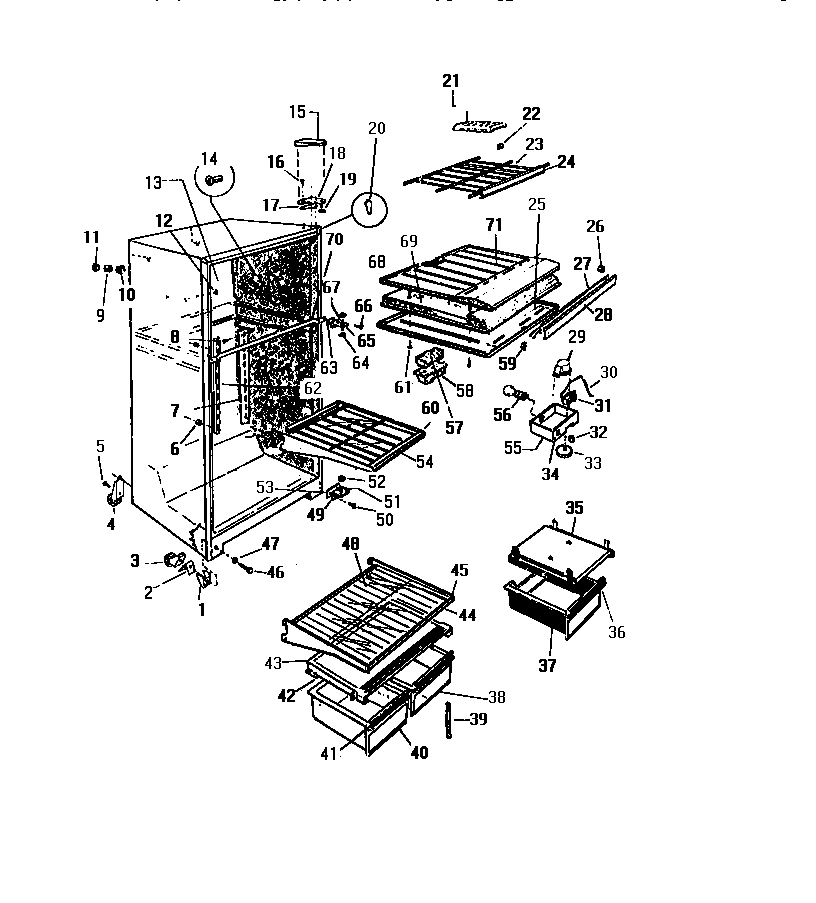

RT216JCF1 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

Position	Product
*49447	WCI G174747-10
*49449	WCI R901122
1	WCI R901108
2	SPRING-ROLLER (2)
3	ROLLER FRONT, ADJUSTABLE (2)
4	ROLLER, REAR (2)
5	BOLT ROLLER (2)
6	SPACER, FREEZER (2)
7	CHANNEL, SHELF (2)
7A	WCI G106567
8	5304455852 Frigidaire Refrigerator Screw
9	TUBE, INSULATION (2)
10	WCI G174733
11	WCI G174734
12	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
13	WCI G163699
14A	WCI R901124
14	WCI G167585
15	COVER HINGE, COFFEE
16	WCI G185566
17	WCI G183861
18	BRACKET, TOP HINGE
20	WCI G179684-10
21	ICE TRAY
21A	WCI R901110
22	WCI G166495-01
23	WCI R901101
25	WCI R901119
26	SPACER, MULLION (2)
27	WCI G177254
28	MULLION-WHTE
29	215846604 Frigidaire Refrigerator Defrost Timer
30	WCI G14217641
31	WCI G16220511
32	WCI G178402-02
33	KNOB
34	WCI G180197
35	WCI R901109
37	PAN, MEAT
38	WCI R901114
39	WCI R901111
40	WCI R901115
41	WCI G177343-06
42	WCI R901112
43	WCI R901113
45	WCI R901102
46	BOLT-ROLLER (2)
47	WASHER
48	WCI R901103
49	BRACKET, HINGE, LOWER
50	241710601 Frigidaire Refrigerator Screw
51	WCI G166506
52	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
53	SHIM, HINGE
54	WCI R901104
55	WCI G176722-01
56	SOCKET LIGHT
57	DEFLECTOR AIR
58	WCI G162178
59	5309918806 Frigidaire Refrigerator Light Switch Door
60	TRIM-FRONT (NON-ILLUSTRATED)
61	5304455650 Frigidaire Refrigerator Screw
62	CHANNEL, CENTER SHELF, MOUNTING
63	WCI R1121970
64	WCI G103903
65	BRACKET, HINGE CENTER
66	SCREW, BRACKET MOUNTING (4)
67	WCI G142220
68	WCI G164356
69	WCI R901121
70	WCI C490087
71	WCI R901120
