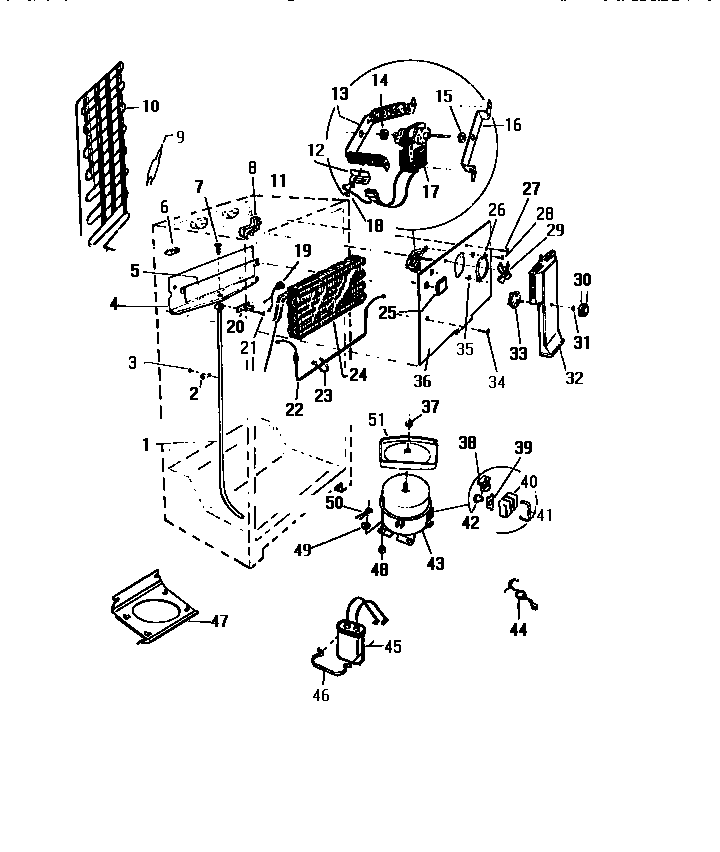

RT216JCH1 04 – COOLING SYSTEMadmin2025-04-26T10:24:33+00:00RT216JCH1 04 – COOLING SYSTEM
Products
| Position | Product |
|---|
| *49451 | HARNESS COMPR |
| *49450 | WCI G183584 |
| 1 | WCI G1849250-01 |
| 2 | WCI G101747 |
| 4 | WCI G177534 |
| 5 | INSULATOR |
| 6 | WCI 162807 |
| 7 | WCI G101620 |
| 8 | PLUG, EVAPORATOR INSULATION BLOCK, R H |
| 9 | DRIER-REGULAR |
| 9 | WCI R900125 |
| 10A | BRACKET-CONDENSER MOUNTING (4) |
| 10B | WCI G179024 |
| 11 | BLOCK, EVAPORATOR, RH |
| 12 | WCI G164571 |
| 13 | WCI G185303 |
| 15 | G187559 Frigidaire Refrigerator Bushing |
| 16 | WCI G185302 |
| 17 | 5300158289 Frigidaire Evaporator Fan Motor |
| 18 | WCI Q401601 |
| 19 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 20 | SPOUT DRAIN TUBE |
| 21A | HEAT, EXCHANGE |
| 21B | HEAT EXCHANGER REPAIR KIT |
| 21 | WCI Q4041601 |
| 22 | 5317842502 Frigidaire Defrost Heater |
| 23 | STRAP-ALUMINUM (2) |
| 24 | EVAPORATOR |
| 25 | PLUG, DECORATIVE |
| 26 | RING, FAN ORIFICE |
| 28 | 218843801 Frigidaire Refrigerator Screw |
| 29 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 30A | WCI 162663-13 |
| 30 | LABEL-FAN CVR |
| 31 | NUT, DAMPER MOUNTING |
| 32 | WCI G179793-02 |
| 33 | DAMPER FAN COVER |
| 34 | 5304455650 Frigidaire Refrigerator Screw |
| 35 | NUT, ORIFICE (2) |
| 36 | WCI R901126 |
| 37 | NUT, LOCK |
| 38 | WCI G182225-18 |
| 39 | CLIP, OVERLOAD |
| 41 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 42 | WCI G189006 |
| 43 | WCI R2001123 |
| 44 | CORD, SERVICE |
| 45 | CAPACITOR |
| 46 | STRAP-CAPACITOR |
| 47 | WCI R901125 |
| 48 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 49 | WASHER, COMPRESSOR MOUNTING (4) |
| 50 | CLIP, COMPRESSOR MOUNTING (4) |
| 51 | WCI G184716 |
