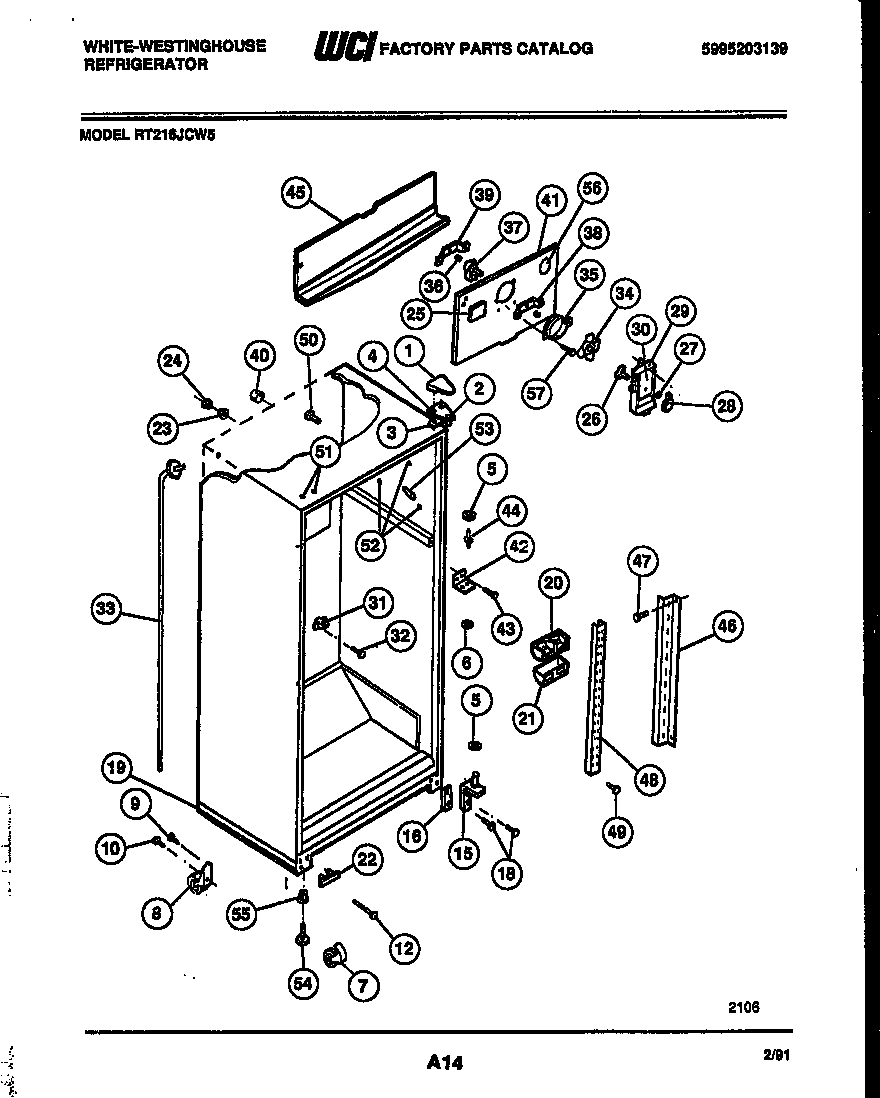

RT216JCW5 03 – CABINET PARTS

Products

PositionProduct
1COVER-UPPER HINGE, WHITE
2ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
2BRACKET-UPPER HINGE
3SHIM – UPPER HINGE
5WASHER, .34 X .62 X .05, NYLON
6WCI 5308000186
7WCI 5303212490
8WCI 5308009773
10BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
12WCI 5303212598
15ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
15BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
15BRACKET-LOWER HINGE, W/ HINGE PIN
16WCI 5303212488
18241710601 Frigidaire Refrigerator Screw
19WCI 5303212487
20DEFLECTOR-AIR
21WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
21COVER – AIR DEFLECTOR
22SPACER-MULLION MTG, STEEL
23WCI 5303001286
24WCI 5303001287
25BUTTON – DECORATIVE PLUG
26DAMPER-FAN COVER
27Nut,push-on
28WCI 5316266315
29WCI 5317979302
30WCI 5300180298
31WCI 5308000056
32WCI 5303001361
33AWCI 5303207353
33WCI 5303210377
345308000010 Frigidaire Refrigerator Evaporator Fan Blade
35RING-FAN ORIFICE
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
38WCI 5303001226
39BRACKET-MOTOR MTG, REAR
39AWCI 5308000107
40TUBE-RUBBER
41A5304455650 Frigidaire Refrigerator Screw
41COVER, COIL
41BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
42BRACKET-CTR HINGE
43WCI 5308012258
44WCI 5308000184
45WCI 5303001470
46CHANNEL, RH & LH
475304455852 Frigidaire Refrigerator Screw
48WCI 5303015409
49WCI 5308016568
50SUPPORT-COIL COVER
51PLUG-BUTTON, WHITE
52A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
525304509705 Frigidaire Refrigerator Grommet
53TRIM-CABINET CORNER, WHITE
565303208309 Frigidaire Refrigerator Plug Hole
56APLUG, BUTTON, CABINET LINER (NI)
575304455651 Frigidaire Refrigerator Screw
