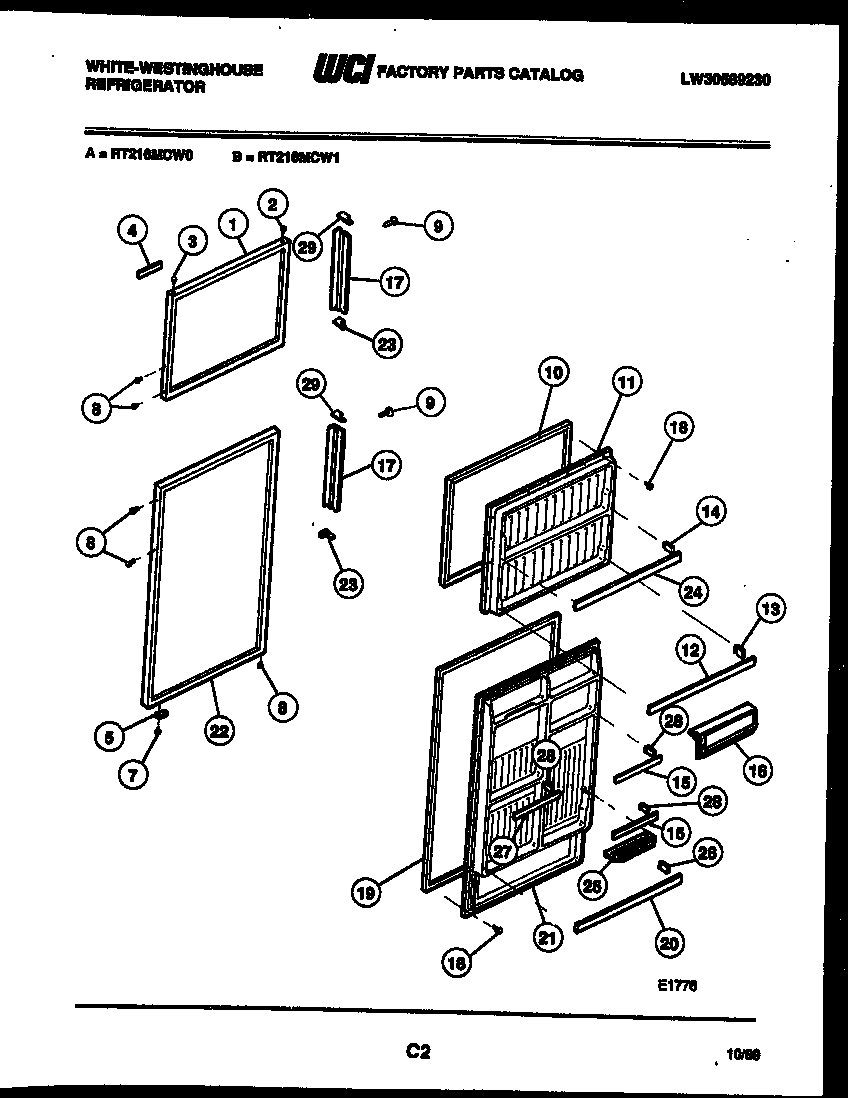

RT216MCD1 02 – DOOR PARTSadmin2025-04-26T10:25:19+00:00RT216MCD1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *24346 | TRIM, TOP |
| *24346 | WCI 5303206514 |
| *24346 | WCI 3206307 |
| *24346 | INSULATION-BULK |
| 1 | WCI G187355-11 |
| 2 | WCI G169332-11 |
| 3 | WCI 08012007 |
| 4 | WCI 3206159 |
| 5 | DOOR STOP (2) |
| 8 | WCI G162977-11 |
| 9 | WCI G185566 |
| 10 | WCI G186803-14 |
| 11 | WCI 5303206509 |
| 12 | RACK-DOOR, FULL-WIDTH, WIDE |
| 13 | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 13A | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 15 | RACK-DOOR, SHORT, NARROW, (2) |
| 16A | TRIM-DAIRY DOOR (NON-ILLUSTRATED) |
| 16 | DOOR-DAIRY (INCLUDES TRIM) |
| 17 | HANDLE-FREEZER |
| 18 | 5304455651 Frigidaire Refrigerator Screw |
| 19 | WCI 3018792 |
| 20 | WCI 5303206518 |
| 21 | WCI 5303206513 |
| 22 | PANEL-REFRIGERATOR-ALMOND |
| 23A | CLIP |
| 23B | WCI G000179271 |
| 23 | WCI G000177143 |
| 24 | WCI 5303206511 |
| 25 | WCI 3206189 |
| 26 | SUPPORT-DOOR RACK, RH |
| 26A | SUPPORT-DOOR RACK, LH |
| 27 | WCI 5303206515 |
| 28A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 28 | 3206165 Frigidaire Bar Endcap Right Hand |
| 29 | CAP |
