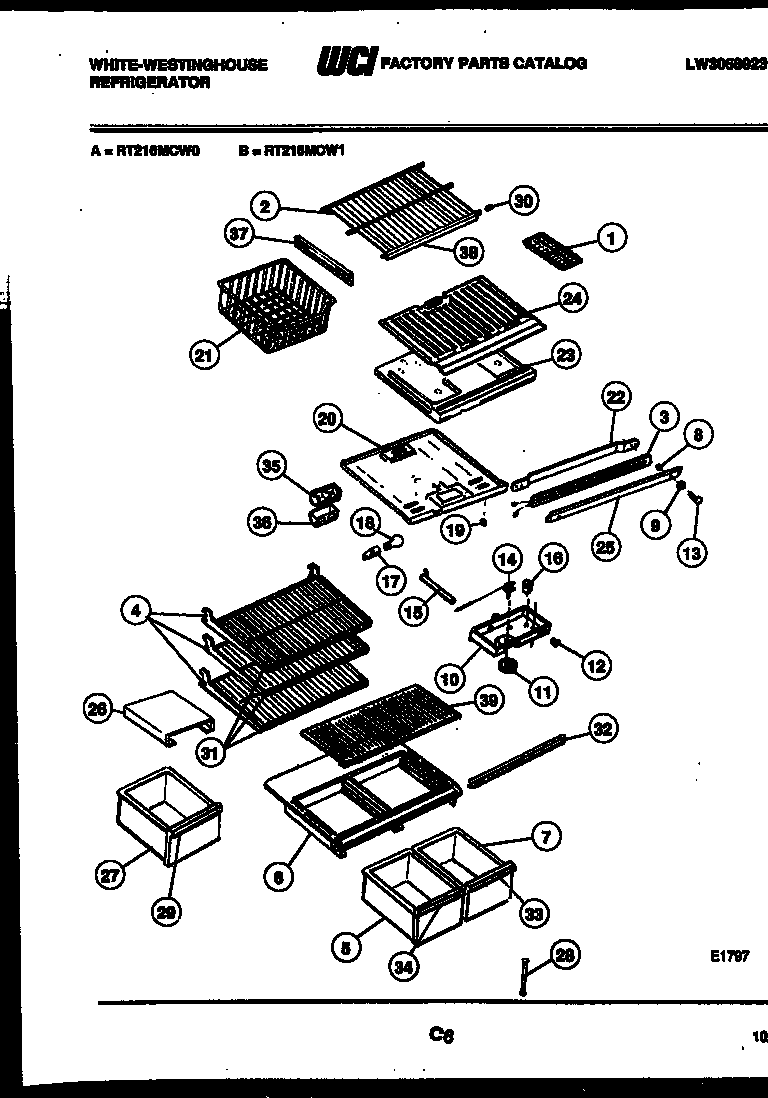

RT216MCD1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*24360WCI G186095-01
*24360RACK – HANGING – EGG
1215667501 Frigidaire Refrigerator Ice Tray Primary
2WCI 5303206769
2B5304509705 Frigidaire Refrigerator Grommet
2C5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
3WCI 3018916
4ACLIP, SHELF (8)
4SHELF-REFR (3)
5PAN – CRISPER – LH
6AWCI 3200329
6WCI 5303206538
7WCI 5303206534
8SPACER (NON-ILLUSTRATED)
9WASHER (2)
10A5304455650 Frigidaire Refrigerator Screw
10WCI 3206130
11KNOB-TEMP CONTROL
12WCI 3206129
13WCI 08012258
14CONTROL-TEMPERATURE
14AWCI G107080
15WCI 3018891
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20WCI 3019038
20ASCREW (5)
22WCI 08010008
23WCI 3019039
23AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
23B3205266 Frigidaire Refrigerator Edge Protector
24BOTTOM-FREEZER
25WCI 3200370
26WCI 5303206773
27WCI 5303206542
28SUPPORT-ADJ CRISPER COVER
29WCI 5303206541
30END CAP-SHELF,PROTECTOR
31TRIM-FULL SHELF, FRONT, (3)
32WCI 5303206540
33TRIM-CRISPER PAN-RH
34TRIM-CRISPER PAN-LH
35WCI 3204206
36WCI 3001546
38TRIM-FRZR SHELF
39INSERT-CRISPER CVR, GLASS
