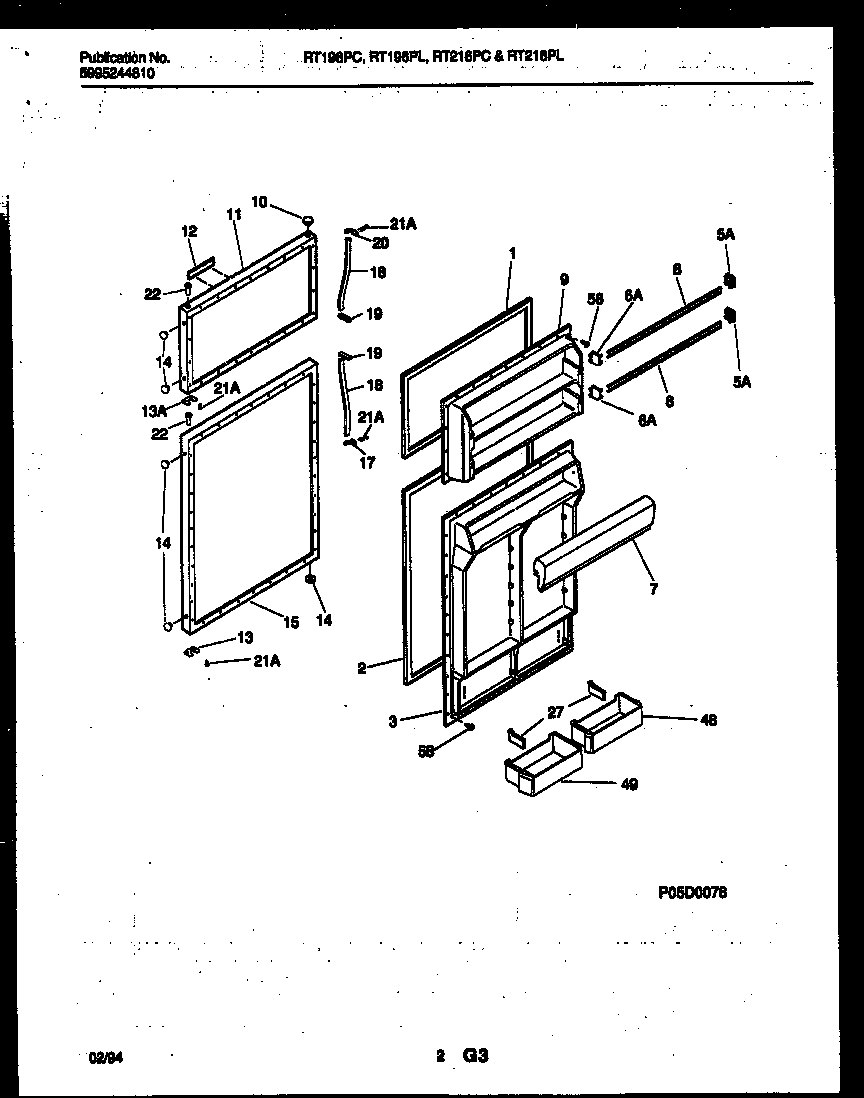

RT216PLD1 02 – DOOR PARTS

RT216PLD1 02 – DOOR PARTS

Written by

in

RT216PLD1 02 – DOOR PARTS

Products

PositionProduct
*85867INSULATION
1WCI 5318680314
2WCI 5303018792
3WCI 5303275674
5A3206165 Frigidaire Bar Endcap Right Hand
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7WCI 215918400
7WCI 5303001380
8WCI 5303280193
9WCI 5303206631
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL-FRZR DOOR, WHITE, W/INSULATION
12WCI 5303280047
12WCI 5303279148
12TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13WCI 5308000255
13DOOR STOP, REFR SECTION
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE, W/INSUL & BRACE
15WCI 215894100
17HANDLE END
18WCI 5303279626
18WCI 5303015111
18INSERT-HANDLE GRIP, ALMOND (NOT ILLUSTRATED)
19WCI 215365000
20HANDLE END
21AWCI 5308011745
22BEARING-HINGE
27WCI 5303279906
27WCI 5303275732
48WCI 5303279796
49WCI 5303279794
585304455651 Frigidaire Refrigerator Screw
