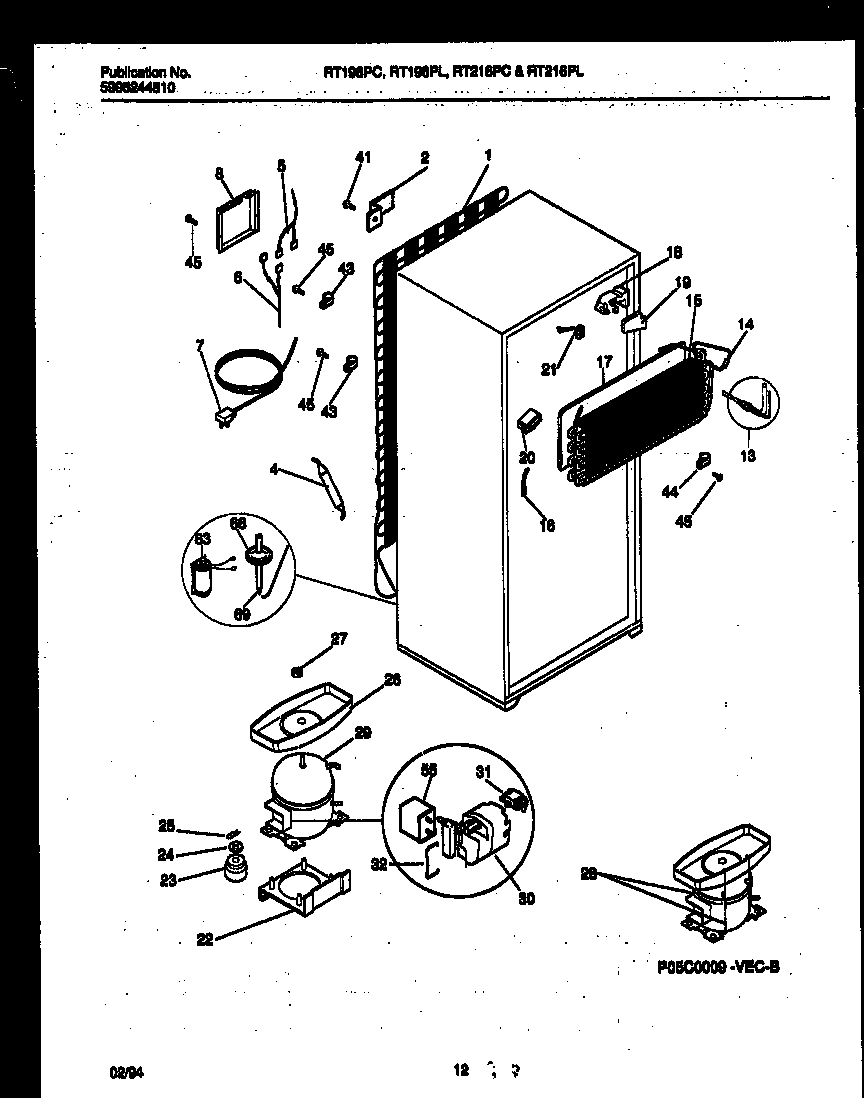

RT216PLD1 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
NI	5304455852 Frigidaire Refrigerator Screw
*85893	HOT TUBE REPAIR KIT-SERVICE
1	WCI 5300163133
1	5303017691 Frigidaire Refrigerator Spacer-Tube
2	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
6	WCI 215257001
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	WCI 215076400
14	5317842502 Frigidaire Defrost Heater
15	EVAPORATOR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	INSULATION BLOCK, RH
19	INSULATION PLUG, RH
20	INSULATION BLOCK, LH
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5308013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP - COMPRESSOR MTG
26	PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	WCI 5303917192
30	WCI 216008901
31	WCI 5303272819
32	WCI 215012000
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
63	CAPACITOR ASSY, START, W/BRACKET 66
69	WCI 215116300
