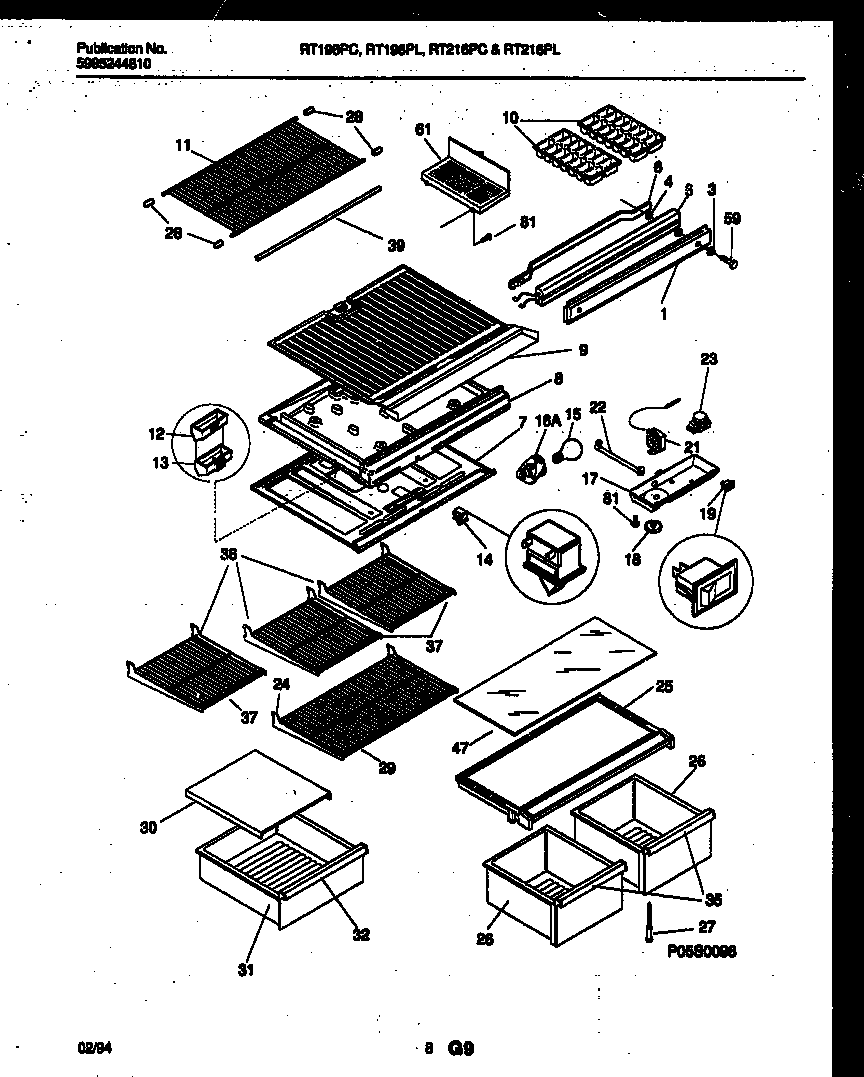

RT216PLW1 05 – SHELVES AND SUPPORTS

RT216PLW1 05 – SHELVES AND SUPPORTS

Written by

in

RT216PLW1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 3019038
7WCI 5303001380
8WCI 5303019039
83205266 Frigidaire Refrigerator Edge Protector
8HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303206769
125303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 3206130
17NUT, ANCHOR (NI)
18WCI 5303209251
19WCI 3206129
21WCI 5303018894
21WCI 5303001260
24WCI 5303273155
25WCI 5303206538
25WCI 5303280075
26WCI 5303280260
26WCI 5303299776
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 5303280077
30WCI 5303206773
31WCI 5303299810
32WCI 5303280134
35WCI 5303280130
35WCI 5303280131
36SHELF, CANTILEVER, HALF WIDETH, WIRE
37WCI 5303280076
39WCI 5303280080
47WCI 5303279701
59WCI 5308012258
61WCI 5318609501
61WCI 5303280051
815304455650 Frigidaire Refrigerator Screw
85887CLIP-CANTILEVER SHLF
