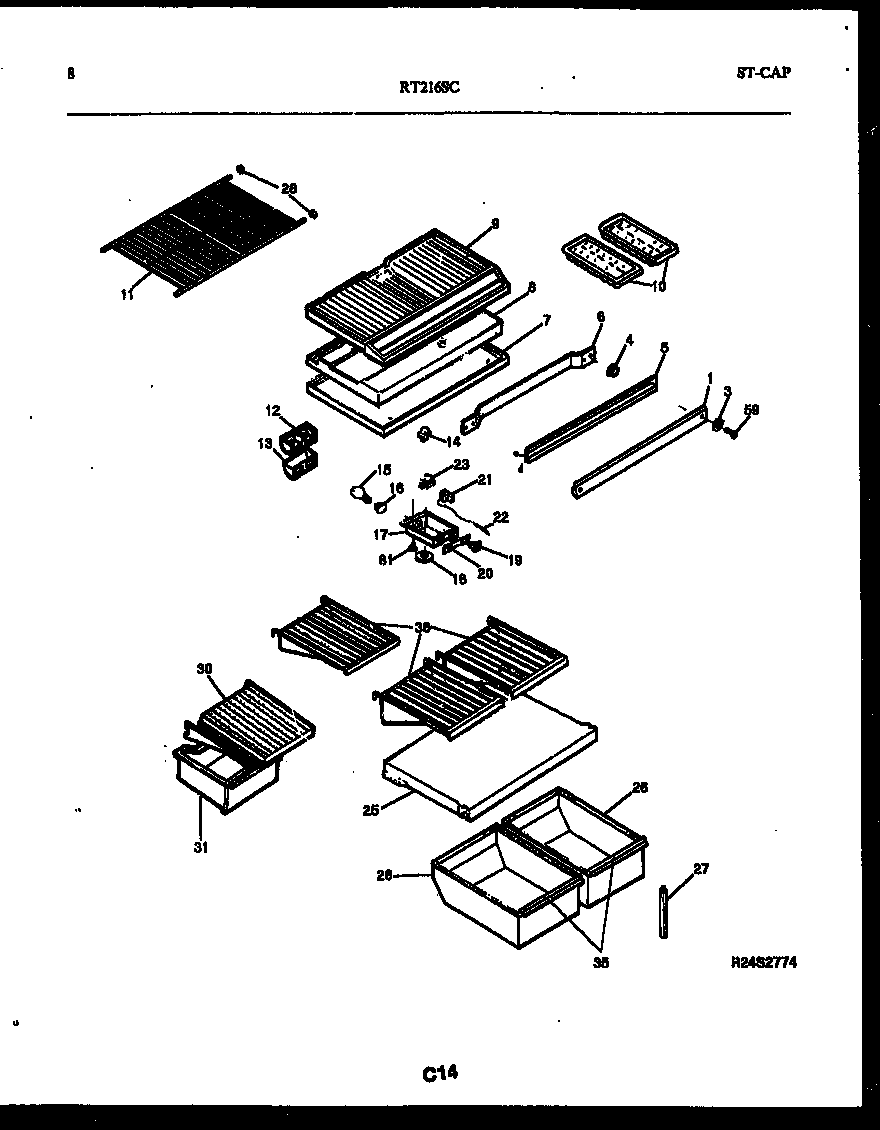

RT216SCH0 05 – SHELVES AND SUPPORTSadmin2025-04-26T10:25:02+00:00RT216SCH0 05 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | WCI 5303200368 |
| 3 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 4 | SPACER-MULLION MTG, STEEL |
| 5 | WCI 5303210351 |
| 6 | WCI 5308010008 |
| 7 | WCI 5303001380 |
| 7 | BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED) |
| 7 | TOP-REFRIGERATOR |
| 8 | WCI 5308013674 |
| 8 | HARNESS-DIVIDER (NON-ILLUSTRATED) |
| 9 | BOTTOM, FREEZER |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11 | WCI 3916129 |
| 12 | DEFLECTOR-AIR |
| 13 | COVER - AIR DEFLECTOR |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | SOCKET-LIGHT/LAMP |
| 17 | WCI 5303015152 |
| 18 | WCI 5308010011 |
| 19 | SWITCH-ENERGY SAVER, SLIDE TYPE |
| 20 | WCI 3202523 |
| 21 | WCI 5303200810 |
| 21 | WCI 5303001260 |
| 22 | TUBE |
| 23 | 5304455649 Frigidaire Refrigerator Screw |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 25 | COVER-CRISPER PAN |
| 26 | WCI 5303207637 |
| 26 | WCI 5303207482 |
| 27 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 28 | END CAP-SHELF,PROTECTOR |
| 30 | WCI 5318721302 |
| 30 | SCREW 8-18 X 3/8 (NON-ILLUSTRATED) |
| 30 | WCI 5318719503 |
| 30 | WCI 5318721402 |
| 31 | WCI 5303207481 |
| 35 | WCI 5303292008 |
| 35 | WCI 5303292009 |
| 36 | WCI 5303208240 |
| 59 | WCI 5308012258 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
| 67806 | CLIP-CANTILEVER SHLF |
