RT219MCH2 04 – SHELVES AND SUPPORTS

RT219MCH2 04 – SHELVES AND SUPPORTS

Written by

in

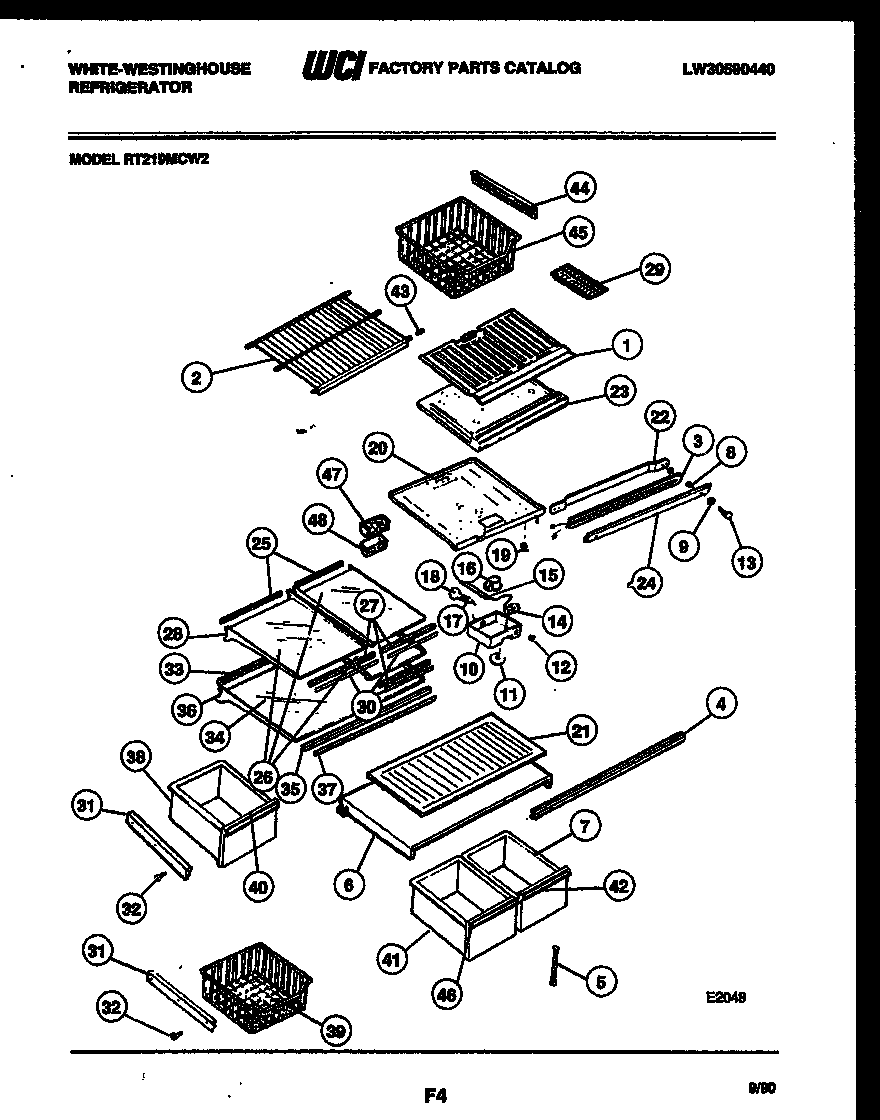

RT219MCH2 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*35743RACK – HANGING – EGG
*35743WCI 5318609501
1BOTTOM, FREEZER
2ATRIM-FRZR SHELF
2B5304509705 Frigidaire Refrigerator Grommet
2C5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2WCI 5303206520
3WCI 5303210351
4WCI 5303206540
5SUPPORT-CRISPER CVR, ADJUSTABLE
6AGASKET-CRISPER COVER (NON-ILLUSTRATED)
6WCI 5303206538
7WCI 5303206534
8SPACER-MULLION MTG, STEEL
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10WCI 3206130
10A5304455650 Frigidaire Refrigerator Screw
11WCI 5303201777
12WCI 3206129
13WCI 5308012258
14AWCI 5303001260
14WCI 5303018894
15WCI 3018891
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20WCI 3019038
20AWCI 5303001380
21INSERT-CRISPER CVR, GLASS
22WCI 5308010008
23B3205266 Frigidaire Refrigerator Edge Protector
23WCI 5303019039
23AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
24WCI 5303200367
25WCI 5303212111
25AWCI 5303212110
26WCI 5303211202
26AWCI 5303211831
27RETAINER-GLASS, (3) (NON-ILLUSTRATED)
28AWCI 5303209266
28WCI 5303209270
29215667501 Frigidaire Refrigerator Ice Tray Primary
30TRIM – MK & BASKET SHELF (2)
30ATRIM-1/2 SHELF
31HANGER-PAN LH
31AHANGER-PAN RH (NON-ILLUSTRATED)
32WCI 08014528
33TRIM-FULL SHELF, SNAP-ON, REAR, (3)
34SHELF-GLASS, FULL SHELF, (3)
35WCI 5303209274
36FRAME-FULL SHELF, CANTILEVER, (2)
37TRIM-FULL SHELF, FRONT, (3)
38WCI 5303206542
39WCI 5303206543
40WCI 5303206541
41PAN – CRISPER – LH
42TRIM-CRISPER PAN-RH
43END CAP-SHELF,PROTECTOR
44WCI 5303206521
44AHANGER-BASKET, LH (NON-ILLUSTRATED)
45WCI 5303206524
46TRIM-CRISPER PAN-LH
47WCI 3204206
48COVER – AIR DEFLECTOR
