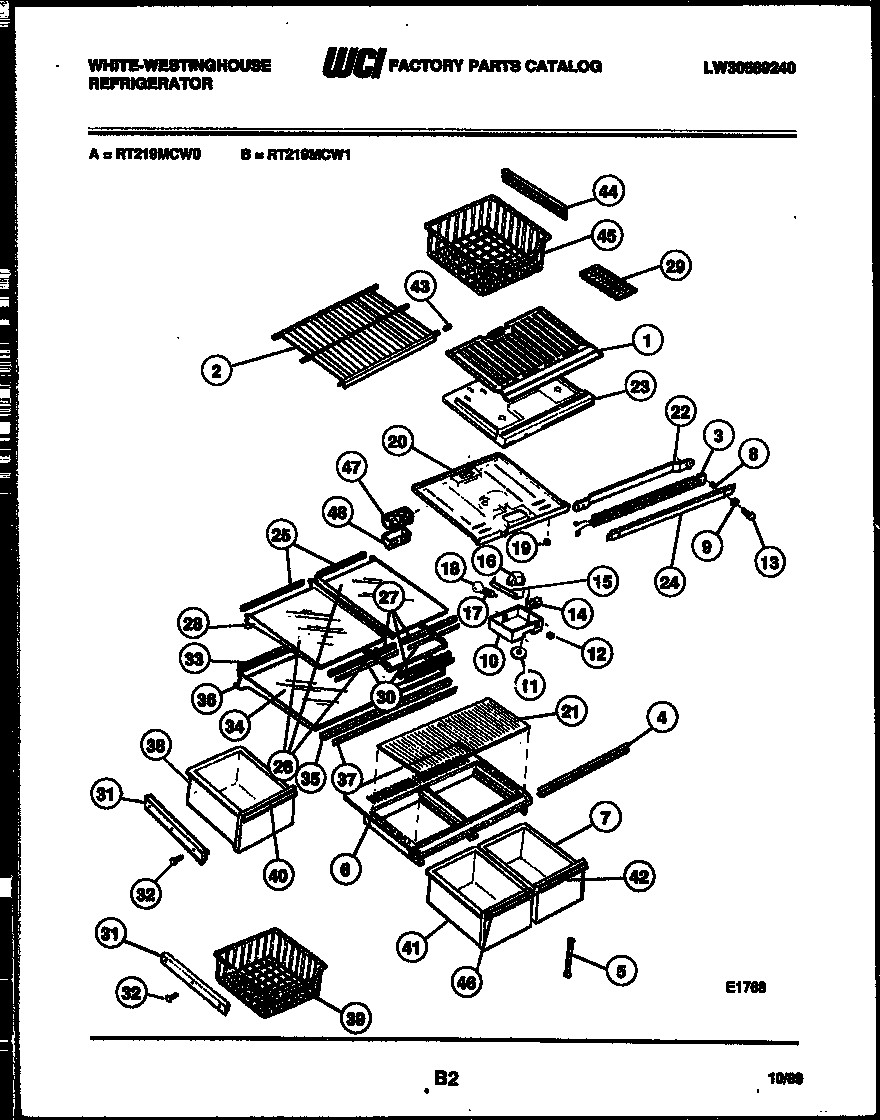

RT219MCV0 04 – SHELVES AND SUPPORTS

RT219MCV0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*23341WCI G186095-01
*23341RACK - HANGING - EGG
*23341CLIP, SHELF (8)
1BOTTOM-FREEZER
2B5304509705 Frigidaire Refrigerator Grommet
2ATRIM-FRZR SHELF
2WCI 5303206520
2C5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
3WCI 3018916
4WCI 5303206540
5SUPPORT-ADJ CRISPER COVER
6AWCI 3200329
6WCI 5303206538
7WCI 5303206534
8SPACER (NON-ILLUSTRATED)
9WASHER (2)
10A5304455650 Frigidaire Refrigerator Screw
10WCI 3206130
11KNOB-TEMP CONTROL
12WCI 3206129
13WCI 08012258
14AWCI G107080
14CONTROL-TEMPERATURE
15WCI 3018891
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20WCI 3019038
20ASCREW (5)
21INSERT-CRISPER CVR, GLASS
22WCI 08010008
23WCI 3019039
23AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
23B3205266 Frigidaire Refrigerator Edge Protector
24MULLION-AVOC
25ATRIM - REAR SHELF RETAINER - MK & BASKET SHELF (2)
25TRIM-REAR SHELF RETAINER-1/2 SHELF RETAINER
26AGLASS-1/2 SHELF
26GLASS - MK & BASKET SHELF (2)
27RETAINER-MEAT SHELF
27AWCI 3200610
28AWCI 3200613
28WCI 3200617
29215667501 Frigidaire Refrigerator Ice Tray Primary
30TRIM - MK & BASKET SHELF (2)
30ATRIM-1/2 SHELF
31HANGER-LH (NON-ILLUSTRATED)
31AWCI 3018890
32WCI 08014528
33WCI 5303206535
34ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
34WCI 5303206536
35RETAINER-GLASS-FULL SHELF
36WCI 3200616
37TRIM-FULL SHELF, FRONT, (3)
38WCI 5303206542
39WCI 5303206543
40WCI 5303206541
41PAN - CRISPER - LH
42TRIM-CRISPER PAN-RH
43END CAP-SHELF,PROTECTOR
44WCI 5303206521
44AHANGER-BASKET, LH (NON-ILLUSTRATED)
45WCI 5303206524
46TRIM-CRISPER PAN-LH
47WCI 3204206
48WCI G162178
