RT219MCV2 02 – DOOR PARTS

RT219MCV2 02 – DOOR PARTS

Written by

in

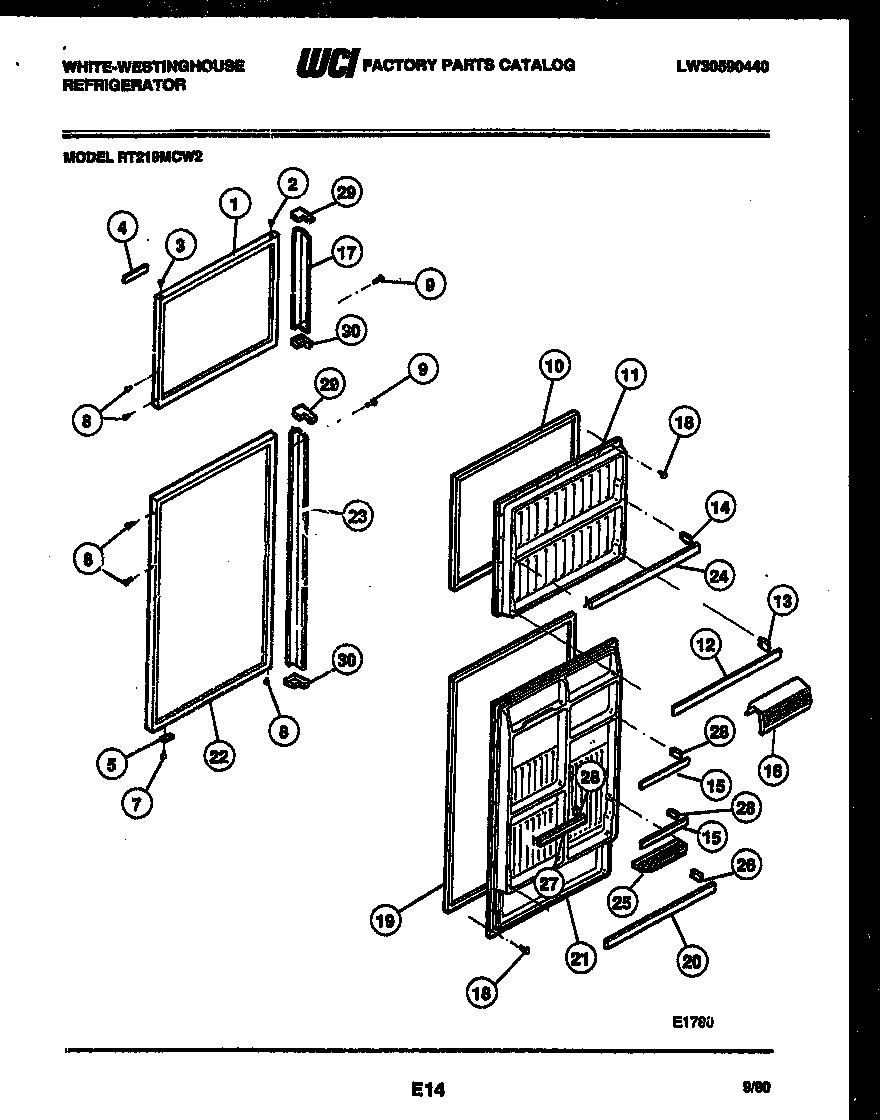

RT219MCV2 02 – DOOR PARTS

Products

PositionProduct
*35720WCI 3206307
*35720WCI 5303206514
*35720WCI 5300179271
*35720INSULATION-BULK (NON-ILLUSTRATED)
1WCI G187355-08
2BUTTON-AVOCADO
3BEARING-HINGE
4WCI 3206159
5WCI 5308000255
8BUTTON-AVOCADO
9WCI 5308011745
10WCI 5318680314
11WCI 5303206509
12RACK-DOOR, FULL-WIDTH, WIDE
13ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
13SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
15RACK-DOOR, SHORT, NARROW, (2)
16DOOR-DAIRY (INCLUDES TRIM)
17HANDLE-FREEZER
18218843801 Frigidaire Refrigerator Screw
19WCI 5303018792
20WCI 5303206518
21WCI 5303206513
22WCI 5303916622
23HANDLE-REF
24WCI 5303206511
25WCI 3206189
26ASUPPORT-DOOR RACK, LH
26SUPPORT-DOOR RACK, RH
27WCI 5303206515
28A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
283206165 Frigidaire Bar Endcap Right Hand
29BWCI 5300179270
29AWCI 5300177144
29WCI 5300177142
30WCI 5300177143
