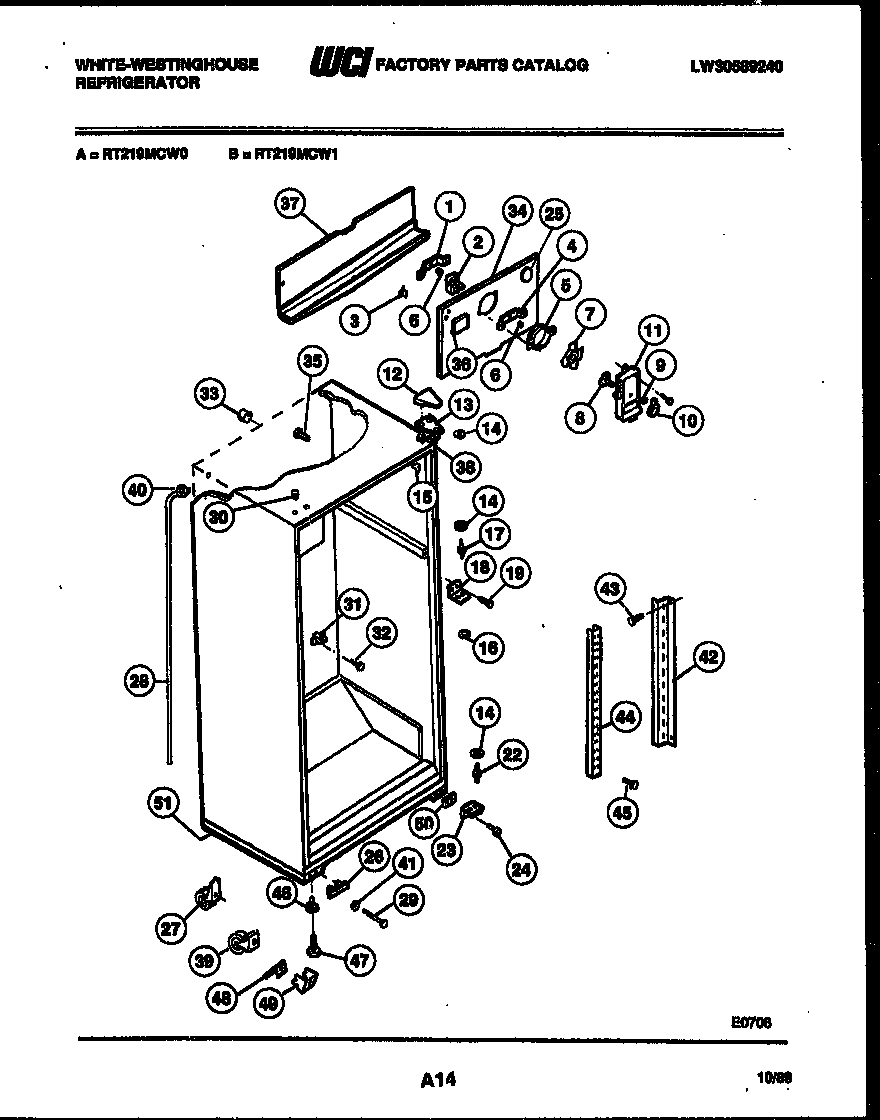

RT219MCW1 03 – CABINET PARTS

Products

Position	Product
*23334	WCI G174733
*23334	WCI G174734
*23334	TAPPING PLATE (2)
*23334	BUTTON, LINER
1	WCI 3205119
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI G185302
5	RING, FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3001331
9	NUT, DAMPER MOUNTING
10	WCI 3206381
11B	WCI 5303206545
11	WCI 5303206544
12	COVER HINGE, WHITE
13	BRACKET, TOP HINGE
14	WCI G103903
15	WCI 3202336
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
18	BRACKET, HINGE CENTER
19	WCI 08012258
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	HINGE-BRACKET-BOTTOM
24	241710601 Frigidaire Refrigerator Screw
25	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
26	WCI G166912
27	ROLLER, REAR (2)
27A	BOLT ROLLER (2)
28A	5304455651 Frigidaire Refrigerator Screw
28	WCI 3001458
29	BOLT-ROLLER (2)
30	WCI G174747–01
31	SPOUT DRAIN TUBE
32	PIN-PUSH
33	TUBE, INSULATION (2)
34B	NUT, ORIFICE (2)
34	WCI 08013665
34A	5304455650 Frigidaire Refrigerator Screw
35	WCI G163669
36	WCI 3018193
37	DRAIN TROUGH
38	WCI G183861
39	ROLLER FRONT, ADJUSTABLE (2)
40	RING, SEAL (NON-ILLUSTRATED)
41	WASHER
42	WCI 08000302
43	5304455852 Frigidaire Refrigerator Screw
44	CHANNEL-CENTER (NON-ILLUSTRATED)
45	WCI 08016568
46	NUT, ANCHOR (2)
47	LEG-LEVELING (2)
48	SPRING-ROLLER (2)
49	SUPPORT, ROLLER (2)
50	SHIM, HINGE
51	WCI G490004-02
